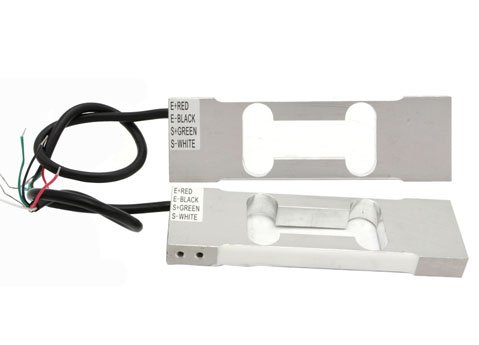

GPB132 Small scales 0.5kg 1kg 2kg 3kg load cell sensor
What is specifications of GPB132 Load cell?
| Specification | |
| Range | 0.3-5kg |
| Rated sensitive | 0.9±0.1 mV/V |
| Accuracy | C2 & C3 |
| Combined error | ±0.03 %FS & ±0.017 %FS |
| Creep | ±0.03%FS/30min |
| Zero balance | ±1.0%FS |
| Input resistance | 405 ±6Ω |
| Output resistance | 350 ±3Ω |
| Installation resistance | ≥5000MΩ (50Vdc) |
| Compensated temp. range | -10~+40°C |
| Operating temp. range | -30~+60°C |
| Temp. effect on zero | 0.02%FS/10°C |
| Temp. effect on span | 0.02%FS/10°C |
| Excitation(recommended) | 9~12Vdc |
| Recommended platform size | 120mm x 120mm |
| Safe overload | 120%FS |
| Ultimate overload | 150%FS |
| Cable specification | φ3.8mm, cable length:0.45m |

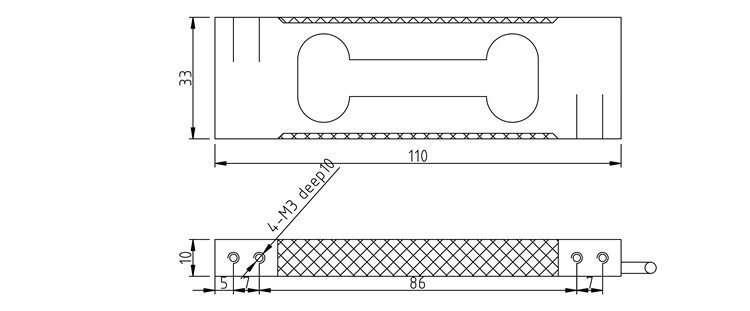

What is dimension of GPB132 Load cell?
