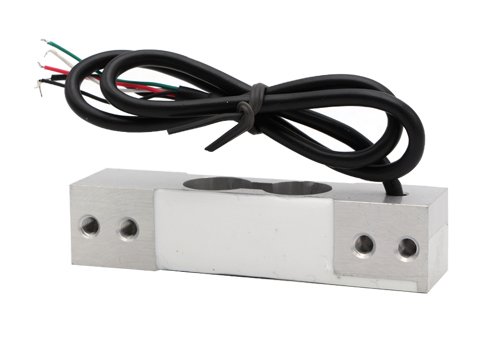

GPB130 Platform Scales Load Cell weight sensor
What is performance data of GPB130 load cell?
| Specification | |
| Range (KG): 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100 | Temp. effect on zero (%F.S/10℃): ±0.03 |
| Accuracy: C2 | Nonlinearity error (%F.S):±0.03 |
| Comprehensive error (%F.S): ±0.03 | Repeatability error (%F.S):±0.02 |
| Rated output (mV/ V): 2.0±0.2 | Hysteresis error (%F.S):±0.03 |
| Creep (%F.S/10min): ±0.02 | Compensated temp. range (℃): -10~+40 |
| Zero balance (%F.S): ±1.5 | Operation temp. range (℃): -20~+60 |
| Input resistance (Ω): 405±6 | Excitation voltage(V): 9-12(DC) |
| Output resistance (Ω): 350±3 | Safe overload (%F.S): 120 |
| Insulation resistance (MΩ): ≥5000 | Ultimate overload (%F.S): 150 |
| Temp. effect on span (%F.S/10℃): ±0.02 | Ingress protection: IP65 |
What is Dimension of GPB110 Load cell?
