Models

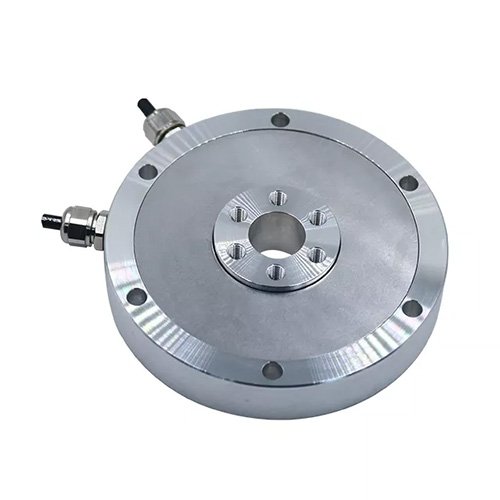

FA701
Features
Dimension：φ98mm，H=20mm
Interference Error：≤0.2%F.S.
Material：Aluminium Alloy/Alloy Steel

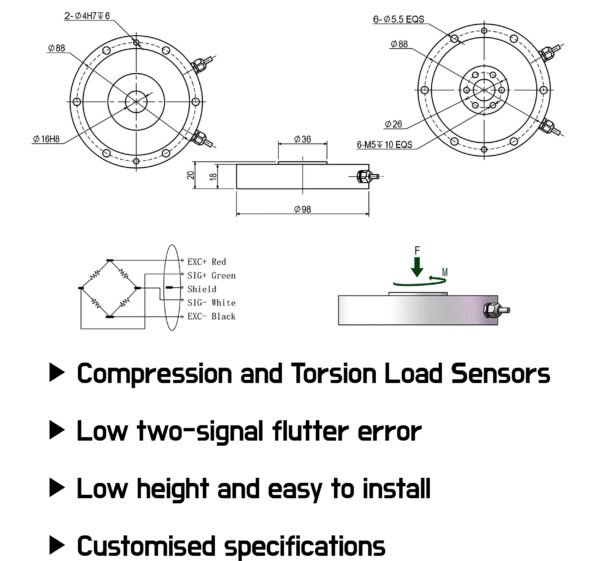

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | N | 20 / 30 / 50 / 100 / 200 / 500 / 1000 / 2000 |
| Sensitivity | mV/V | 1.0 ± 20% |
| Zero Balance | mV/V | ±2 |
| Creep | %F.S. | ≤ 0.2 |
| Non-linearity | %F.S. | ≤ 0.1 |
| Hysteresis | %F.S. | ≤ 0.1 |
| Repeatability | %F.S. | ≤ 0.15 |
| Input Impedance | Ω | 350 ± 10 |
| Output Impedance | Ω | 350 ± 5 |
| Temperature Effect on Output | %F.S./10℃ | 0.1 |
| Temperature Effect on Zero | %F.S./10℃ | 0.1 |
| Insulation Resistance | MΩ (100VDC) | ≥ 5000 |
| Recommended Excitation | V | 5 ~ 15 |
| Maximum Excitation | V | 20 |
| Compensated Temp. Range | ℃ | -10 ~ +40 |
| Operating Temp. Range | ℃ | -20 ~ +75 |
| Safe Overload | %F.S. | 150 |
| Ultimate Overload | %F.S. | 200 |
| Cable Size | mm | Φ4 × 3000 |
| Material | — | Aluminium Alloy / Alloy Steel |
