Models

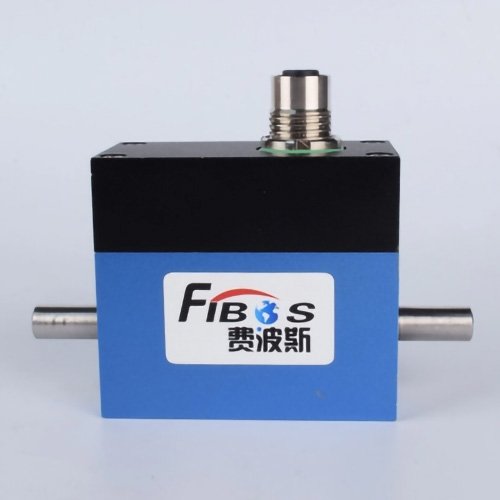

FA607A
Features
| Product Name | Force Torque Sensor | Capacity | 10,20,50,100,200,500t Or Customized |
|---|---|---|---|
| Creep(30min) | ≤0.15%F.S. Or Customized | Non-linearity | ≤0.15%F.S. Or Customized |
| Hysteresis | ≤0.15%F.S. Or Customized | Repeatability | ≤0.13%F.S. Or Customized |
Dimensions
맞춤 제작 상품
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Dynamic Torque Sensor |
| Capacity | t | 10, 20, 50, 100, 200, 500 or customized |
| Rated output | mV/V | 2.0 ±1% |
| Zero balance | %F.S. | ±1 |
| Creep (30 min) | %F.S. | ≤0.15 or customized |
| Non-linearity | %F.S. | ≤0.15 or customized |
| Hysteresis | %F.S. | ≤0.15 or customized |
| Repeatability | %F.S. | ≤0.13 or customized |
| Input impedance | Ω | 780 ±20 |
| Output impedance | Ω | 700 ±10 |
| Temp. effect on output | %F.S./10 ℃ | 0.02 |
| Temp. effect on zero | %F.S./10 ℃ | 0.02 |
| Insulation resistance | MΩ/100V (DC) | ≥5000 |
| Recommended excitation | V | 5~15 |
| Maximum excitation | V | 20 |
| Compensated temp range | ℃ | -10~40 |
| Operating temp range | ℃ | -10~70 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀6×5000mm or customized |
