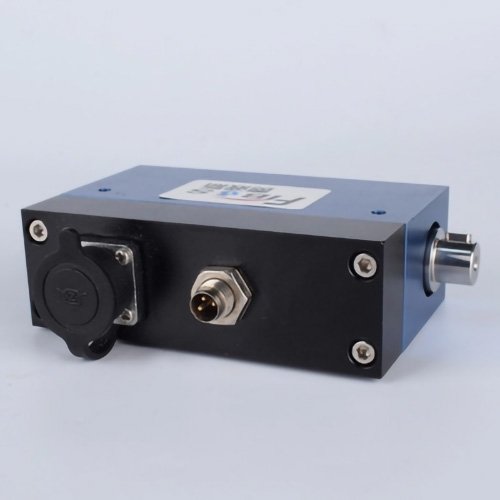

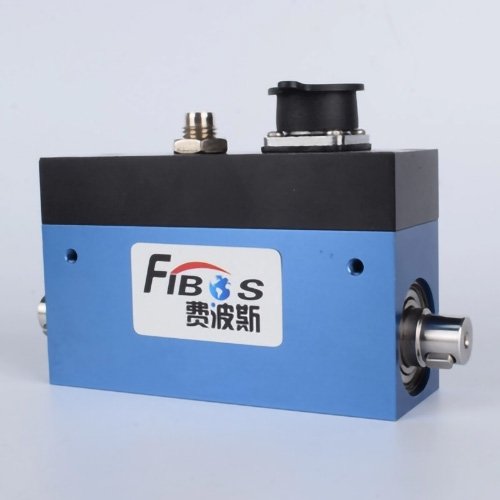

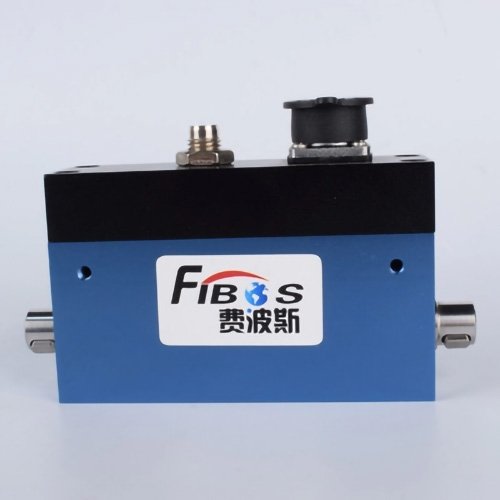

Models
FA605
Features
| Capacity | 0.1,0.2,0.3,0.5,1,2,3,5N.m | Rated Output | 1.0~1.5mV/V |
|---|---|---|---|
| Non-linearity | ≤0.2%F.S. | Repeatability | ≤0.1%F.S. |
| IP Class | IP66 | Product Name | Dynamic Torque Sensor |

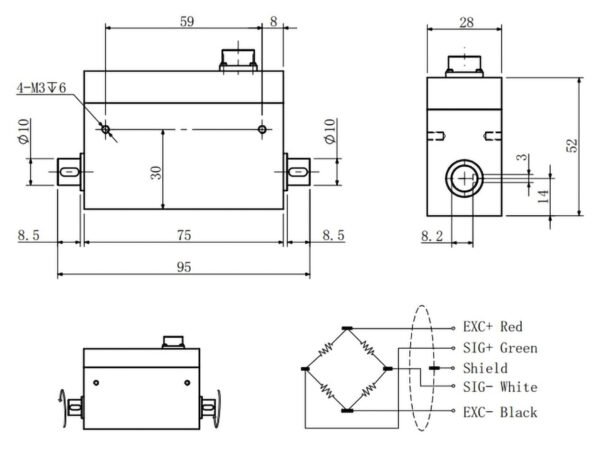

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Dynamic Torque Sensor |
| Capacity | t | 0.1, 0.2, 1, 2, 3, 5, 10, 15, 20, 30 |
| Rated output | mV/V | 2.0 ±1% |
| Zero balance | %F.S. | ±1 |
| Creep (30 min) | %F.S. | ≤0.05 |
| Non-linearity | %F.S. | ≤0.05 |
| Hysteresis | %F.S. | ≤0.05 |
| Repeatability | %F.S. | ≤0.03 |
| Input impedance | Ω | 780 ±20 |
| Output impedance | Ω | 700 ±10 |
| Temp. effect on output | %F.S./10 ℃ | 0.02 |
| Temp. effect on zero | %F.S./10 ℃ | 0.02 |
| Insulation resistance | MΩ/100V(DC) | ≥5000 |
| Recommended excitation | V | 5 ~ 15 |
| Maximum excitation | V | 20 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -10 ~ 70 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 200 |
| Cable size | – | ⌀6 × 5000 mm |
