Models

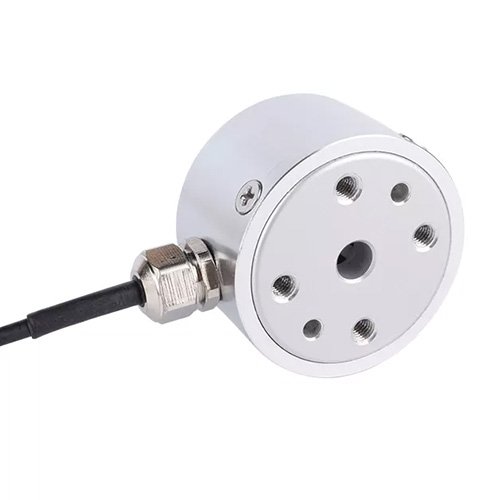

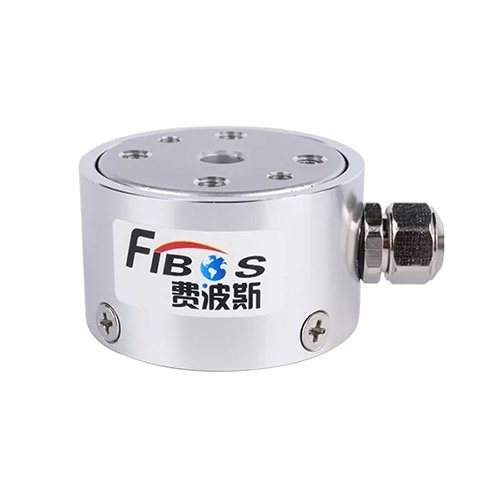

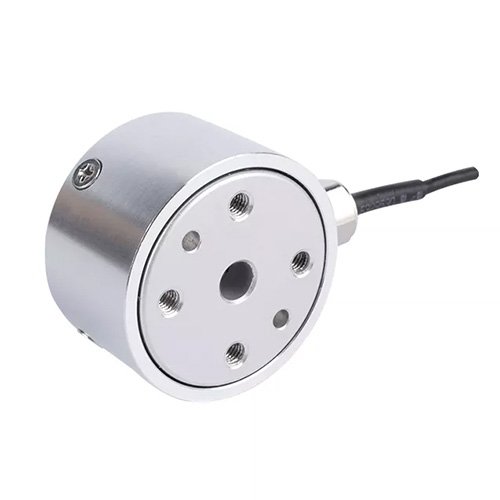

FA602
Features
Dimension：φ41.2mm；L=50；H=25mm
Accuracy：≤0.2%F.S.
Material：Stainless Steel/Aluminium Alloy

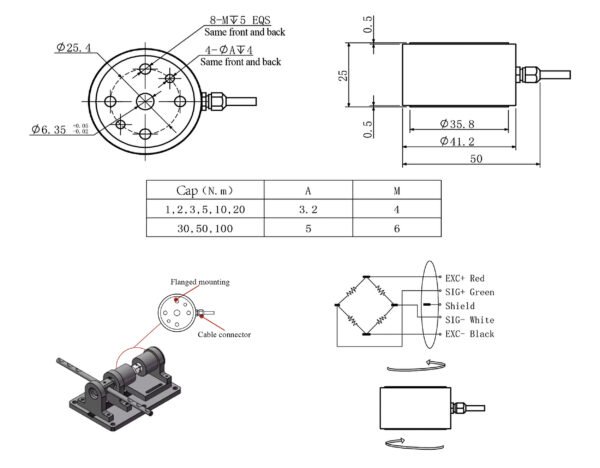

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity | N·m | 1, 2, 3, 5, 10, 20, 30, 50, 100 |
| Sensitivity | mV/V | 1.5 ±10% |
| Zero Balance | mV/V | ±0.02 |
| Creep (30min) | %F.S. | ≤0.2 |
| Non-linearity | %F.S. | ≤0.2 |
| Hysteresis | %F.S. | ≤0.3 |
| Repeatability | %F.S. | ≤0.1 |
| Input Impedance | Ω | 350 ±5 |
| Output Impedance | Ω | 350 ±5 |
| Temp. Effect on Output | %F.S./10℃ | 0.1 |
| Temp. Effect on Zero | %F.S./10℃ | 0.1 |
| Insulation Resistance | MΩ @ 100VDC | ≥5000 |
| Recommended Excitation | V | 5 ~ 15 |
| Maximum Excitation | V | 20 |
| Compensated Temp. Range | ℃ | -10 ~ +60 |
| Operating Temp. Range | ℃ | -20 ~ +80 |
| Safe Overload | %F.S. | 120 |
| Ultimate Overload | %F.S. | 150 |
| Cable Size | mm | Φ3 × 3000 |
| Material | – | Stainless Steel / Aluminium Alloy |
