DYLF-103S1 Compression Type Load Cell
Special features
- Stainless steel construction
- capacities from 0.5t to 100t
- Complies with OIML R60 regulations up to 3000d divisions
- +ermetically sealed I368; I369.
- Low profile and small deflection
- Applications: Container and tank weighing; and Industrial batching control system
Option
- 9arious cable lengths
- Explosion-proof versions

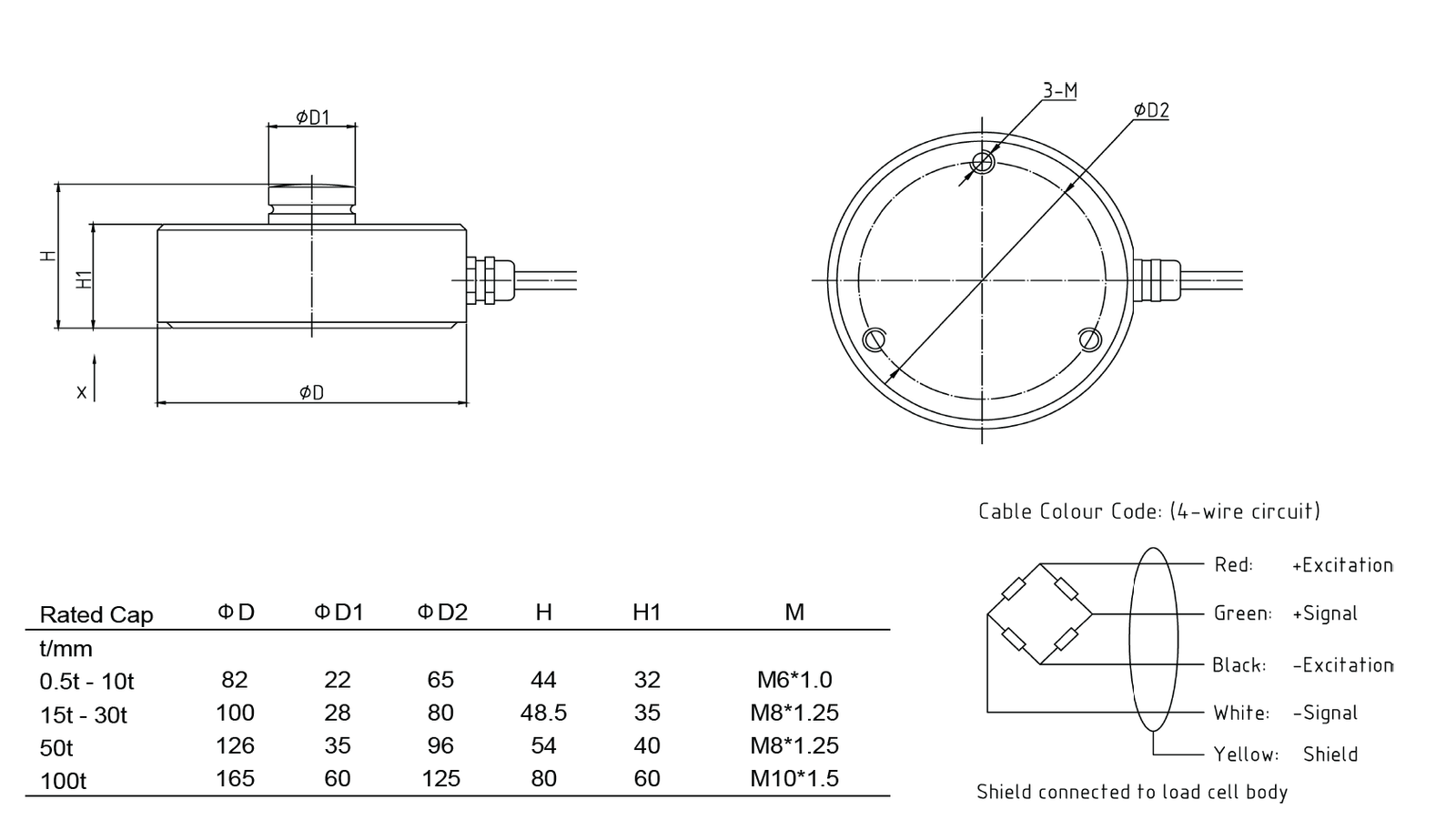

Dimensions

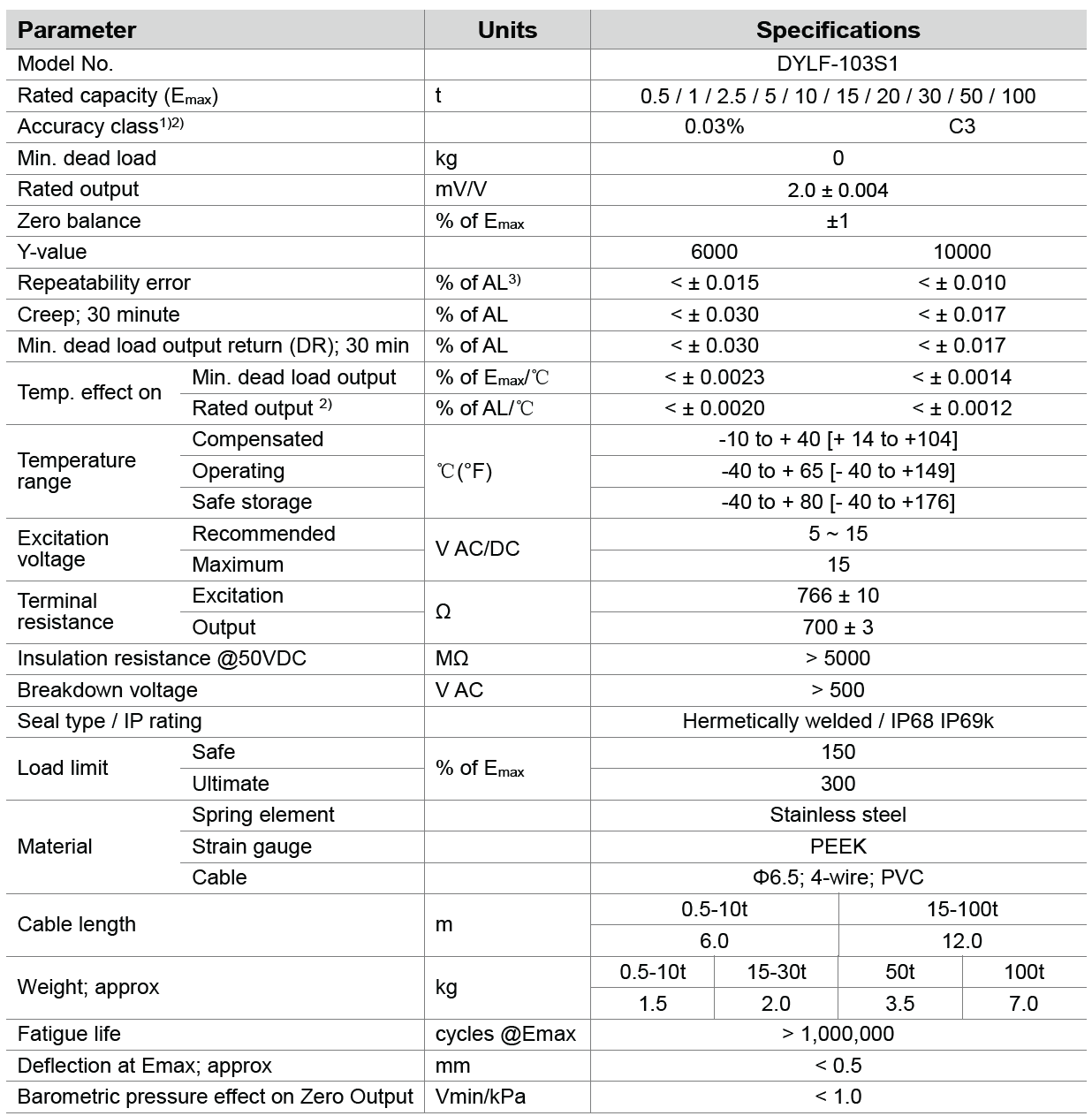

Notes:
1) Error due to combined effect of non-linearity and hysteresis.
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL = Applied Load.
