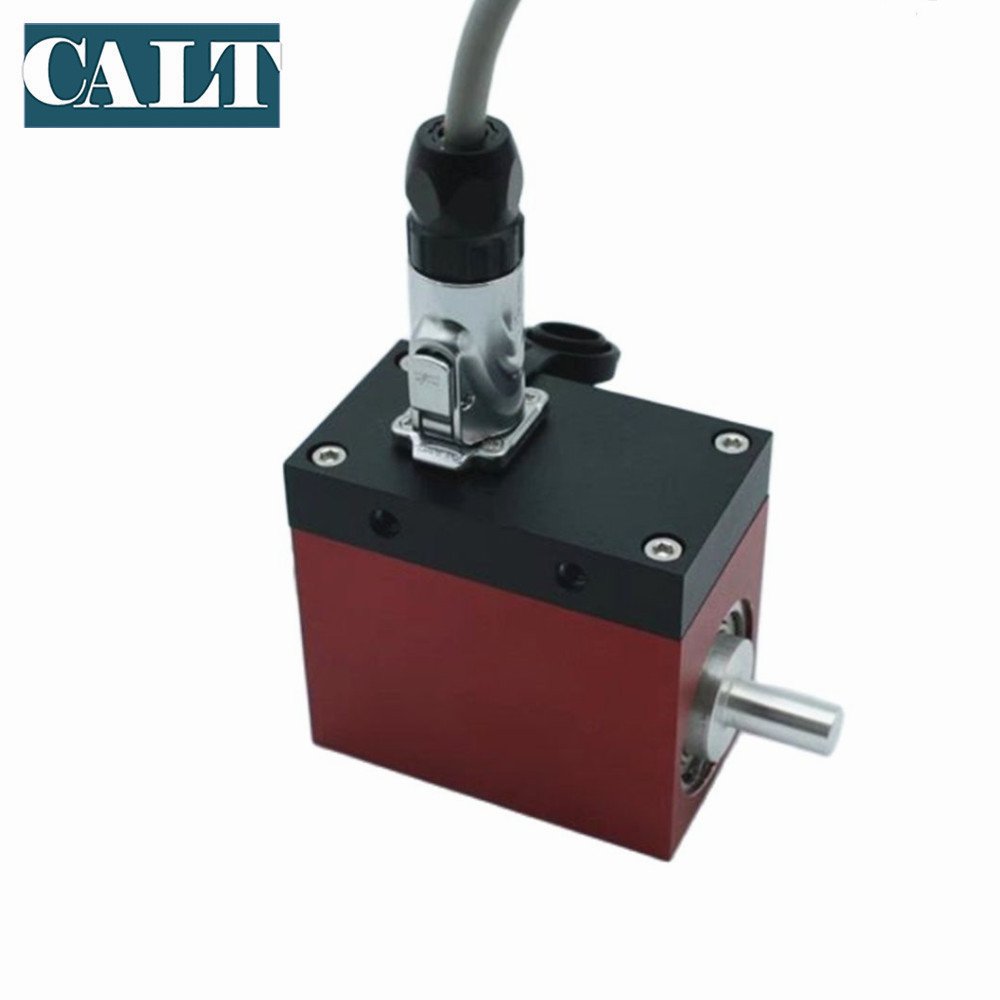

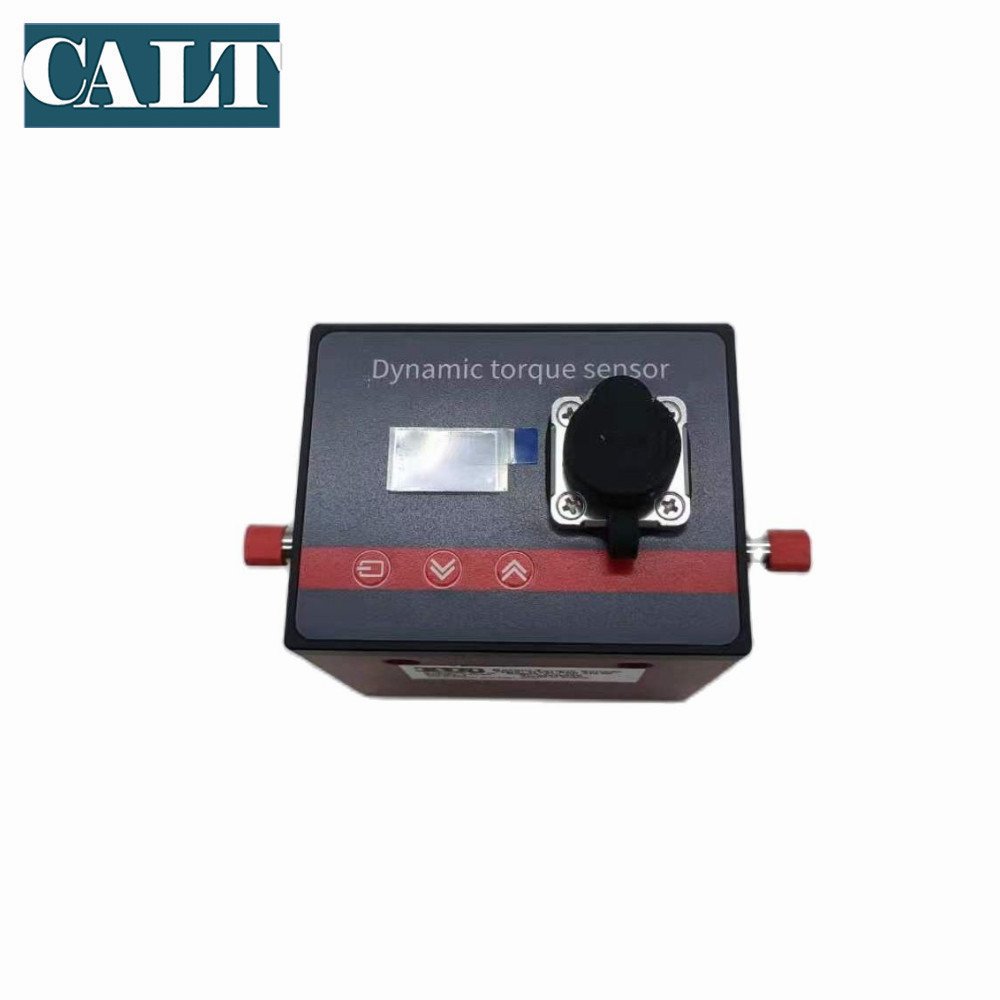

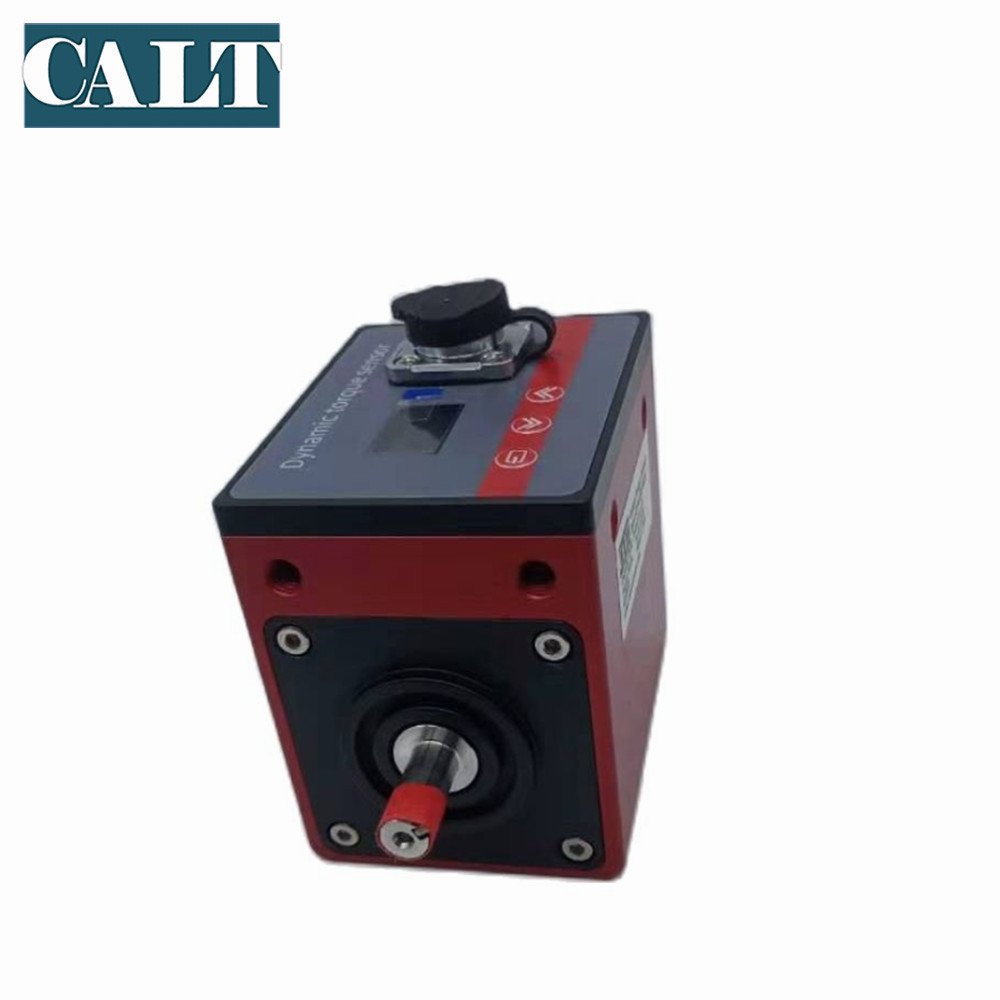

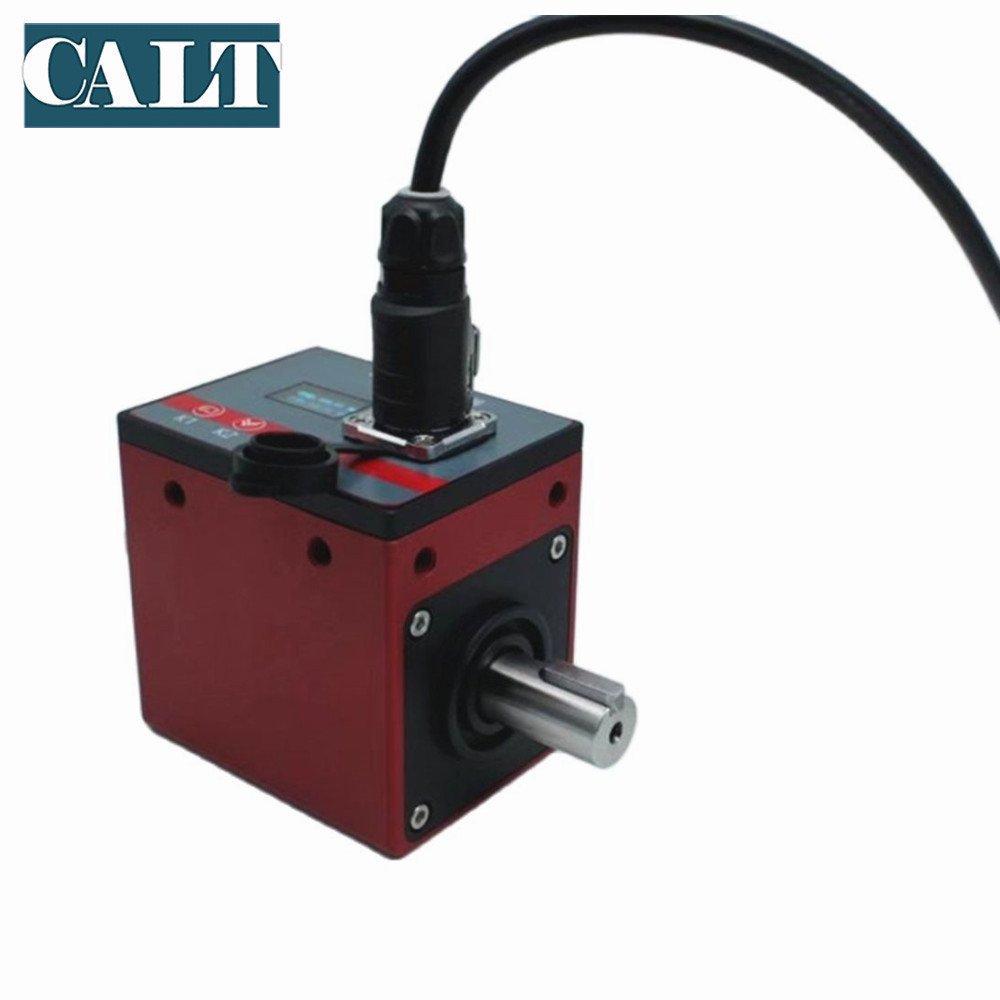

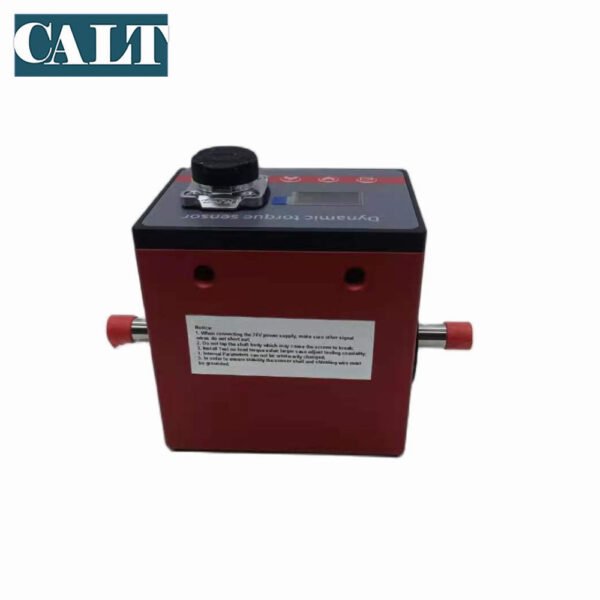

Rotary Torque Sensors DYN-200
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.

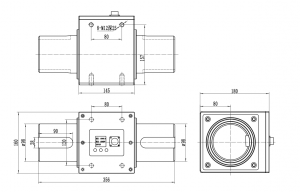

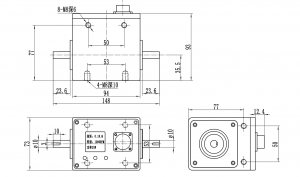

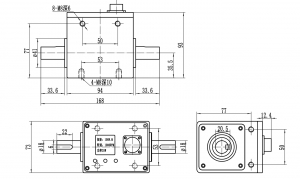

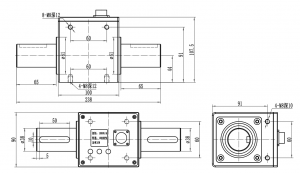

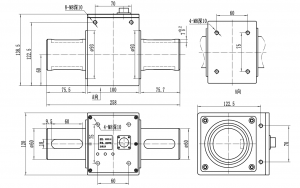

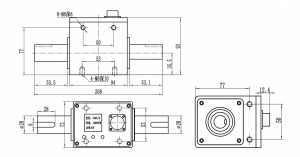

Dimension(mm)
Capacity (N.m) :0.1 0.3 0.5 1 2 5
Capacity (N.m) 10 20 30 50 100
Capacity (N.m) 200 300
Capacity (N.m) 500 600 800
Capacity (N.m) 1000 2000 3000 5000
Capacity (N.m) 10000 20000

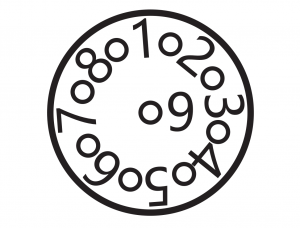

Wiring diagram
| Pin number | Cable color | Signal name |
| 1 | Red | PWR(+24) |
| 2 | black | PWR(0V) |
| 3 | green | SIG OUT (±5V OR±10VOR RS485 ) |
| 4 | White | SIG GND |
| 5 | Yellow | RS485 A |
| 6 | Blue | RS485 B |
| 7 | Orange | RPM+ |
| 8 | Ash | RPM- |
| Shielded wire | Braided wire | The shielded wire is not connected to the sensor frame |

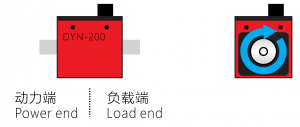

Force diagram
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.01 | |
| Nonlinear | ≤%F·S | ±0.5 | Operating temperature range | ℃ | -10℃～+50℃ 0-85%RH |
| Hysteresis | ≤%F·S | ±0.5 | Input resistance | Ω | |
| Repeatability | ≤%F·S | ±0.2 | Output Resistance | Ω | |
| Creep | ≤%F·S/30min | ±0.03 | Safe Overload | ≤%F·S | 200% F·S |
| Zero output | ≤%F·S | ±2 | Load resistance | MΩ | ≥2KΩ |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.01 | Operating Temp Range | V | DC24V 0.2A |
