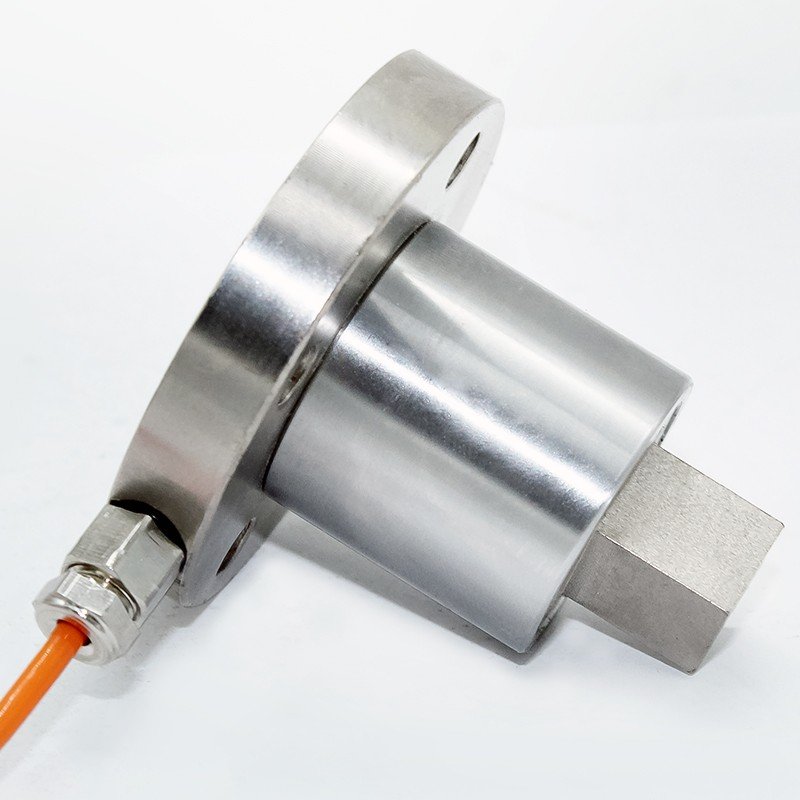

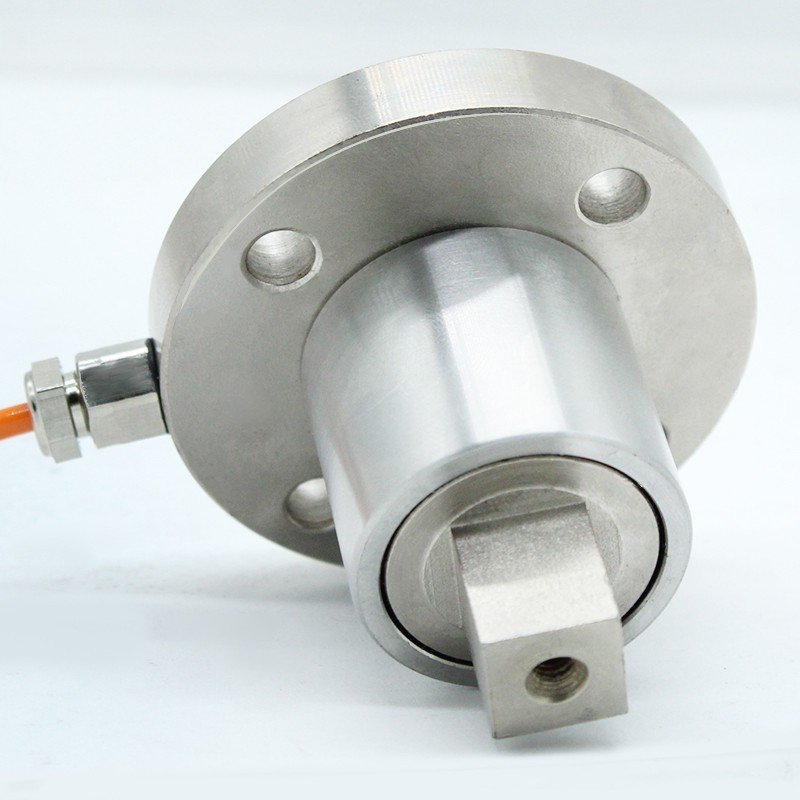

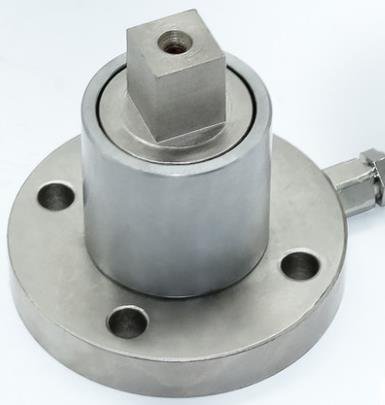

Reaction torque sensor DYJN-103 series
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.

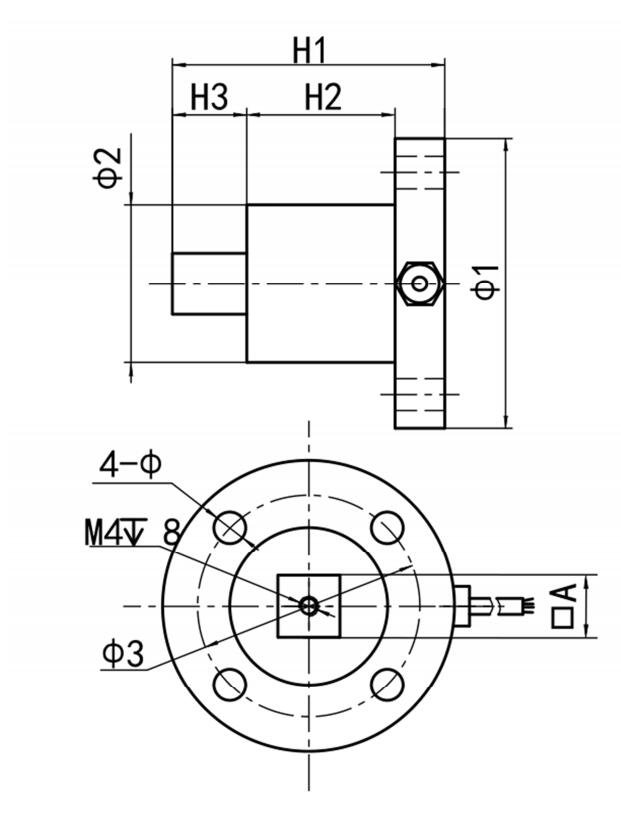

Dimension(mm)
| Capacity(N.M) | A | H1 | H2 | H3 | Φ1 | Φ2 | Φ3 | Φ |
| 2-200 | 12.5 | 55 | 30 | 15 | 59 | 32 | 45 | 6.5 |
| 300-1500 | 25.4 | 75 | 40 | 24 | 68 | 40 | 55 | 8.5 |
| 2000-3000 | 25.4 | 85 | 44 | 24 | 98 | 56 | 80 | 13 |
Wiring diagram

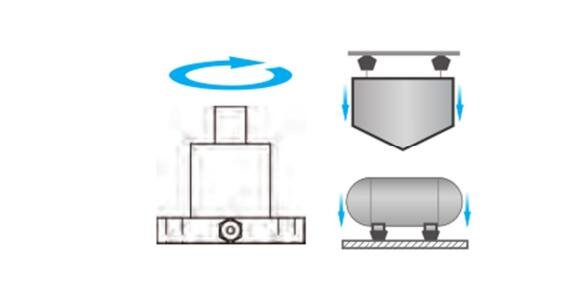

Force diagram
Technical parameter
| Capacity | 0-3000N.m | Material | Alloy Steel |
| Rated Output | 1.0-2.0mV/V | Impedance | 350/700Ω |
| Zero Balance | ±2% F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 0.3% F.S. | Recommended Excitation | 5-15V |
| Hysteresis | 0.1% F.S. | Operating Temp range | -20~80℃ |
| Repeatability | 0.1% F.S. | Safe Load Limit | 120% |
| Creep (30 Min) | 0.1% F.S. | Ultimate Load Limit | 150% |
| Temp Effect on output | 0.05% F.S./10℃ | Cable Specifications | Φ3*3m |
| Temp Effect on Zero | 0.05% F.S. /10℃ | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS Optional |
