MRT Mini Rotary Torque Transducer
MRT Mini Rotary Torque Transducer
Features and applications
1. Resistance strain is an integrated product composed of sensitive components and integrated circuits, High precision, stable and reliable performance.
2. Low-range torque measurement, easy to install and use.
3. Double flange connection.
4. Suitable for static torque measurement.
5. The torque sensor adopts German technology and production equipment and advanced testing equipment.
Technical Parameters of mini rotary torque transducer
| parameter | Technical index | parameter | Technical index | |
| range | 0～0.1, 0.2, 0.5, 1, 2, 3, 5, 10Nm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Aluminum, stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application Of MRT mini rotary torque transducer

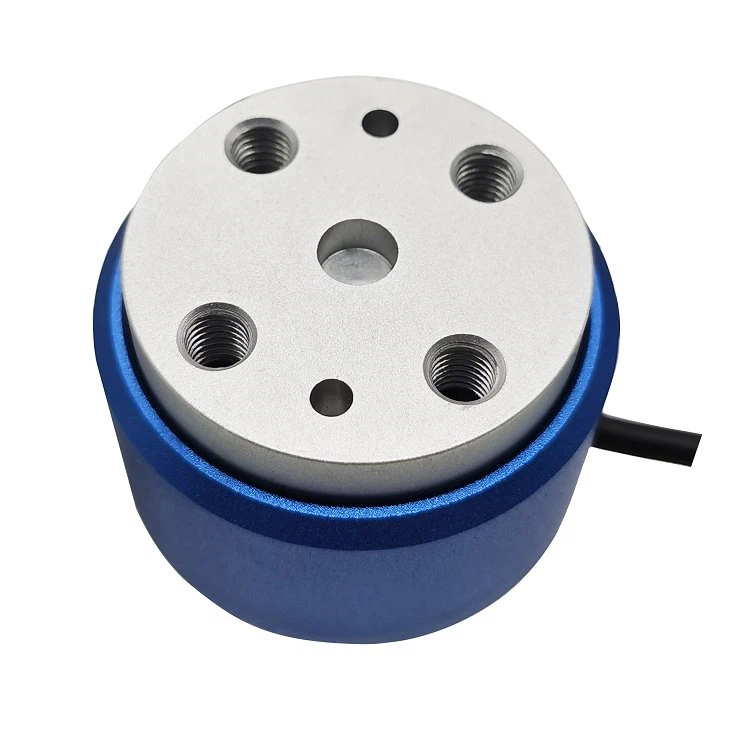

This static torque sensor is made of high-quality aluminum alloy/stainless steel, small column structure design, small size, light weight, easy to install, there are 4 M4 screw holes at each end, one end is fixed, the other end measures the torque, widely used in testing machines, torque wrenches, valves, bearings and other related torque testing equipment with a rotation angle less than 360 degrees.
