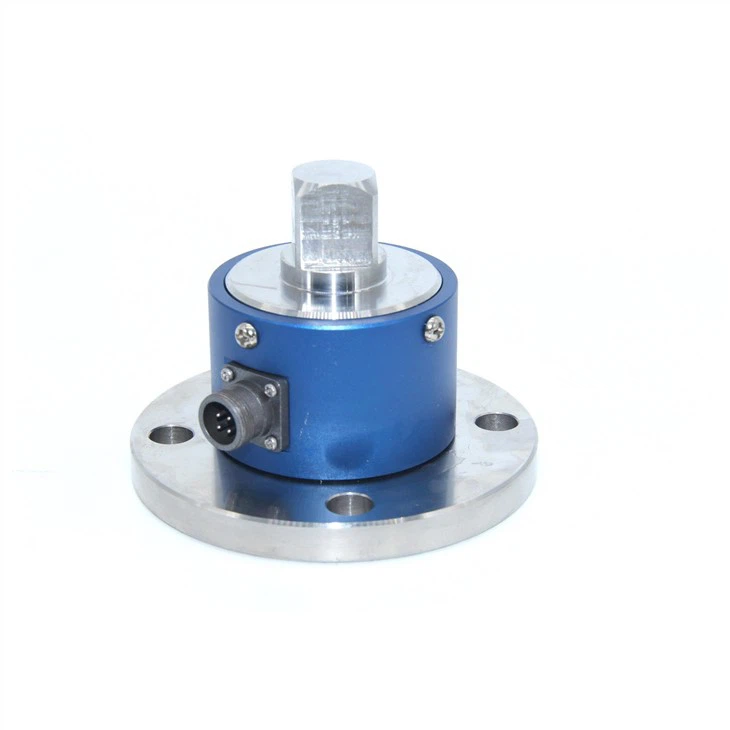

BRG632 Shaft Torque Transducer
Product Overview
The shaft torque transducer is an instrument that converts the strain generated by the torsional torque into an electrical signal that is linearly related to it according to the principle of resistance strain. This product has mature manufacturing technology, complete varieties, wide range, high precision, and stable and reliable performance.
Features and applications
1. Resistance strain is an integrated product composed of sensitive components and integrated circuits product, high precision, stable and reliable performance, low and medium range torque measurement, easy to install and use.
2. Static torque measurement. One end is the outer square key connection, and the other end is the flange connection.
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0～20, 50, 100, 200, 300, 500Nm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application
1. Detection of output torque and power of rotating power equipment such as AC and DC motors, servo motors, stepping motors, engines, and internal combustion engines;
2. Detection of the torque and power of fans, water pumps, gearboxes, and torque wrenches;
3. Detection of torque and power in railway locomotives, automobiles, tractors, airplanes, ships, and mining machinery;
4. Control and detection of automobile engine, diesel engine, steering gear, overall rigid torsion of body and other parts processing;
5. It can be used to detect the torque and power in the sewage treatment system;
6. It can be used to manufacture viscometers;
7. It can be used in laboratories, testing departments, production monitoring and quality control;
8. Electric manual actuator, automatic opening and closing control of various valves.
9. Control and monitoring of oil extraction and refining process, monitoring of thermal and hydroelectric power generation equipment, ore screening control, and monitoring of wind power generation equipment.
10. Torque life test of various materials.
