BRG622 Strain Gauge Torque Meter
Product Information

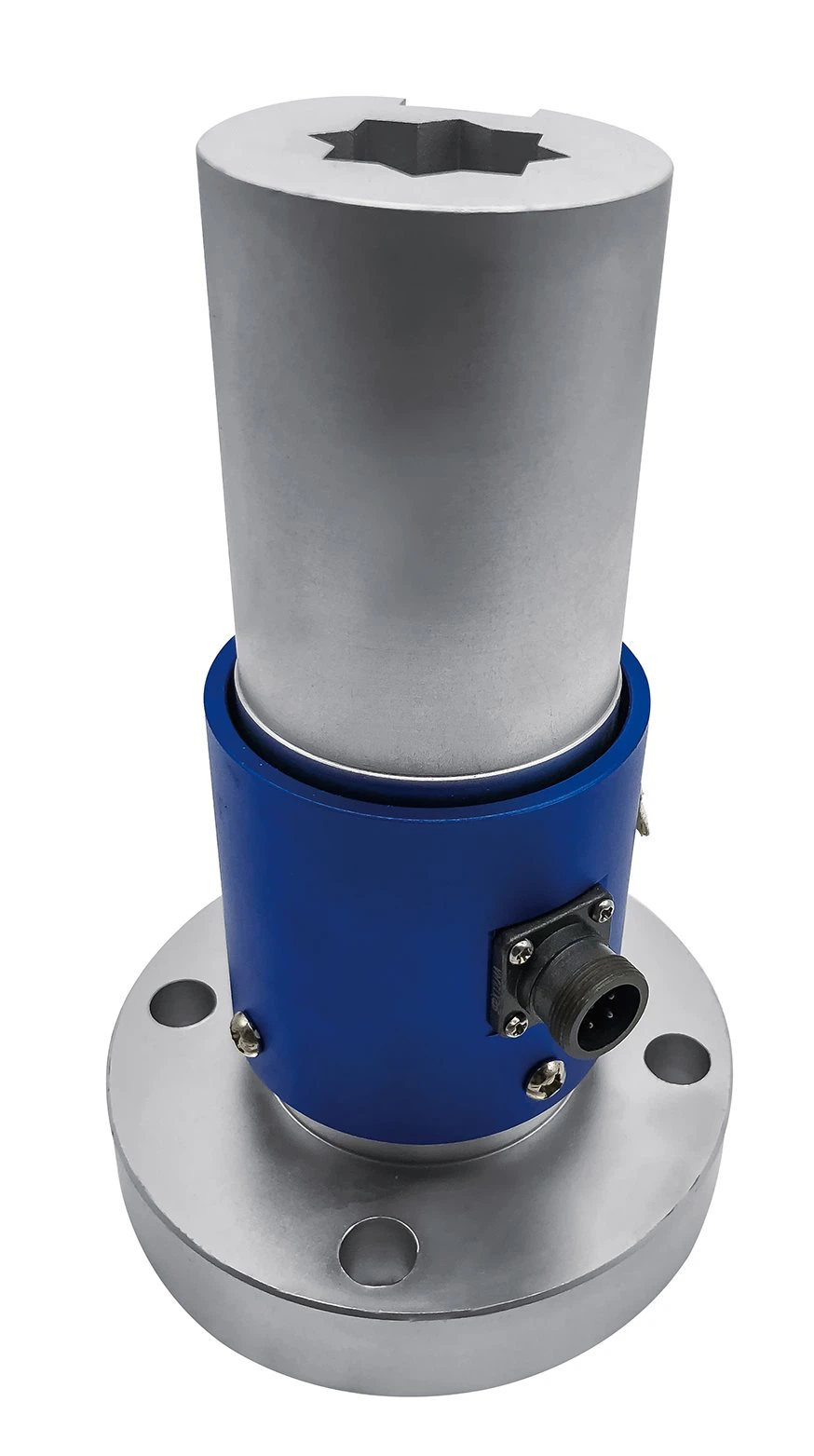

Strain gauge torque meter is an integrated product consisting of sensitive components and integrated circuits. It has high precision, stable and reliable performance and wide measurement range. It can accept a wide range of torque measurements. One end is connected by key (or inner square key), and the other end is connected by flange, which is easy to install and use.
Features
1.The resistance strain is an integrated product composed of sensitive components and integrated circuits, with high precision, stable and reliable performance, and a wide measurement range;
2. Large range torque measurement, easy to install and use;
3. Static torque measurement. One end is a key (or inner square key) connection, and one end is a flange connection
Technical Parameters
| parameter | Technical index | parameter | Technical index | |
| range | 0-1, 2, 5, 10KNm | Response frequency | 100μS | |
| Sensitivity | 1.5±10% mV / V | Insulation resistance | ≥5000MΩ/ 100VDC | |
| Zero output | ±1% F.S. | Excitation voltage | 10VDC(9-15VDC) | |
| Non-linear | ±0.1, 0.3% F.S. | Temperature compensation range | -10 ~ 60℃ | |
| Hysteresis | ≤±0.05% F.S. | working temperature | -20 ~ 65℃ | |
| Repeatability | ≤±0.05% F.S | Safety overload | 150% F.S. | |
| Creep | ≤±0.03% F.S/30min | Extreme overload | 200% F.S. | |
| Temperature sensitivity drift | 0.03% F.S. / 10℃ | Cable size | Ø5.2×3m | |
| Zero temperature drift | 0.03% F.S. / 10℃ | Electrical connections | red/E+, black/E-, green/S+, white/S- | |
| Input resistance | 350, 750±10Ω | Material | Aluminum, stainless steel or alloy steel | |
| output resistance | 350, 700±5Ω | other request | customizable |
Dimension (mm)
Application of Strain Gauge Torque Meter
● Monitoring of production and assembly processes
● Process measuring and control technology
● Automotive industry
● Measuring and control devices
● Tooling engineering
● Special mechanical engineering
