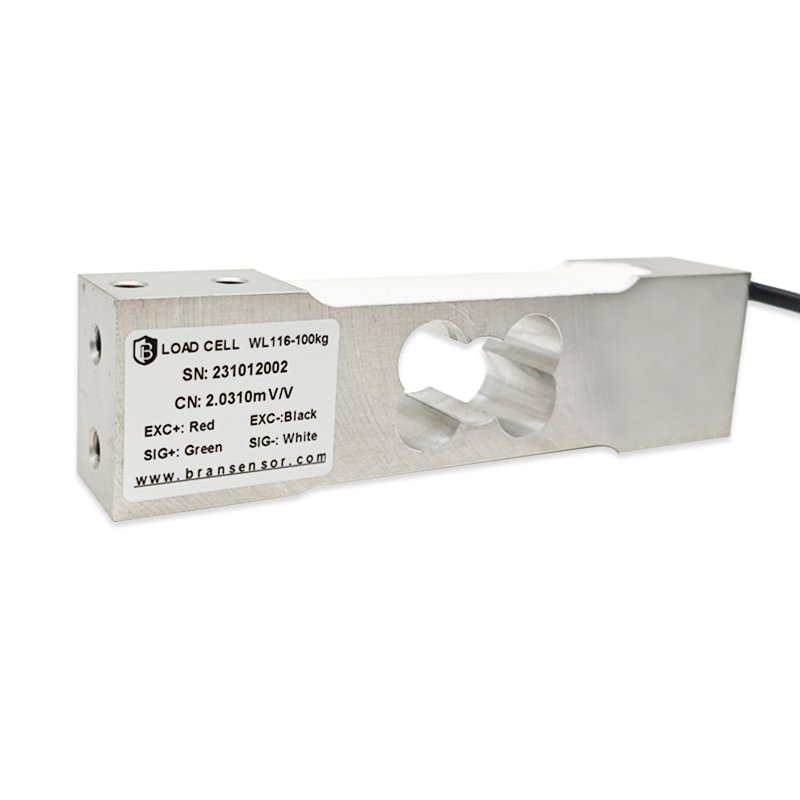

WL-116 C3/C4 Load Cells (5kg-200kg) for Parallel Weighing in Food, Chemical & Logistics Applications
Features & Applications
-
Single Point Load Cells – Robust and reliable design for accurate measurements
-
Wide Capacity Range – Supports loads from 5kg to 200kg for versatile applications
-
High Precision (C3/C4 Optional) – Ensures consistent and accurate weighing results
-
Parallel Use Capability – Multiple units can be used together for synchronized measurements
-
Industrial-Grade Performance – Ideal for food, packaging, chemical, trade, and agricultural industries
-
Smart Production Integration – Compatible with intelligent warehousing, belt scales, and canning systems
-
Consistent Output – Maintains reliable performance for long-term use in demanding environments
Specifications
| Capacity | 5kg/10kg/20kg/30kg/50kg/100kg/200kg |
| Combined Error | 0.01%F S. |
| Non-linearity | 0.017%F S |
| Repeatability | 0.01%F S. |
| Rated Output | 2.0±0.05mV/V |
| Zero Balance | ±0.2mV/V |
| Insulation Resistance | ≧5000Ω/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Nominal Displacement | <0.4mm |
| Safe Overload | 150%F.S |
| Protection Class | IP68 (Customizable) |
| Operation Temp | -30~70°C |
| Cable Size | Ф5.4x4000mm(Customizable） |
Dimensions (mm)
Load direction
Wiring code
