Features: surface anodized treatment, IP65 waterproof and dustproof
Application: Small aircraft propeller force measurement, robot Biaxial force measuring equipment
| Accuracy | ±0.1%F.S |
|---|---|
| Capacity | X=120N, 160N, 450N Y =55N, 80N, 270N |
| Certificate | RoHS, CE |
| Creep | ±0.1%F.S/2Min |
| Material | Aluminum alloy |

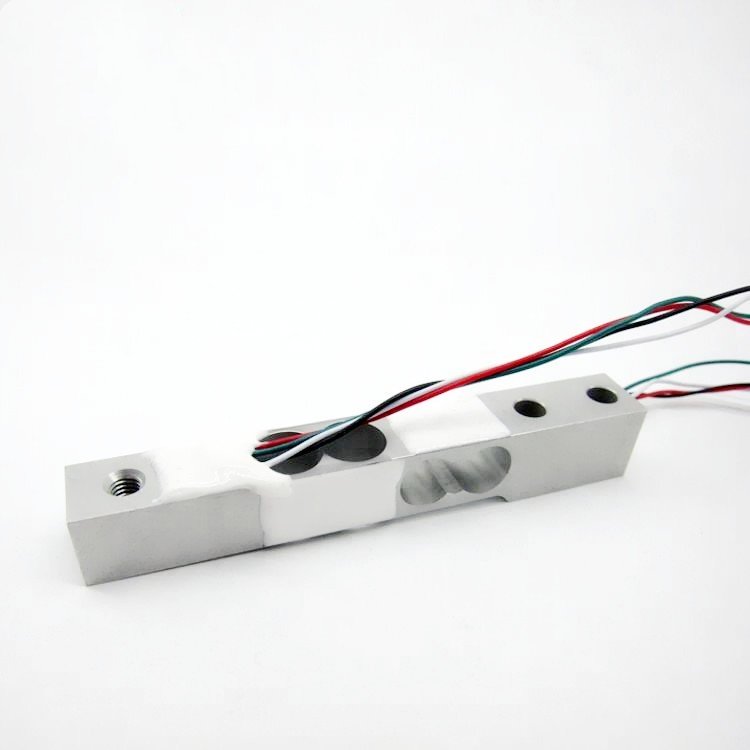

| Model | AM34G |
| Sensitivity | X=1.5mV/V±0.3 Y=1.5mV/V±0.3 |
| Size | 12.7*12.7*95 |
Features:
1. Aluminum alloy with IP65 waterproof.
2. Hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.
3. Suitable for electronic top scale, floor scale and other weighing equipment.
4. Dual-axis bi-axial load cell two axis load cell sensor
5. Customized load capacity support, please contact sales, contact our sales
Contact us if you need the Datasheet PDF.
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS82D is a model from FARS82 which belongs to our brand FIBOS FARS-Series, FARS82D can be used to measure six axis force Fx,Fy are both 500N, Fz is 700N, and Mx,My,Mz are all 18Nm, its weight is 0.36kg, it’s heavier than FARS82.
Fx,Fy=20kN,Fz=100kN. Stainless steel Multi-axis Force Sensor FA731 is a model of our brand FIBOS FA7-Series, it belongs to FA731 which is in our three- axis force sensor.
Fx Fy 400N Fz 800N Mx My Mz 30Nm Hard Aluminum Alloy Six Axis Force Sensor FARS94D is a model of our brand FIBOS Six Axis Force Sensor category, it belongs to FARS94 which is in FARS-Series, Six Axis Force Sensor FARS94D can be used to measure six axis force, its Fx,Fy force are both 400N, its Fz force is 800N, its Mx,My,Mz force are the same 30N.m.
F-XYZ 500N M-XYZ 12Nm Aviation Plug Stainless Steel Six Axis Force Sensor FARS53 is a model of our brand FIBOS FARS-Series, it can be used to measure 6 axis force Fx,Fy and Fz are 500N, Mx,My and Mz are 12N.m, FARS53 its plug is Aviation plug and its material is Stainless steel, just like our other six-axis force sensors, it can centainly be used to measure both force and torque.
XYZ 10-50kg3 Stainless Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis,Z axis force range are the same 10kg,20kg,30kg and 50kg capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S., its Hysteresis ≤0.2%F.S..
XYZ 5t Stainless Steel Customized Non-Standard 3 Axis Force Sensor FA704D is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA704D belongs to FA704, it can be used to measure three-axis force, its X axis,Y axis and Z axis force are the same 5t capacity, its Rated output range is ≈1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
Fx Fy 400N Fz 500N Mx My Mz 12Nm IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS75C is a model of our brand FIBOS FARS-Series, it belongs to FARS75. FARS75C can be used to measure 6 axis force Fx and Fy are 400N, Fz is 500N, Mx,My and Mz are 12Nm, its Diameter is 75mm and Height is 33.5mm, its weight is 0.36kg.
Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36A is a model from FARS36 which is in six-axis force sensor category. FARS36A can measure 6-axis force Fx,Fy and Fz are 30N, Mx,My and Mz are 1.5Nm, its Diameter is 36mm and Height is 20mm, its weight is 0.04kg.
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75D is a model of our brand FIBOS FARS-Series, it belongs to FARS75 with higher height 33.5mm but same diameter 75mm, FARS75D can be used to measure 6 axis force Fx and Fy are 500N, Fz is 700N, Mx,My and Mz are 18Nm, its weight is 0.36kg.
Fx Fy Fz Each 150N Mx My Mz Each 5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS46B is a model of our brand FIBOS FARS-Series, it belongs to FARS46. FARS46B can be used to measure multi-axis force Fx,Fy and Fz are the same 150N, Mx,My and Mz are all 5Nm, its Diameter is 46mm and Height is 19.4mm, its weight is 0.05kg.
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B is a model of our brand FIBOS FARS-Series, it belongs to FARS36. FARS36B can measure 6 axis force Fx,Fy and Fz are the same 50N, Mx,My and Mz are 2Nm, its Diameter is 30mm and Height is 20mm, its weight is 0.05kg.
Suitable for the measurement of multi-directional forces in robot arms, robots, aircraft, medical technology, shipbuilding, etc.
