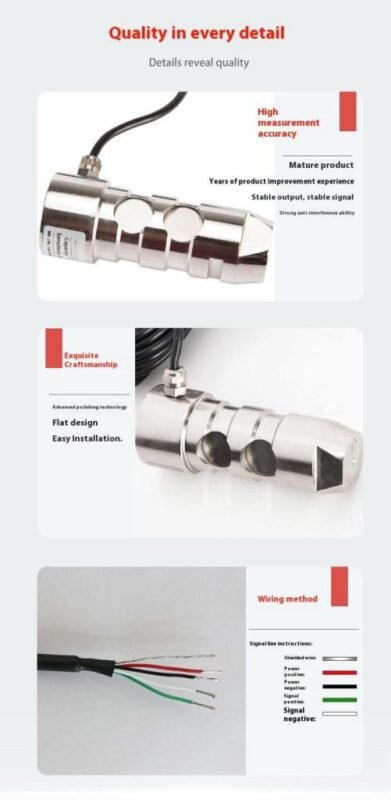

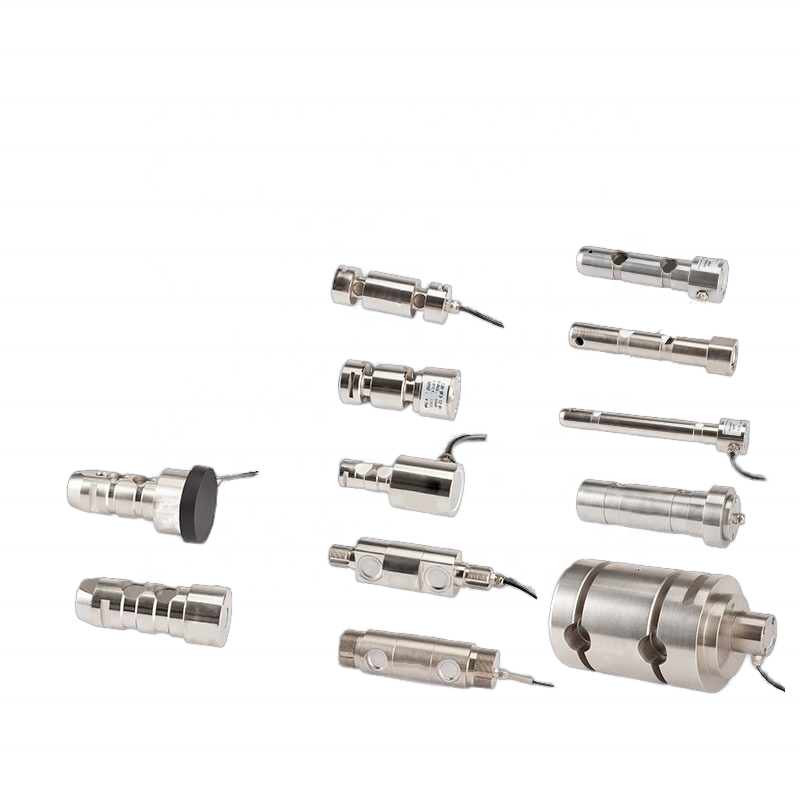

Shaft pin load cell – ASP56A
Description
1. Rated Force Range: 10-100kN, customized
2. Cable length: 3m, Customized
3. OEM: Acceptable
4. Certification: ISO9001
F-XYZ 500N M-XYZ 12Nm Aviation Plug Stainless Steel Six Axis Force Sensor FARS53 is a model of our brand FIBOS FARS-Series, it can be used to measure 6 axis force Fx,Fy and Fz are 500N, Mx,My and Mz are 12N.m, FARS53 its plug is Aviation plug and its material is Stainless steel, just like our other six-axis force sensors, it can centainly be used to measure both force and torque.
Fx Fy 500N Fz 700N Mx My Mz 18Nm Hard Aluminum Alloy Six Axis Force Sensor FARS75D is a model of our brand FIBOS FARS-Series, it belongs to FARS75 with higher height 33.5mm but same diameter 75mm, FARS75D can be used to measure 6 axis force Fx and Fy are 500N, Fz is 700N, Mx,My and Mz are 18Nm, its weight is 0.36kg.
XYZ 10,50,100,500kg Or Customized 3 Axis Force Sensor FA730 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA730 can be used to measure 3 axis force, its X axis,Y axis and Z axis force range are all the same 10kg,50kg,100kg and 500kg or customized capacity, its Creep(30min),Hysteresis and Repeatability all the same ≤0.02%F.S. or can be customized, its Hysteresis ≤0.02%F.S. or can also be customized.
0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensors FARS75A is a model of our brand FIBOS FARS-Series, it belongs to 6-axis force sensor FARS75. FARS75A can be used to measure six-axis force Fx,Fy and Fz are 50N, Mx,My and Mz are all 2Nm, its Diameter is 75mm and Height is 31.5mm, its weight is 0.26kg.
XYZ 10-50kg3 Stainless Steel 3 Axis Force Sensor FA742 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA742 can be used to measure 3-axis force, its X axis,Y axis,Z axis force range are the same 10kg,20kg,30kg and 50kg capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.1%F.S., its Hysteresis ≤0.2%F.S..
Fx Fy Fz Each 80N Mx My Mz Each 3Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36C is a model of our brand FIBOS FARS-Series, it belongs to FARS36 which is in our six axis force category. FARS36C can be used to measure 6-axis force Fx,Fy and Fz are same 80N, Mx,My and Mz are all the same 3Nm.
Fibos force sensor multiple range load cell FA704C can measure forces in three vertical axes at the same time. The 3-axis load cell is available in a capacity range from 50N to 5000N for all three axes. The three-dimensional force sensor is based on the strain transducer and adopts the resistance strain transducer principle. The 30mm height of this multi-axis load cell allows it to be used in many situations
Fx Fy Fz Each 50N Mx My Mz Each 2Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36B is a model of our brand FIBOS FARS-Series, it belongs to FARS36. FARS36B can measure 6 axis force Fx,Fy and Fz are the same 50N, Mx,My and Mz are 2Nm, its Diameter is 30mm and Height is 20mm, its weight is 0.05kg.
Fx Fy Fz 50N Mx My Mz 2Nm 0.1%F.S. Hard Aluminum Alloy Six Axis Force Sensor FARS62A is a model of Six Axis Force Sensor, it belongs to FARS62 in our brand FIBOS FARS-Series, it can be got to measure multiple axis load Fx,Fy,Fz are 50N, Mx,My,Mz are 2Nm, its weight is 0.12kg, its shape makes it also look like FARS62.
XYZ 0.5,1,3,5,10,30kN Or Customized 3 Axis Force Sensor FA731O belongs to FA731, 3 Axis Force Sensor FA731O can be used to measure three-axis force, its X axis,Y axis,Z axis force range all are same 0.5kN,1kN,3kN,5kN,10kN,30kN or customized capacity, its Creep(30min) and Repeatability both ≤0.08%F.S. or can be customized.
XYZ 50-300kg Stainless Steel 3 Axis Force Sensor FA728 is a model of our brand FIBOS FA7-Series, 3 Axis Force Sensor FA728 can be used to measure 3-axis force, its X axis,Y axis,Z axis force ranges the same from 50kg up to 300kg capacity, its Rated output range is 1.0±10%mV/V, and its Zero Balance range is ±1%mV/V.
Fx Fy Fz Each 30N Mx My Mz Each 1.5Nm 0.1%F.S. IP64 Hard Aluminum Alloy Six Axis Force Sensor FARS36A is a model from FARS36 which is in six-axis force sensor category. FARS36A can measure 6-axis force Fx,Fy and Fz are 30N, Mx,My and Mz are 1.5Nm, its Diameter is 36mm and Height is 20mm, its weight is 0.04kg.
