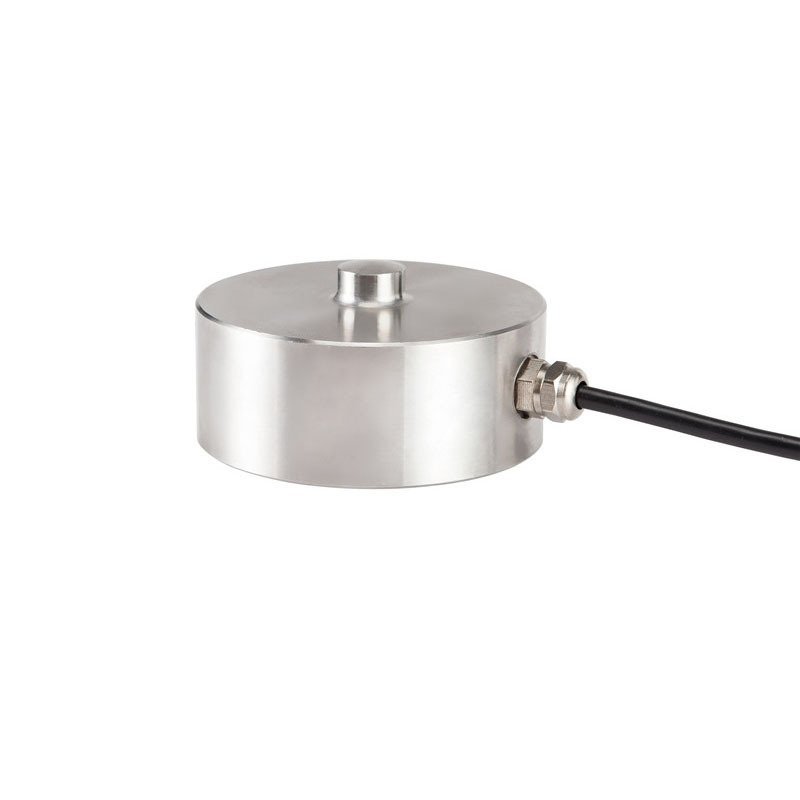

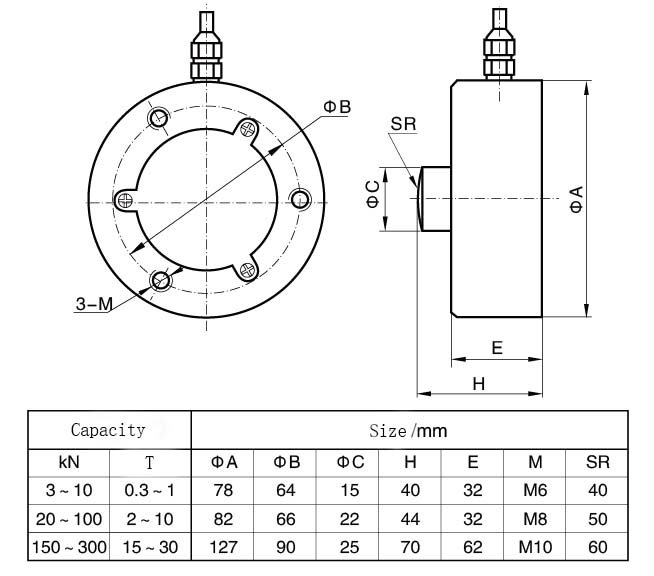

AM41L button load cell can measure the tension force, It is made of stainless steel, with strong anti-eccentric load capability and double sealing, which is suitable for the detection of force values in various harsh environments.
Contact us if you need the Datasheet PDF.
Stainless steel construction
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
ZMMA-CS is miniature type force sensor for both of compression and tension usage.
Features:
Both compression and tension
ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.
Features:
Both compression and tension
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
SC132는 현재 출시된 마이크로 빔 전단 로드셀 중 가장 작은 제품입니다. 작은 크기에도 불구하고 2kg의 용량을 처리할 수 있다.
The SC132 is the smallest micro beam shear load cell available. Despite is small size, it can handle 2KG capacity which means that
Stainless steel
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Both compression and tension
SC902는 전자 저울 및 기타 고정밀 전자 계량 장치에 적합한 소형 체중계용 로드셀입니다. SC902는 뛰어난 신뢰성을 위해 합금강 로드셀로 제작되었으며, 컴팩트한 디자인으로 손이 닿기 어려운 곳에도 설치가 가능합니다. 또한, 간편한 설치를 위해 받침대가 미리 설치되어 있습니다.
This SC902 is a body scale weight miniature load cell ideal for electronic scale and other high accuracy electronic weighing devices. SC902 is made of alloy steel load cell for great reliability and can be installed in hard to reach area because of its compact form factor. The SC902 also has foot pre-installed for simplified installation.
SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.
The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.
SC929C는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC929C는 최대 50kg의 고용량 제품이지만, 10kg에서 20kg까지 다양한 용량으로 제공되어 특정 사용 사례에 맞게 조정할 수 있습니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편하며, 다른 하프 브리지 마이크로 로드셀과 달리 본체에 장착 구멍이 있어 직접 설치할 수 있습니다.
The SC929C is a half-bridge micro load cell ideal for body scales. The SC929C is high capacity with a maximum of only 50kg but it is also available in a range from 10kg and 20kg so it can be adapted to specific use cases. It also has feet pre-installed to the load cell body to simplify installation and, unlike other half-bridge micro load cells, the SC929C has mounting holes on its body so it can be installed directly.
