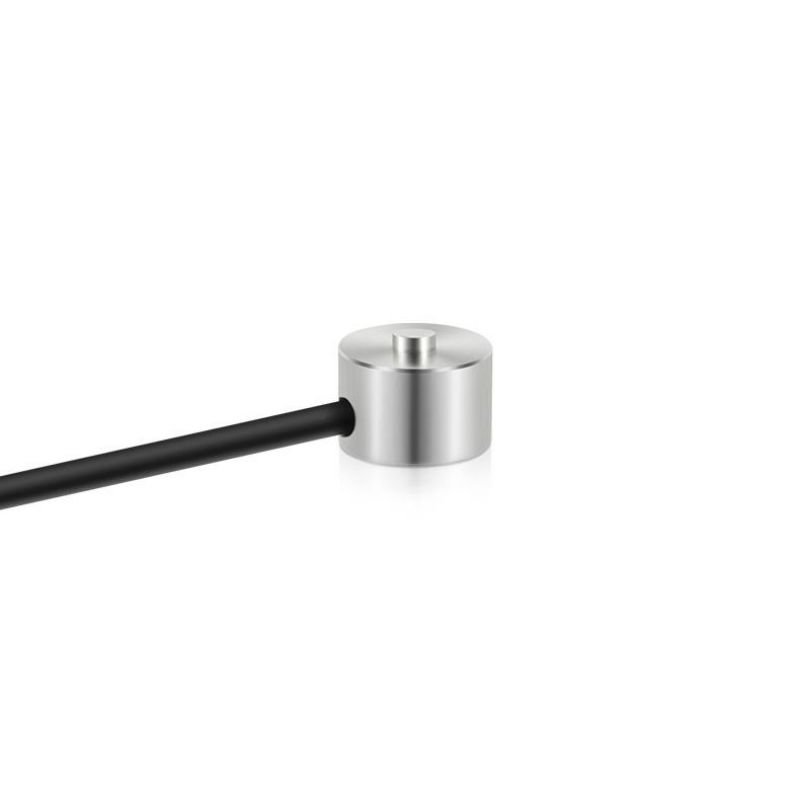

AMOWELLSENSOR / Miniature load cell – AM41D

The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.

Stainless steel construction

ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.

Features:

Both compression and tension

The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.

Stainless steel

SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.

The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.

Stainless steel construction

SC918은 체중계 및 저중량 계량 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC918은 최대 75kg의 고용량으로 설계되었지만, 50kg으로도 제공됩니다.

***SC918에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***

The SC918 is a half-bridge micro load cell ideal for body scales and low profile weighing applications. The SC918 is intended for high capacity with a maximum of 75kg but it is also available in 50kg.

***Mounting assembly/module may be necessary as the SC918 has no mounting holes***

SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.

The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.

• Capacity: 0-10T
• Sensitivity: 1.0-2.0mV/V
• Non-linearity 0.3% F.S.
• Repeatability 0.3% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

SC134는 체중계에 적합한 마이크로 로드셀입니다. 간편한 설치를 위해 풀 브리지 및 하프 브리지 구성으로 제공됩니다. SC134는 초박형으로 평평하거나 낮은 두께의 어플리케이션에 적합합니다. SC134의 중앙 구멍은 고객 요구에 따라 맞춤 제작 가능합니다.

The SC134 is a micro load cell ideal for body scales. It is available in Full Bridge and Half Bridge configuration for simplified installation. SC134 is ultra thin ideal for flat or low profile applications. The center hole of the SC134 can also be customized depending on customer needs.

SC133은 다양한 소매 및 산업 분야에 사용하도록 설계된 마이크로 빔 전단 로드셀입니다. 알루미늄으로 제작되고 양극산화 처리되어 SC133은 뛰어난 장기 정확도와 신뢰성을 제공합니다.

The SC133 is micro beam shear load cell designed for use in a wide range of retail and industrial applications. It is constructed from aluminum and anodized giving the SC133 great long term accuracy and reliability.

• Capacity: 1-100kg
• Sensitivity: 1.0-2.0mV/V
• Non-linearity 0.5% F.S.
• Repeatability 0.3% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized
