Miniature load cell – AM41C
Description
AM41C miniature load cell is stainless steel material, super micro structure, dia10*3.5mm. special used for force measuring a narrow space.

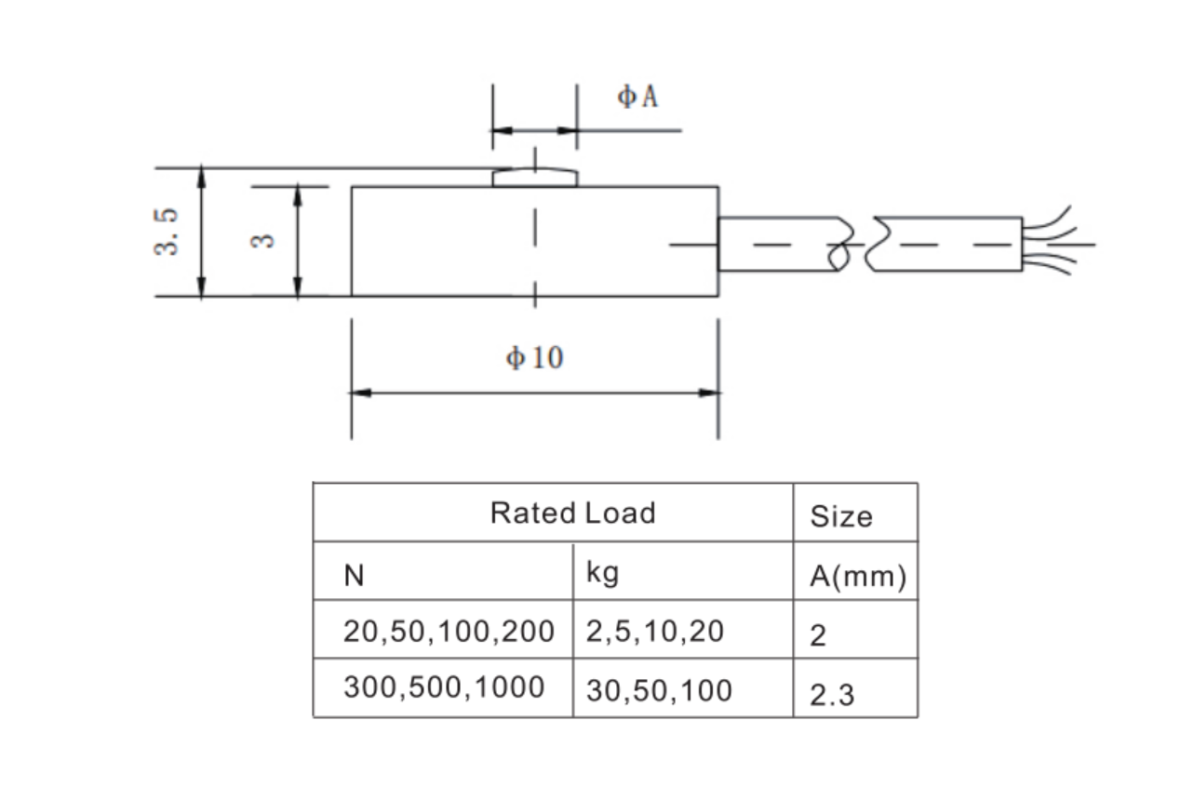

Drawing
Contact us if you need the Datasheet PDF.
AMOWELLSENSOR / Miniature load cell – AM41C
AM41C miniature load cell is stainless steel material, super micro structure.
| Accuracy | ±1.0%F.S |
|---|---|
| Capacity | 20,50,100,200,300,500,1000N |
| Certificate | RoHS, CE |
| Creep | ±0.25%F.S/30min |
| Material | Stainless steel |
| Model | AM41C |
| Sensitivity | 1.0/2.0±10%mV/V |
| Size | Dia10*3.5mm |
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
SC135B는 SC135의 특수 변형 모델입니다. 동일한 로우 프로파일 바디를 사용하지만, 더 작은 설치 환경에 적합하도록 장착 지점이 다릅니다. 따라서 최대 20kg의 낮은 용량을 처리할 수 있습니다. 알루미늄으로 제작되었으며, 포팅 소재를 사용하여 환경 친화적입니다.
The SC135B is a special variant of the SC135 It shares the same low profile body but its mounting points are different to accommodate smaller setups. As such, it can handle lower capacities up to 20kg. It is constructed from aluminum and environmentally protected by potting material.
SC134는 체중계에 적합한 마이크로 로드셀입니다. 간편한 설치를 위해 풀 브리지 및 하프 브리지 구성으로 제공됩니다. SC134는 초박형으로 평평하거나 낮은 두께의 어플리케이션에 적합합니다. SC134의 중앙 구멍은 고객 요구에 따라 맞춤 제작 가능합니다.
The SC134 is a micro load cell ideal for body scales. It is available in Full Bridge and Half Bridge configuration for simplified installation. SC134 is ultra thin ideal for flat or low profile applications. The center hole of the SC134 can also be customized depending on customer needs.
SC902는 전자 저울 및 기타 고정밀 전자 계량 장치에 적합한 소형 체중계용 로드셀입니다. SC902는 뛰어난 신뢰성을 위해 합금강 로드셀로 제작되었으며, 컴팩트한 디자인으로 손이 닿기 어려운 곳에도 설치가 가능합니다. 또한, 간편한 설치를 위해 받침대가 미리 설치되어 있습니다.
This SC902 is a body scale weight miniature load cell ideal for electronic scale and other high accuracy electronic weighing devices. SC902 is made of alloy steel load cell for great reliability and can be installed in hard to reach area because of its compact form factor. The SC902 also has foot pre-installed for simplified installation.
SC135는 초박형 소형 로드셀로, 초저프로파일 계량 장비에 사용하도록 인증되었습니다. 다른 저프로파일 마이크로 로드셀과 달리 SC135는 고용량으로 작동하며 단일 지점 로드셀의 대안으로 사용하도록 설계되었습니다. 알루미늄으로 제작되었으며 포팅 소재로 환경 친화적입니다. 이 플랫 로드셀은 가벼운 무게와 간편한 장착으로 어떤 용도에도 매우 쉽게 조립할 수 있습니다.
The SC135 is an ultra thin miniature load cell is certified load cell for use in ultra low-profile weighing equipment. Unlike other low profile micro load cells, the SC135 is capable of high capacities and is designed to be used as an alternative to a single point load cell. It is constructed from aluminum and environmentally protected by potting material. This flat load cell has lightweight design and easy mounting making it very easy to assemble in any application.
The ZMMA1 is miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The low profile, small diameter design enables the ZMMA1 to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.
Features:
Capacity 500N-5000N
Compact size
Easy installation
Stainless steel construction
Optional features:
4-20mA or 0-5V output
SC913A는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC913A는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 직사각형 프레임과 로드셀 본체에 미리 설치된 받침대가 있어 설치가 간편합니다. 특수 고객 설치를 위해 받침대 없이도 SC913A를 제공합니다.
***SC913에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC913A is a half-bridge micro load cell ideal for body scales or low profile applications. The SC913A is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has rectangular frame and feet pre-installed to the load cell body to simplify installation. SC913A is also available without feet for specialized customer installations.
***Mounting assembly/module may be necessary as the SC913 has no mounting holes***
SC133은 다양한 소매 및 산업 분야에 사용하도록 설계된 마이크로 빔 전단 로드셀입니다. 알루미늄으로 제작되고 양극산화 처리되어 SC133은 뛰어난 장기 정확도와 신뢰성을 제공합니다.
The SC133 is micro beam shear load cell designed for use in a wide range of retail and industrial applications. It is constructed from aluminum and anodized giving the SC133 great long term accuracy and reliability.
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
ZMMA-YS is mini type force transducer, widely used on UTM and compression&tension force applications.
Features:
Capacity 10N,20N,30N,50N,100N
Compact size
Stainless steel construction
Both compression and tension
Optional features:
0-5V, 4-20mA output signal
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Features:
Capacity 50N-1KN
Low profile and compact size
Through-hole
Stainless steel construction
Optional features:
Customizable dimensions
