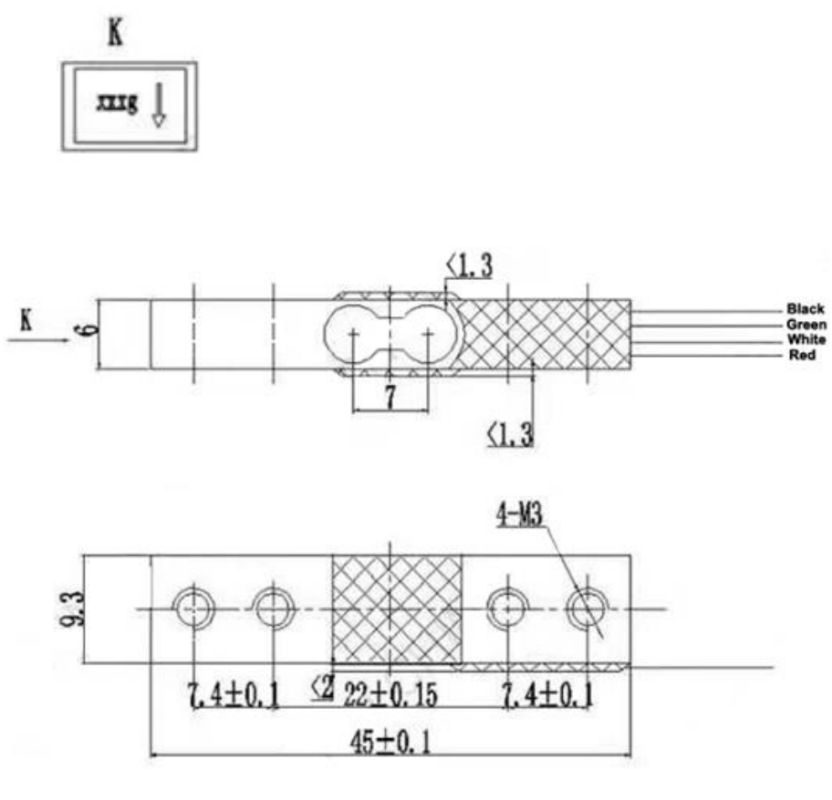

AM34B micro load cell weight range is 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg；the accuracy is 0.05 % F.S；size is 45×9.3×6 mm；the cable is Φ0.8x200mm.
| Accuracy | 0.05%F.S |
|---|---|
| Capacity | 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg |
| Certificate | RoHS, CE |
| Creep | 0.1%F·S/3min |
| Material | Aluminum alloy |
| Model | AM34B |
| Sensitivity | 300g: 0.7±0.15MV/V, 500g-750g: 0.8±0.15 MV/V, 1kg-5kg: 1.0±0.15 MV/V |
| Size | 45×9.3×6 mm |
AM34B micro load cell weight range is 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg；the accuracy is 0.05 % F.S；size is 45×9.3×6 mm；the cable is Φ0.8x200mm. Apply for electronic scale, kitchen scale, baby scale, smart coffee machine, smart bottle, or other small force test.
Contact us if you need the Datasheet PDF.
SC902는 전자 저울 및 기타 고정밀 전자 계량 장치에 적합한 소형 체중계용 로드셀입니다. SC902는 뛰어난 신뢰성을 위해 합금강 로드셀로 제작되었으며, 컴팩트한 디자인으로 손이 닿기 어려운 곳에도 설치가 가능합니다. 또한, 간편한 설치를 위해 받침대가 미리 설치되어 있습니다.
This SC902 is a body scale weight miniature load cell ideal for electronic scale and other high accuracy electronic weighing devices. SC902 is made of alloy steel load cell for great reliability and can be installed in hard to reach area because of its compact form factor. The SC902 also has foot pre-installed for simplified installation.
SC932는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC932는 최대 50kg의 고하중을 지원합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC932 is a half-bridge micro load cell ideal for body scales. The SC932 is high capacity with a maximum of only 50kg. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
The ZMWMC is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMWMC is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Stainless steel
Stainless steel
The ZMMC3 is through-hole force sensor which is available in a wide range of standard capacities from 50N through to 1000N. Zhimin offers custom solutions which help you design your unique load cell application. For wahser type load cell, we need to know your required diameter and through hole size. In order to reduce your cost, zhimin can produce sensors according to your current products. Our aim is to provide best solutions for your precious clients.
Stainless steel construction
SC929C는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC929C는 최대 50kg의 고용량 제품이지만, 10kg에서 20kg까지 다양한 용량으로 제공되어 특정 사용 사례에 맞게 조정할 수 있습니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편하며, 다른 하프 브리지 마이크로 로드셀과 달리 본체에 장착 구멍이 있어 직접 설치할 수 있습니다.
The SC929C is a half-bridge micro load cell ideal for body scales. The SC929C is high capacity with a maximum of only 50kg but it is also available in a range from 10kg and 20kg so it can be adapted to specific use cases. It also has feet pre-installed to the load cell body to simplify installation and, unlike other half-bridge micro load cells, the SC929C has mounting holes on its body so it can be installed directly.
SC135B는 SC135의 특수 변형 모델입니다. 동일한 로우 프로파일 바디를 사용하지만, 더 작은 설치 환경에 적합하도록 장착 지점이 다릅니다. 따라서 최대 20kg의 낮은 용량을 처리할 수 있습니다. 알루미늄으로 제작되었으며, 포팅 소재를 사용하여 환경 친화적입니다.
The SC135B is a special variant of the SC135 It shares the same low profile body but its mounting points are different to accommodate smaller setups. As such, it can handle lower capacities up to 20kg. It is constructed from aluminum and environmentally protected by potting material.
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Stainless steel
| Model Number: | TBQ | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Usage: | mixing machine | Theory: | resistant strain |
| Output: | 2.0mv/v | Description: | load pin |
| Rated Load: | 5t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.5%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
ZMMA-SS is small size force sensor for compression and tension. Widely used on automation machine and small force test purpose.
Features:
Both compression and tension
SC639M은 저용량에 적합한 소형 로드셀입니다. 특수한 뼈대 구조를 갖추고 있어 소규모 응용 분야에서 더 작은 용량을 처리할 수 있습니다. 특수 구조로 인해 최대 용량은 2kg에 불과합니다.
The SC639M is a miniature load cell that is ideal for low capacity. It has a special bone structure that allows it handle smaller capacities for small applications. Note that because of its special structure, its maximum capacity is only 2KG
SC700은 저용량, 소형 어플리케이션에 적합한 소형 로드셀입니다. 작은 크기에도 불구하고 최대 50kg의 용량을 지원합니다.
The SC700 is a miniature load cell that is ideal for low capacity, compact applications. It has a maximum capacity of 50kg despite its small size.
