Products tagged “Machine Building”
- Capacities: 0-10N up to 0-500N
- Output: 2mV/V
- Environmental Protection: IP50
- Accuracy: <±0.05%/RC
- Compact Size
- Miniature Size – Ideal for Low-Range Monitoring
- Superior Accuracy Guaranteed
- Ideal for general industrial use
- Wide Range of Instrumentation
- Load Cell Capacities: 0-5kN up to 0-1000kN
- Load Cell Output: 2mV/V
- High Accuracy Load Cell: <±0.05%/RC
- Easy To Read Backlit Display
- 2 Calibration Channels
- IP64 Dust Tight Environmental Protection For Display

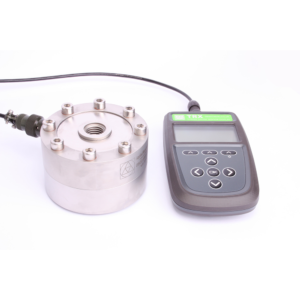

- DSCC Compression Load Cell + TRX Digital Readout
- TRX Supports Two Different Sensor Inputs, With The Option To Increase That To Six (Only One Sensor At A Time)
- Optional Data Logging, Graphical Analysis And Export Options Available When Connected To PC TRX Toolkit Software
- Measurement rate up to 2,400 SPS
- TEDS Enabled
- Load Cell Customisation Available Including: Fatigue-Rated Versions, IP67 Rated Versions, IP68 Submersible Versions
- Load Cell Capacities: 0-50kg up to 0-50,000kg
- Load Cell Output: 2mV/V
- Accuracy: <±0.15%
- Integral Load Button
- Easy To Read Backlit Display
- 2 Calibration Channels
- IP64 Dust Tight Environmental Protection For Display
- CBES Compression Load Cell + TRX Digital Readout
- TRX Supports Two Different Sensor Inputs, With The Option To Increase That To Six (Only One Sensor At A Time)
- Optional Data Logging, Graphical Analysis And Export Options Available When Connected To PC TRX Toolkit Software
- Measurement Rate Up To 2,400 SPS
- TEDS Enabled
- Load Cell & Display Customisation Available
- Capacities: 0-50N up to 0-50kN
- Output: 0.75mV/V to 2mV/V
- Fully Submersible: IP68 to 10m
- Accuracy: <±0.15%/RC (0.05% typical)
- Optional Integral Amplifier
- Ideal for any Freshwater Application
- Fully Submersible Long-Term Immersion Protected
- Underwater Protection Guaranteed Thanks to ‘O’ Ring Sealing
- Greater Underwater Depth Ratings Available for Deep Sea Applications
- Special Versions Alternative Construction Materials for Seawater and other Corrosive or Aggressive Media.

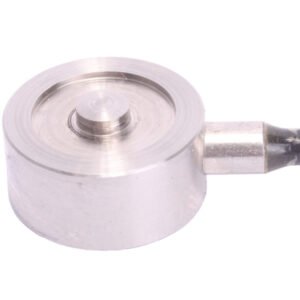

- Capacities: 0-25N up to 0-250N
- Ø9mm and 2.9mm Height
- Environmental Protection: IP53
- Accuracy: <±0.25%/RC
- Integral Load Button
- Very Compact – At Ø9mm x 2.9mm height it easily fits into the smallest of spaces.
- Save on Installation Time – Ideal for retrofitting into existing designs.
- Optimum Performance Guaranteed – With its integral load button.
- Ideal for Compression Measurement with Limited Space.
- Capacities: 0-100N up to 0-20kN
- Output: 2mV/V nominal (1.5mV/V on 0-100N)
- Environmental Protection: IP65
- Accuracy: <±0.5%/RC
- Integral Load Button
- Very Compact – At Ø30mm x 12mm height it easily fits into the smallest of spaces.
- Save on Installation Time – Ideal for retrofitting into existing designs.
- Optimum Performance Guaranteed – From its integral load button
- Let us do the hard work for you – The CDFM3 can be supplied with our wide range of instrumentation.

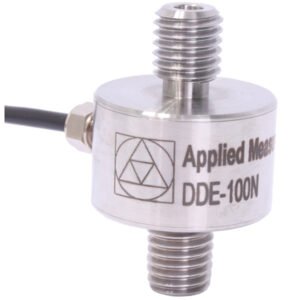

- Capacities: 0-100N up to 0-50kN
- Output: 2mV/V
- Environmental Protection: IP65
- Accuracy: <±0.30%/RC
- Low Profile Design
- Low Profile & Integral Mounting Threads Make it Ideal to use in Small Spaces
- Designed for Both Tension and Compression Monitoring
- Customisation Available to Suit Your Application
- Excellent at Monitoring Fast Changes Thanks to its Low Deflection

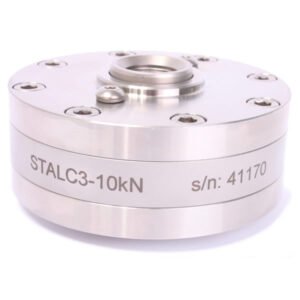

- Capacities: 0-1kN up to 0-100kN
- Output: 2mV/V
- Fully Submersible to 7000kPa
- Pressure Compensated Design
- High Accuracy: <±0.05%/RC
- IP68 Protection Rating
- Ideal for High-Pressure Triaxial Chambers
- IP68 Guaranteed for Water Pressures up to 7000kPa /70bar
- Ideal for Long-Term Testing Thanks to their Temperature Compensation & High Stability
- Pressure Compensating System Ensures Optimum Performance Under High Pressure.
- For Use in Both Water and Oil
- Capacities: 0-500N up to 0-2000N
- Output: 1.5mV/V nominal
- Environmental Protection: IP65
- Accuracy: <±0.5%/RC
- Integral Load Button
- Very Compact – At Ø15mm x 8mm height it easily fits into the smallest of spaces.
- Save on Installation Time – Ideal for retrofitting into existing designs.
- Optimum Performance Guaranteed – With its integral load button.
- Ideal for Compression Measurement with Limited Space.
- Capacities: 0-50te up to 0-1000te
- Supplied with Wireless Handheld Display
- Sealed to IP67
- Stainless Steel Construction
- Optional Loading Cap & Mounting Base
- Wireless up to 800m Range with Handheld Display
- Ideal for Hydraulic Press Calibration, Centre of Gravity & Pile Force Measurements
- Immersion protected to 1 metre
- Centre of Gravity Software Available
- ATEX & Calibration Standard Versions Optional
