Stainless steel junction box with potentiometer JB-054S, which can be connected to four sensors Small junction box Due to the differences in the key materials, strain and body of the sensor and the manufacturing process, the parameters of each sensor are inconsistent, mainly because of the sensitivity. This inconsistency is what is commonly referred to as angle difference. For this reason, the term junction box is involved, that is, the output signal of the sensor is connected to the junction box first, and then sent to the instrument, which is adjusted by adjusting the potentiometer inside the junction box. Angle difference, so that the sensitivity of each sensor is close to the same, so as to ensure the balance of the whole scale body.

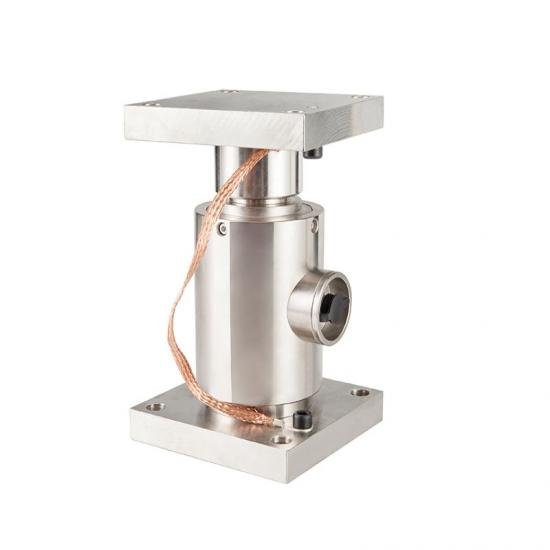

Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing.

Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.

50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000,500000N Or Customized Parallel Beam Weighing Module FA821B belongs to FA821 which is in Weighing Module category of our brand FIBOS FA8-Series, FA821B can be used to measure weight 50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N,300000N and 500000N or customized capacity.

As a load cell accessory, used with spacers and suitable for floor scales.

1.Made of stainless steel.

2.Laser welding sealing treatment, can be anti-oil, waterproof, anti-corrosive gases and media.

Industrial weighing systems such as platform scales, mixing stations, batching scales, etc.

Due to the differences in the key materials of the sensors, the strain and the projectile body and the manufacturing process, the parameters of each sensor are inconsistent, mainly because the sensitivity is inconsistent. This inconsistency is commonly referred to as the angular difference. The proper term of the box is to connect the output signal of the sensor to the junction box first, and then send it to the instrument, adjust the angle difference by adjusting the potentiometer inside the junction box, and then make the sensitivity of each sensor close to the same, so as to ensure the balance of the whole scale body. balance.

• Capacity: 0-2000kg
• Sensitivity: 2.0±0.05mV/V
• Non-linearity 0.05% F.S.
• Repeatability 0.03% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

Ingredient weighing control for small and medium-sized weighing reactors in the chemical, pharmaceutical, food and other industries

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.

The ZMMLB weighing module is designed for spoke type load cells up to 100t capacities. The load cell is with high accuracy and high stability pancake type. Stainless steel construction is optional.

Features:

Nickel plated alloy steel

0.22-20.4t IP68 Weighing Control In Medical Industry Applied Weighing Module FA811 is a model of our brand FIBOS FA8-Series, Weighing Module FA811 can be used to measure load ranges from 0.22t,0.55t,1.1t,2.2t,4.4t,9.07t,13.6t, up to 20.4t capacity, it’s easy to maintain&install, it supports bolt to avoid overturn, its spherical fittings keep the vertical weighing state, it could be used in tough environment.
