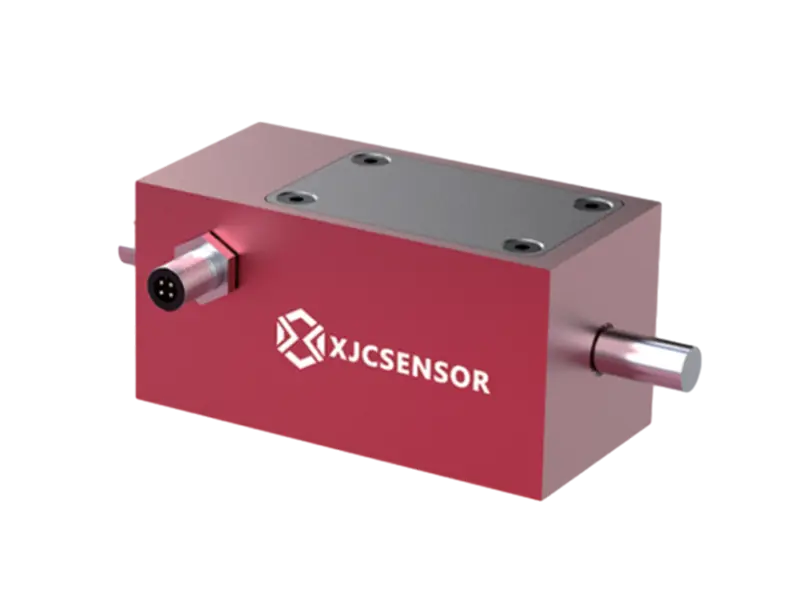

Xjcsensor / X-DT-1001 / Dynamic Torque Sensor

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 16000 RPM.

Product description:
 Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.

1. Non-contact type and small size structure to prevent wear
2. High precision, stable and reliable performance
3. Torque value can be measured in both positive and negative directions , also speed can be measured
4. Both ends are connected by key-way
5. The maximum speed of 8000RPM, suitable for long-term high speed rotation conditions

Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal:  Pulse, 4-20mA

• Contact dynamic torque, small range, small size, mV signal output
• Can measure torque values in both forward and reverse directions, but cannot measure rotational speed values
• Both ends are keyed, special shaft lengths can be customized
• Max speed≤1800r/min，Reach quickly 3000r/min
