Models

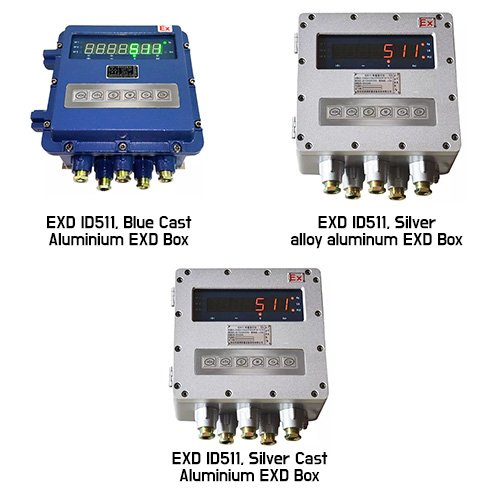

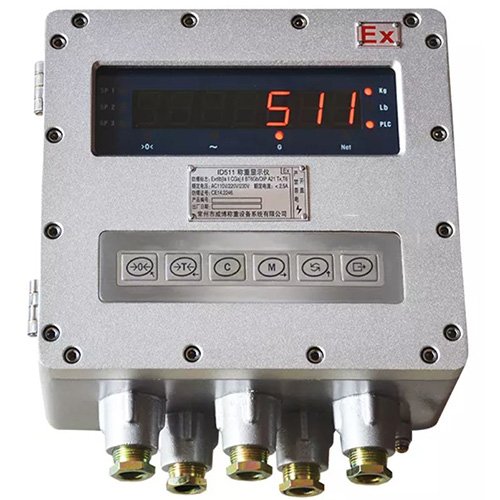

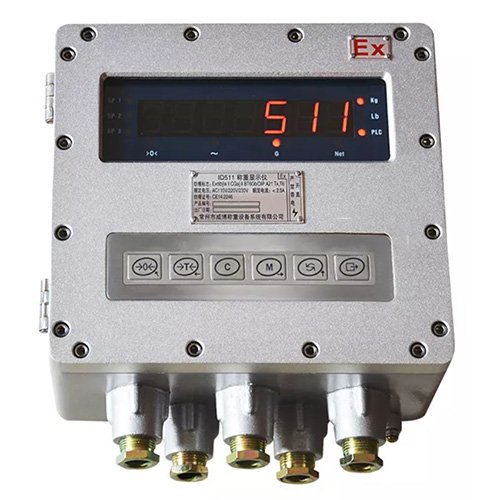

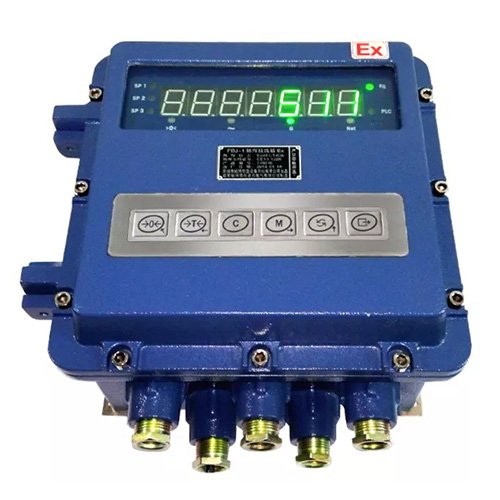

EXD ID511, Silver alloy aluminum EXD Box / EXD ID511, Blue Cast Aluminium EXD Box / EXD ID511, Silver Cast Aluminium EXD Box
Product Overview
EXD ID511 Explosion-proof Weighing Indicator
- Housing: Silver cast aluminum explosion-proof box (Exd IIB T6)
- Display: 7-digit LED segment display
Basic Version
- Power: AC 110V/220V (power cord not included)
Weighing Functions
- Supports 1 analog scale input.
- Connects up to 12 load cells.
- CPA 6000e certified, with display precision up to 150,000 divisions.
- OIML and CE certified.
Standard Communication Configuration
- 2 Serial Ports:
- RS232 + RS232/485
- or RS232 + RS485 + LAN port (with Ethernet version)
- Supported Communication Protocols:
- MODBUS-RTU
- MODBUS-TCP (LAN port version only)
- EtherCAT (included as standard)
PLC Communication Interface (Optional)
- PROFIBUS-DP (for Siemens PLC)
- CC-Link (for Mitsubishi PLC)
- PROFINET (dual LAN ports with built-in switch, for Siemens PLC)
- EtherNet/IP (dual LAN ports with built-in switch, for Rockwell/Delta PLC)
Analog Output (Optional)
- 1 channel of 4–20mA (16-bit precision DAC)
- 2 channels of 4–20mA (16-bit precision DAC)
I/O Options
- 8 input channels / 12 transistor output channels
- 8 input channels / 12 relay output channels
Calibration Functions
- Supports up to 5-point weight calibration.
- Calibration without weights is possible.
- Supports remote calibration via PROFIBUS-DP, PROFINET, EtherNet/IP, etc.
Application Program Support
- Basic weighing
- High/Low level detection
- 2-stage speed preset control
- Supports 8 channels of simple comparison output
Power Specifications
- Power Supply: Supports AC 85~264V or DC 24VDC
- Max Power Consumption: ≤ 6W
Other Features
- Compatible with various explosion-proof scales (e.g., EXPHC/EXPHS).
- Supports multiple enclosure types.
- Various communication boards and application software options available.
- Fully explosion-proof certified (including indicator and enclosure).
- Built-in safety barrier for 6-wire load cells.
