Models

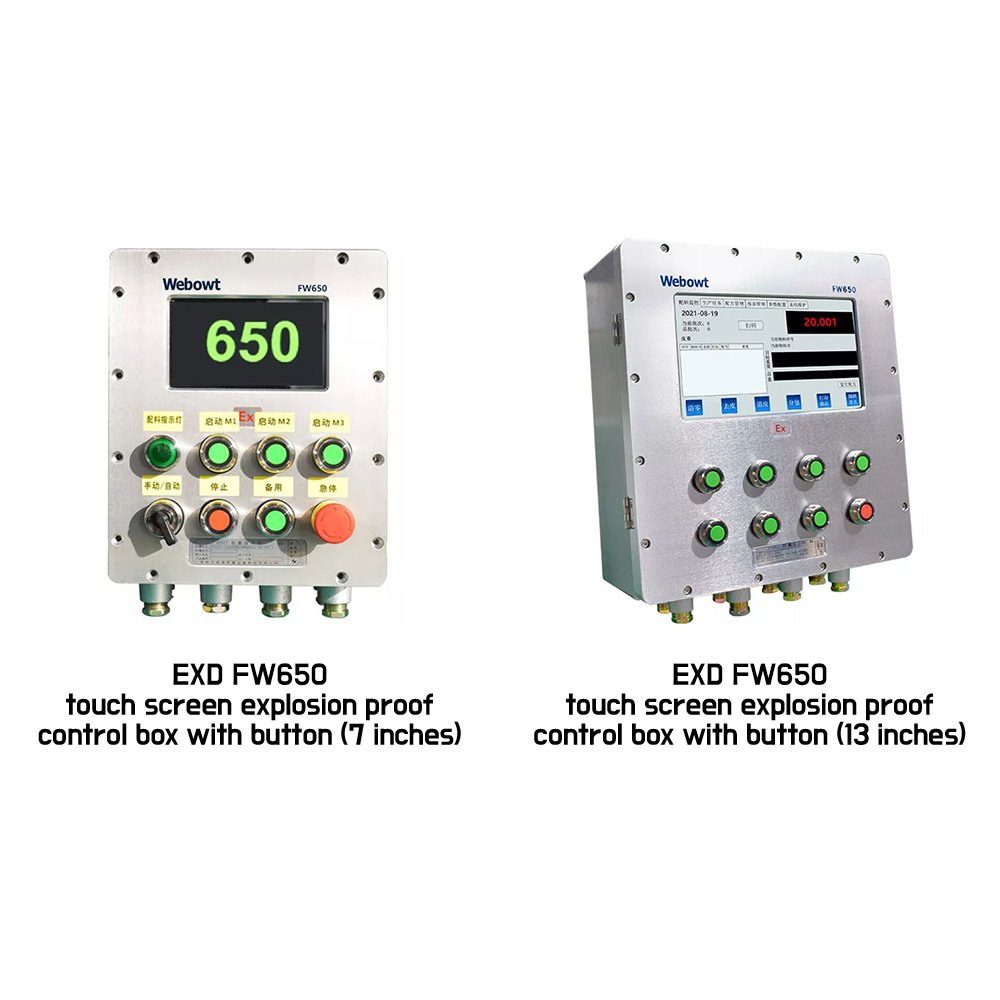

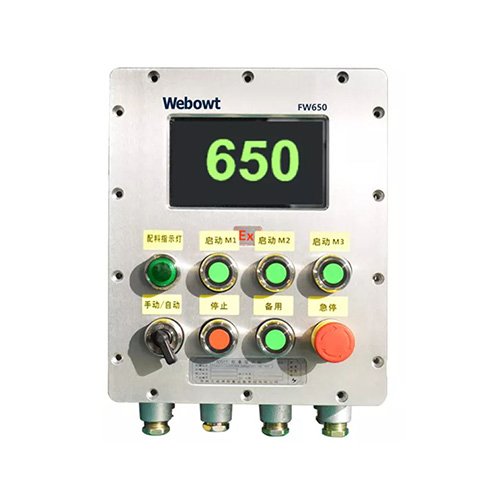

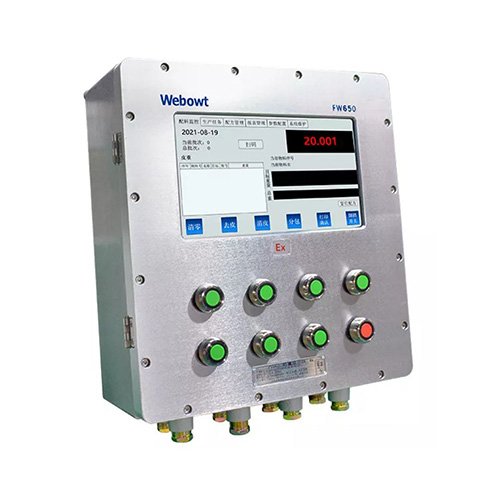

EXD FW650，touch screen explosion proof control box with button (7 inches) / EXD FW650 touch screen explosion proof control box with button (13 inches)
Product Overview
- Model: EXD FW650
- Explosion-proof Rating: IIB T6
- Enclosure: SS304 Stainless Steel Explosion-proof Box (with operating buttons)
- Display: 13-inch Color LCD Touchscreen (supports Korean/Chinese/English language switching)
- Weighing Method: Manual Batching
- Accuracy: CPA 6000e certified, supports up to 150,000 divisions
- Power Supply: 220VAC (includes power cord)
Weighing Functions
- Supports 1 analog scale input (connects up to 10 load cells).
- Display Accuracy: CPA 6000e certified, capable of displaying 150,000 divisions.
- Display Type: 13-inch Color LCD Touch HMI (7-inch option available).
Communication and Port Configuration
- Serial Ports: 4
- USB Ports: 4
- Supports connection of wireless mouse, keyboard, USB storage, and barcode scanner.
- LAN Port: 1 (with built-in switch function)
- Storage: Built-in 32GB SD memory card
- Communication Protocols:
- MODBUS-RTU
- MODBUS-TCP (LAN port version only)
PLC Communication Interface (Optional)
- PROFIBUS-DP (for Siemens PLC)
- CC-Link (for Mitsubishi PLC)
- PROFINET (1 x LAN port with built-in switch, for Siemens PLC)
- EtherNet/IP (1 x LAN port with built-in switch, for Rockwell/Delta PLC)
Analog Output (Optional)
- 1 channel of 4–20mA (16-bit precision DAC)
- 2 channels of 4–20mA (16-bit precision DAC)
Wireless Communication Options
- Wi-Fi wireless communication
- 4G wireless communication (Huawei 4G module)
I/O Options
- 4 Inputs / 6 Transistor Outputs
- 8 Inputs / 12 Transistor Outputs
Calibration Functions
- Supports up to 5-point weight calibration.
- Calibration without weights possible.
- Supports remote calibration via PLC communication.
Supported Application Versions
- Industry 4.0 Smart Weighing and Labeling MES Terminal Version
- Manual Batching Version
- Automatic Batching Version
- Filling Control Version
- Smart Shelf Inventory Management
- Material Tower Weighing IoT Version
Typical Applications
- MES Terminal (weighing, label printing, data storage, and MES data sharing)
- Manual/Automatic Batching Process Control
- Filling Process
- Material Tower Weighing (IoT application)
- Smart Shelf Weight-based Inventory Management
Additional Features
- 3-Level Authority Management
- Built-in change log recording function
Power Specifications
- Power Supply: Supports AC 85~264V or DC 24VDC
- Max Power Consumption: ≤ 6W
