Models
LD360
Key Features
- Flexible system configuration with a modular design.
- Easy installation supported by standard 35mm DIN rail mounting.
- Equipped with a 0.96-inch, long-life, 128×64 resolution green OLED display.
- Supports menu switching between Chinese and English to suit diverse user environments.
- Built-in LED indicators (red/green) for industrial communication status.
- Includes basic weighing functions such as Zero, Tare, and Net Weight display.
- Digital filtering function provides stable weight readings.
- Supports calibration without weights.
Weighing Performance
- Connects up to 4 analog scale platforms.
- Supports up to 8 x 350Ω analog load cells per platform.
Communication and Expansion Configuration
- Standard Communication Ports (Included in Base Model)
- 1 x Isolated RS232 port
- 1 x Isolated RS485 port
- Optional Expansion Board Configurations
- Standard PLC Communication Interface Support
- Industrial Ethernet Support:
- PROFINET
- EtherNet/IP
- Modbus-TCP
- EtherCAT
- Industrial Fieldbus Communication Support:
- PROFIBUS-DP
- Modbus RTU
- Industrial Ethernet Support:
- Other Standard Interfaces
- Analog Output: Supports 4–20mA and 0–10V outputs.
- 3-channel scale platform interface board.
- 2 x Isolated digital input ports.
- 4 x Isolated digital output ports.
- Standard PLC Communication Interface Support

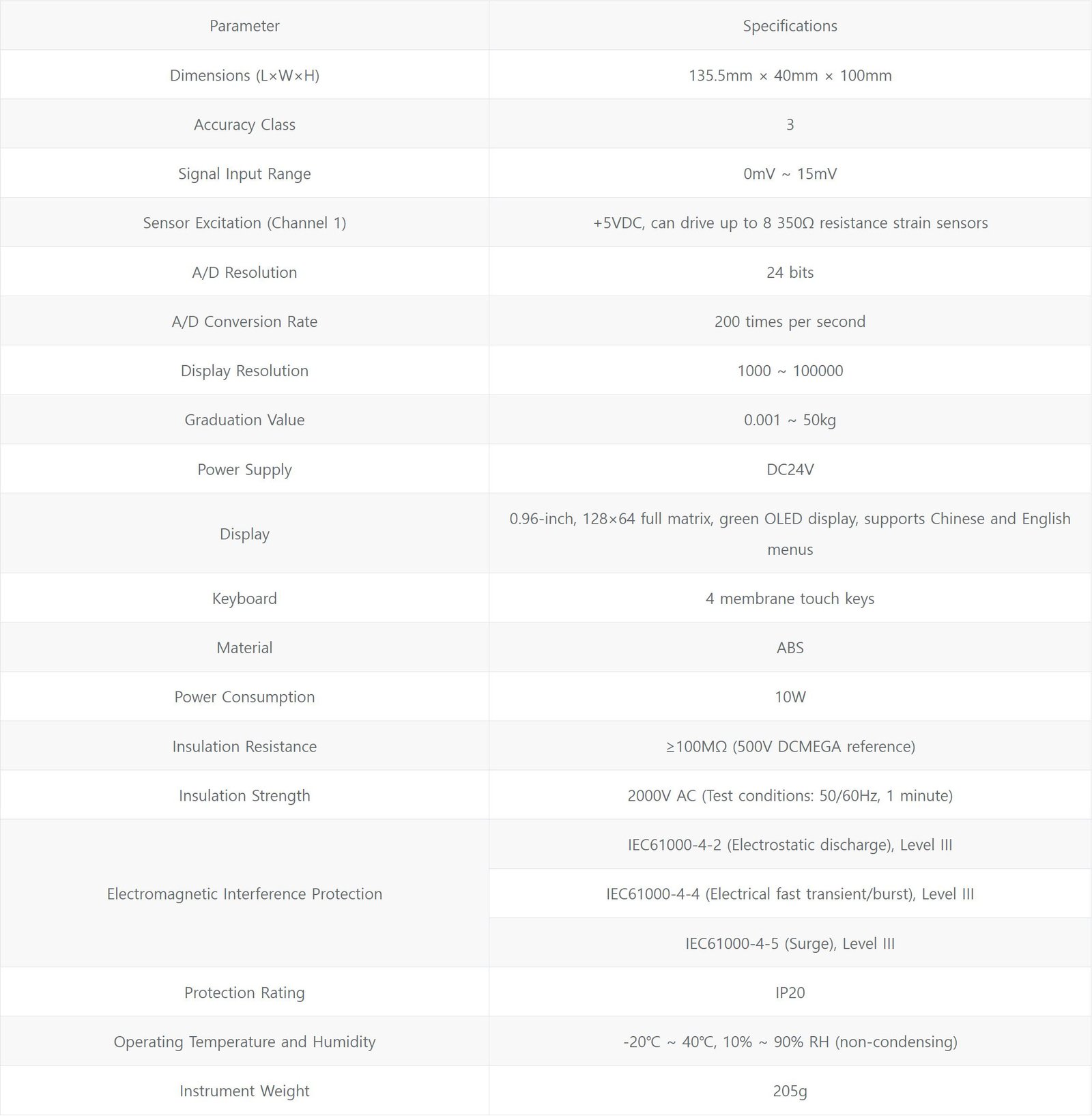

Specifications
