Models
Digital ID260
Features
- Full stainless steel housing with an IP66/IP67 protection rating
→ Suitable for various harsh industrial environments - Green OLED graphic display
→ Supports Korean, Chinese, and English
→ Provides a large-font display and a visual interface - Keypad Configuration
→ Independent power ON/OFF key
→ 9 function keys
→ 4 directional keys
→ 12-key pad for numeric, English, and Chinese input - Supports analog sensor input
→ Allows connection of up to 6 × 150Ω analog sensors - Extensive Communication Interfaces
→ COM1: RS232
→ COM2: RS485
→ USB
→ Optional: LAN (Ethernet port), Wi-Fi module - Input/Output (I/O)
→ Optional module with 4 inputs / 6 outputs - Storage
→ Optional internal SD card available - Power Supply
→ AC 100~240V power
→ or optional built-in rechargeable battery - Versatile Installation Options
→ Standard desktop mount
→ Square pipe mount
→ Round pipe mount
→ Wall mount with bracket - Printer and Scanner Compatibility
→ Supports three label printing formats: Standard mode, Counting mode, and Checkweighing mode.

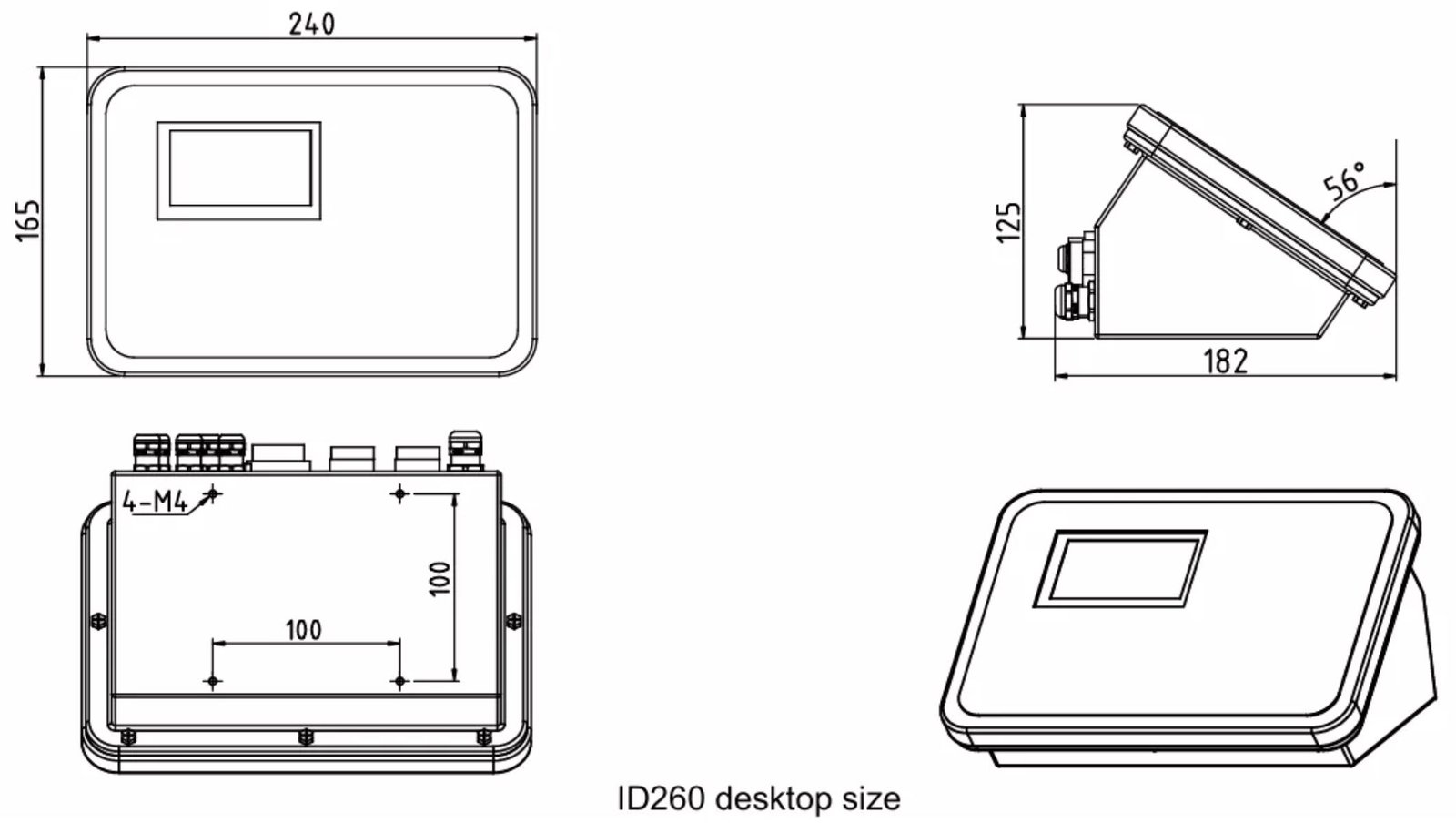

Dimensions

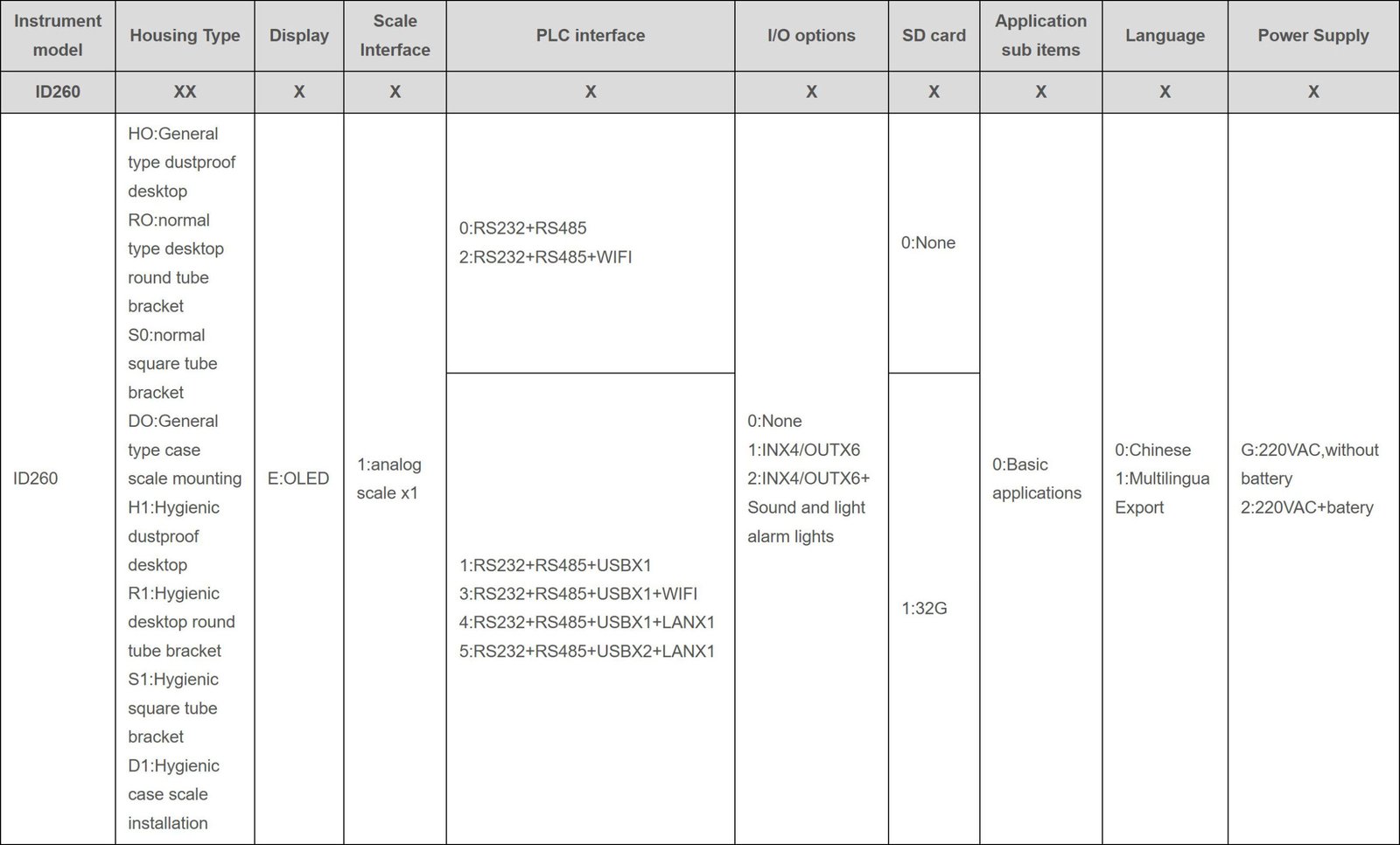

Optional
