Models
Digital ID226, SS1 Body / Digital ID226, SLIM / Digital ID226, SS2 Body / Digital ID226, ABS
Features
Product Specifications
- Display: 6-digit extra-large LED display
- Character height: 33.4mm
- Color: Selectable red or green
- Accuracy: CPA 6000e certified, supports up to 200,000 display divisions
- Power Supply:
- Built-in switching power supply
- Wide-range AC power input: Supports AC 85~264V
- Built-in charging circuit
- Can be equipped with a 6V 4.0AH lead-acid rechargeable battery
- Standard Communication:
- 2 serial port configuration: COM1 (RS232) + COM2 (RS485)
- Supported Communication Protocols:
- MODBUS-RTU
- Continuous data transmission
- Command send/receive
- SICS
- Barcode scanner input
- Optional Function Expansion Boards:
- Relay output board
- Ethernet communication board
- Bluetooth communication board
- Wi-Fi communication board
- Supported Functions:
- Basic weighing function
- X10 high-resolution display function
- Simple checkweighing and sorting function
- Counting function
- Animal weighing function
- Supports simple Chinese label printing
- Housing and Installation:
- 304 stainless steel dust-proof housing
- Installation options: Desktop, round pipe bracket, or square pipe bracket

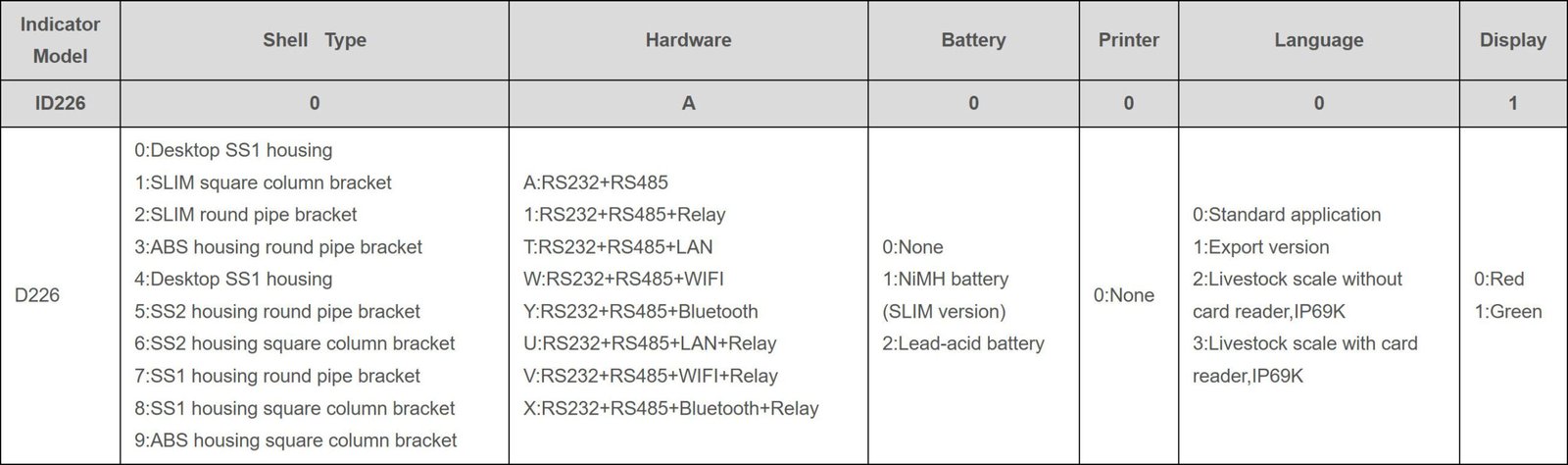

Optional
