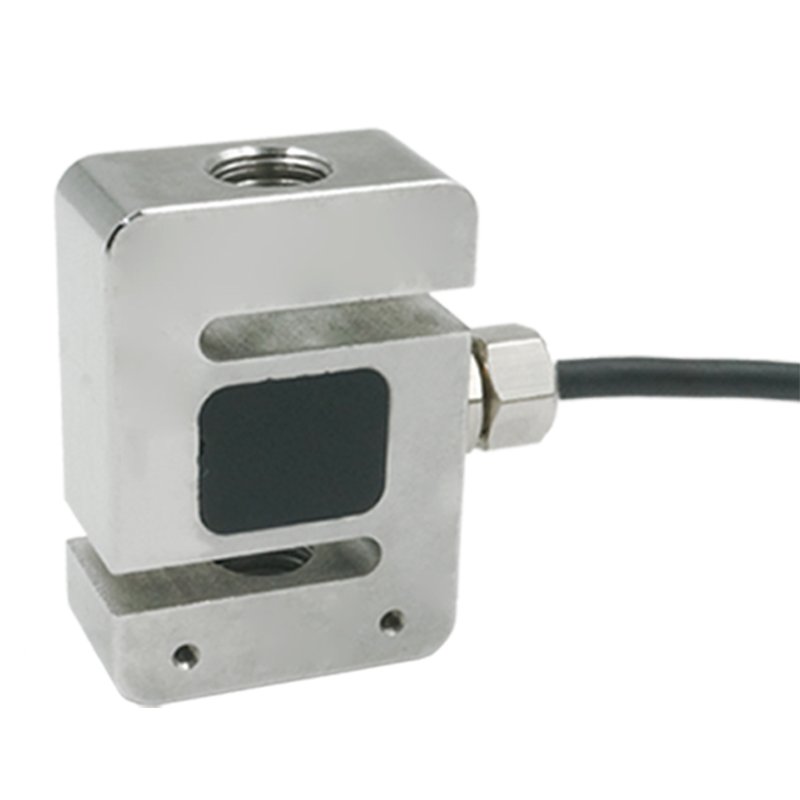

TC318B S-Type Tension And Compression Load Cell
Product Description
Features and Uses
Low height, small deformation;
Made of stainless steel;
Bidirectional stretching and compression;
Used for welding force test and tension test;
Used in automotive assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control systems.
High dynamic response frequency.
Application field: automobile assembly, automatic assembly, 3C product testing, new energy product assembly, medical testing, robot, mold assembly and other industrial testing, measurement and control system.

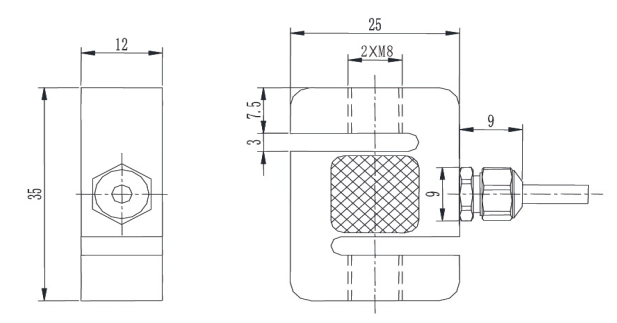

Mounting Dimension
Parameter List
| Rated Range | 5010020050010002000N | Insulation Resistance | ≥ 5000mΩ/100VDC |
| Consideration | 2.0±10%mV/V | Excitation Voltage | 5V |
| Null Balance | ±0.05%F.S | The Maximum Excitation Voltage | 15volts |
| Nonlinearity | 0.05%F.S | Temperature Compensation Range | -10~60℃ |
| Lag Error | 0.05%F.S | Operating Temperature Range | -20〜80℃ |
| Repeatability | 0.05%F.S | Safe Load(E L) | 150%F.S. |
| Creep (30 Minutes) | 0.05%F.S | Failure Load(E D) | 200%F.S. |
| Sensitivity Drift Temperature Coefficient | 0.025%F.S./10℃ | Cable size | Φ3×4000mm |
| Zero Drift Temperature Coefficient | 0.025%F.S./10℃ | Cloth | Stainless steel |
| Input Resistance | 385±20Ω | Unit Weight(G) | 0.1kg |
| Output Resistance | 350±10Ω | Protection | Ip66 |
| Direction Of Force | Wiring Method |
 |
 |
