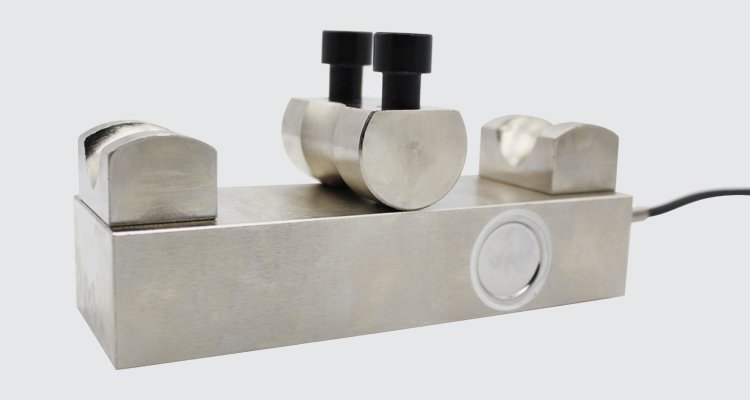

SOP / SOPZL-101 / High Quality Tension Sensor Load Cell for Lifting Testing Industry

5-100kN Stainless Steel Tension Compression Force Sensor FA411 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA411 can be used to measure tension and compression force 5kN,10kN,20kN,50kN and 100kN capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min),Non-linearity and Hysteresis all ≤0.2%F.S., its Repeatability ≤0.1%F.S..

10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.

50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.

3t Alloy Steel Tension Compression Force Sensor FA904 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA904 can be used to measure force of tension and compression 3t capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..

20-2000N Stainless Steel Tension Compression Force Sensor FA404 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA404 can be used to measure compression and tension force 20N,50N,100N,200N,500N,1000N and 2000N capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±2%F.S..

100-250t Spoke Type Load Cell FA120D belongs to FA120 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, FA120D can be used to measure load 100t,150t,200t and 250t capacity, its Input impedance range is 780±20Ω and its Output impedance range is 700±10Ω, its Zero Balance range is ±1%F.S..

50-1000kg Stainless Steel Tension Compression Force Sensor FA205 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA205 can be used to measure tension force and compression force 50kg,100kg,200kg,500kg and 1000kg, its Non-linearity ≤0.2%F.S., its Creep(30min),Hysteresis and Repeatability all ≤0.1%F.S..

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.

100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.

25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..

500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension Compression Force Sensor FA901 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA901 can be used to measure force ranges from 500N,1000N,1500N,2500N up to 5000N capacity, its Rated output range is 1.5±10%mV/V, its Zero Balance range is ±0.02mV/V.

1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
