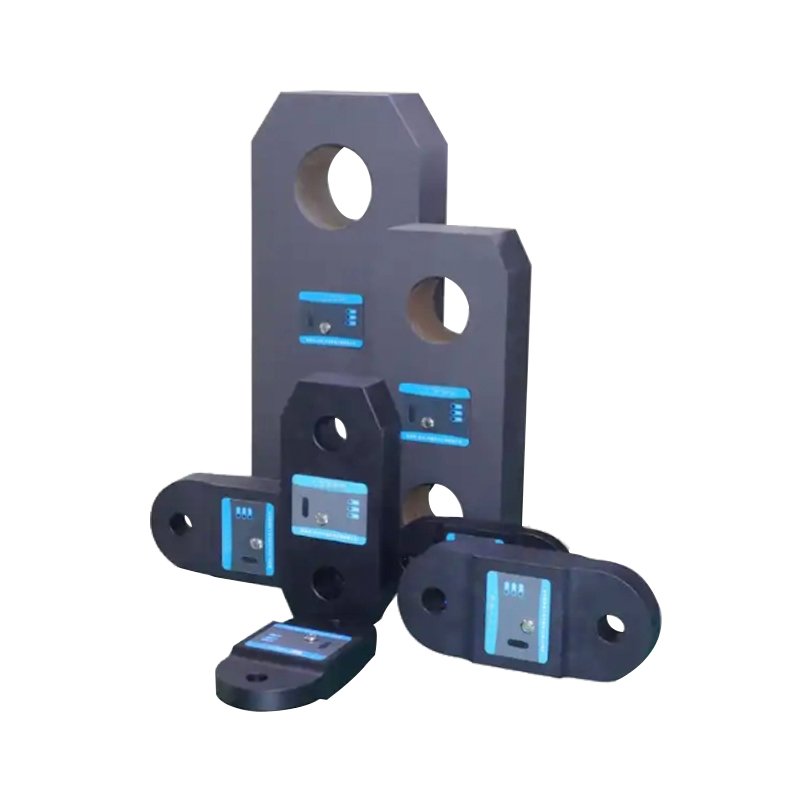

DST-BH-50T Digital dynamometer wireless weighing sensor with indicator
Product Description
Equipped with wireless real-time data transmission function, ensuring a high-speed transmission distance of 200 meters
Waterproof grade IP67；high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface
Product Features
1 high- quality alloy steel tension and compression load cells, chemical plating the nickel in surface
2 simple structure , convenient to install and maintenance
3 high comprehensive precision
4 compact structure
5 low setting height
6.good long -term stability
Main Functions
1.Change units: KN, T, lb, KG;
2.Record peak value: more than 800 groups;
3.Matching software: monitoring test data all the time;
4.Tare deduction & restore: Long press to remove or restore tare;
5.Warning: overload, upper & lower limit, peak valley value;
6.Non-linearity revising: 15 bidirectional polylinerevising functions;
7.Wireless mode: communication, judgement,monitor and keep working;
Product parameters
| Parameter | Data/ Unit |
| Range | 0-500N |
| Sampling rate | 2000Hz |
| Non-linearity | Better than 0.2% |
| Display index | -99999~999999 |
| signal input | -15 ~15mV |
| Temperature drift | Less than 20ppm |
| Built-in battery | 3200mAh battery, full battery life,.continuous work for 10 hours, low battery reminder |
| Sampling rate | 50Hz~12800Hz six gears adjustable |

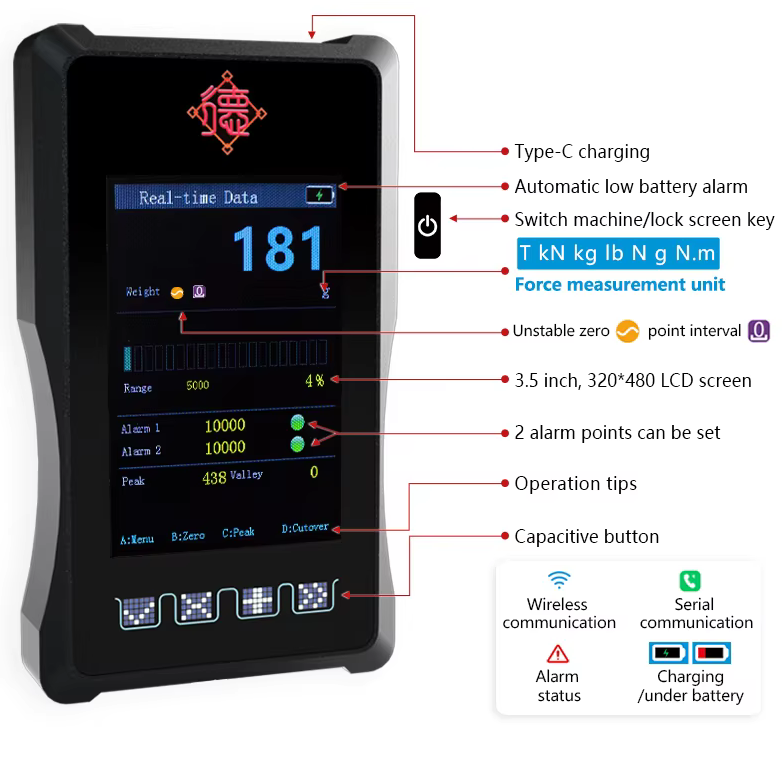

| UI | Real-time curve,historical curve/table,peak and valley value display, switchable horizontal screen |
| real-time monitoring | Automatically capture peak and valleyvalues and analyze sensor status |
| Setting parameters | Can backup and restore, one-key restore |
| Calibration without weights | Just enter the sensor parameters to complete the calibration |
| Smart sensor | Automatically calibrate, modify the corresponding unit,decimal point (using our TEDS smart sensor) |
| Connect to the computer | Use TYPE-C data cable (optional RS485)
to directly connect to PC to export force value data |
| Interface test interface | View serial port and wireless communication debugging data |
| Data storage | 200 sets of historical data of peak and valley values can be saved without loss after power failure |
| Alarm method | Upper limit alarm, lower limit alarm, peak and valley value alarm, automatic alarm for over-range twice |
| Capture method | Threshold-Threshold, Threshold-Time, Threshold-Button |
| Built-in sensor | Optional |
