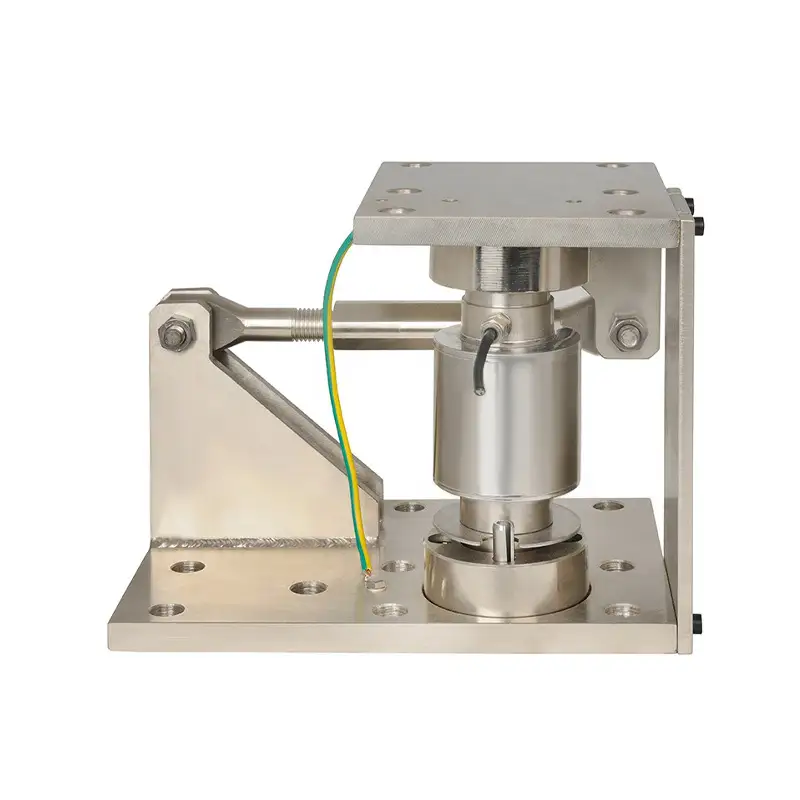

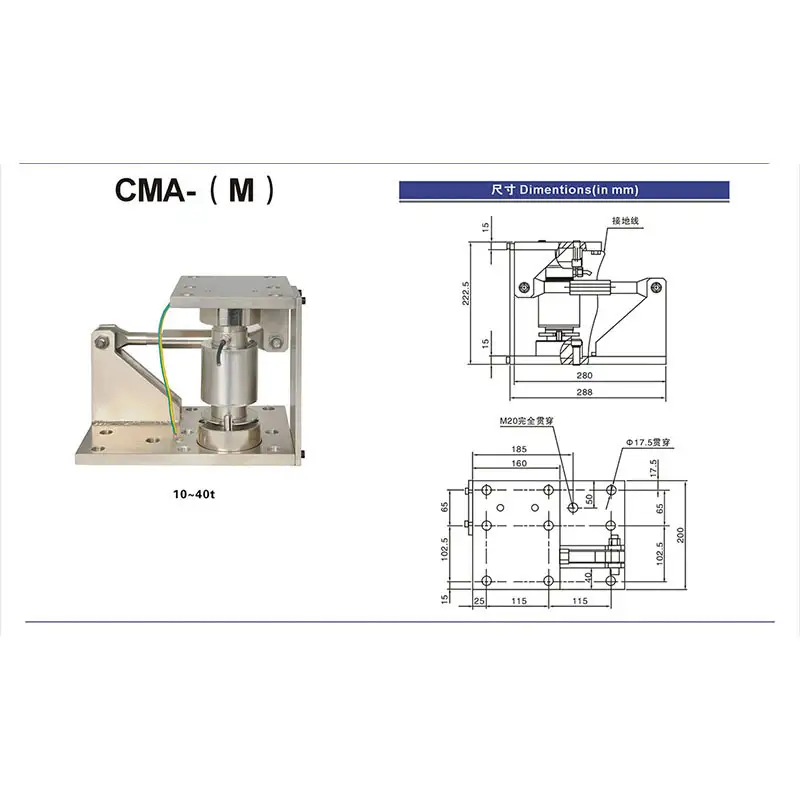

As more and more competitors emerge, we are driven to develop and upgrade our technologies.It has been proved that the manufacturing process becomes more efficient and 10 ton 20 ton Load Cell Mounting Modul Sensor Kit CMA-(M) Load Cell Mount for Silo Weighing advantages are fully presented.Our R&D professionals have scaled it up for use in Force Sensors & Load Cells.
Shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
|
Rated Load
|
10~40t
|
|
Sensitivity
|
2.0000±0.002mV/V
|
|
Total Error
|
±0.02%F.S
|
|
Creep(30minutes)
|
±0.02%F.S
|
|
Recommended Excitation Voltage
|
5V~18V(AC or DC)
|
|
Maximum Excitation Voltage
|
24V(AC or DC)
|
|
Zero Balance
|
±1%F.S
|
|
Input Impedance
|
380±10Ω
|
|
Output Impedance
|
350±5Ω
|
|
Insulation Impedance
|
≥5000MΩ
|
|
Safe Overload
|
150%F.S
|
|
Ultimate Overload
|
200%F.S
|
|
Operating Temperature Range
|
(-30~+70)℃
|
|
Compensated Temperature Range
|
(-20~+60)℃
|
|
Temperature Effect On Load
|
±0.02%F.S/10℃
|
|
Temperature Effect On Zero
|
±0.02%F.S/10℃
|
|
Construction
|
Alloy Steel/Aluminum
|
|
Protection Class
|
IP67&IP68
|
|
Citation
|
GB/T7551-2008/OIML R60
|
|
Mode of Connection
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
