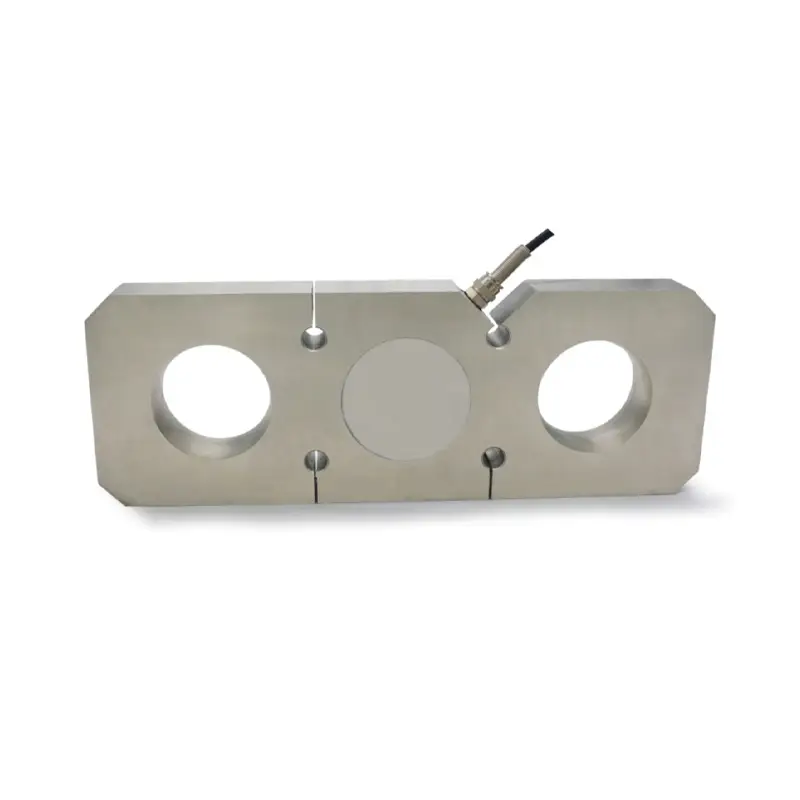

The applied technologies are utilized to ensure Crane Scales 5 ton 8 ton 12 ton Load Cell Weight Sensor 6 Ton Tension Load Cells BHF performance is stable.Its scopes of application are wide enough to cover the field(s) of Force Sensors & Load Cells.
Shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
|
Rated Load
|
5t,6t,7.5t,8t,10t,12t,18t,20t
|
|
Sensitivity
|
2.0000±0.002mV/V
|
|
Total Error
|
±0.05%F.S
|
|
Creep(30minutes)
|
±0.02%F.S
|
|
Recommended Excitation Voltage
|
5V~12V(AC or DC)
|
|
Maximum Excitation Voltage
|
15(AC or DC)
|
|
Zero Balance
|
±1%F.S
|
|
Input Impedance
|
380±10Ω
|
|
Output Impedance
|
350±5Ω
|
|
Insulation Impedance
|
≥5000MΩ
|
|
Safe Overload
|
150%F.S
|
|
Ultimate Overload
|
200%F.S
|
|
Operating Temperature Range
|
(-30~+70)℃
|
|
Compensated Temperature Range
|
(-20~+60)℃
|
|
Temperature Effect On Load
|
±0.02%F.S/10℃
|
|
Temperature Effect On Zero
|
±0.02%F.S/10℃
|
|
Construction
|
Alloy Steel
|
|
Protection Class
|
IP67&IP68
|
|
Citation
|
GB/T7551-2008/OIML R60
|
|
Mode of Connection
|
Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
|
