SAINTBOND / LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque

Add to Wishlist
Share it:

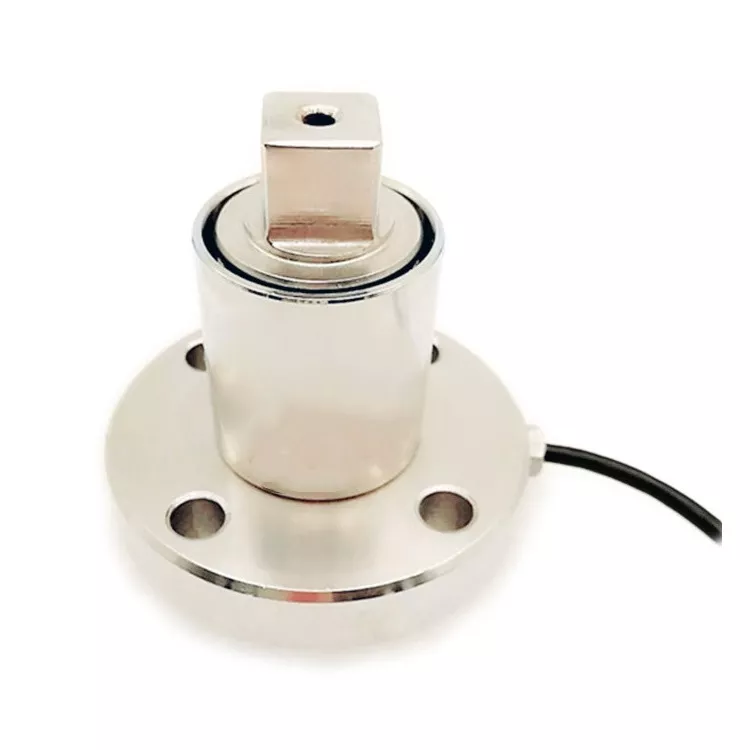

LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque

Product Description


Features

◎The resistance strain type principle, high precision, stable and reliable performance.

◎Need not be repeated zero can be continuous measurement of positive and reverse torque.

◎Applies to static, non continuous rotary torque force value measurement.

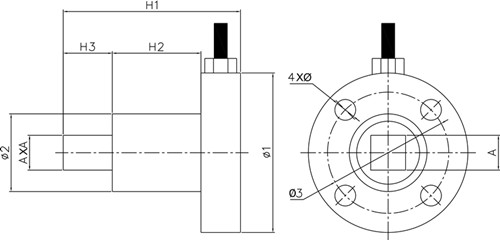

Dimensions


NM A H1 H2 H3 Φ1 Φ2 Φ3 Φ
2-200 12.5 55 30 15 59 32 45 6.5
300-1500 25.4 75 40 24 68 40 55 8.5
2000-3000 25.4 85 44 24 98 56 80 13



Specification:

Capacity 2~3000N.M Rated Output 2.0mV/V ±0.1%
Zero Balance ±1% of rated output Safe Temp. Range -10ºC to + 70ºC
Creep After 30 Minutes ±0.3% of rated output Temp. Compensated -10ºC to + 40ºC
Nonlinearity ±0.3% of rated output Safe Overload 150%
Hysteresis ±0.3% of rated output Input Impedance 387 ohm ± 20 ohm
Repeatability ±0.3% of rated output Output Impedance 350 ohm ± 5 ohm
Temp. Effect On Output ≤0.05% of applied output/ºC Rated Excitation 10V DC/AC
Temp. Effect On Zero ≤0.05% of applied output/ºC Maximum Excitation 15V DC/AC

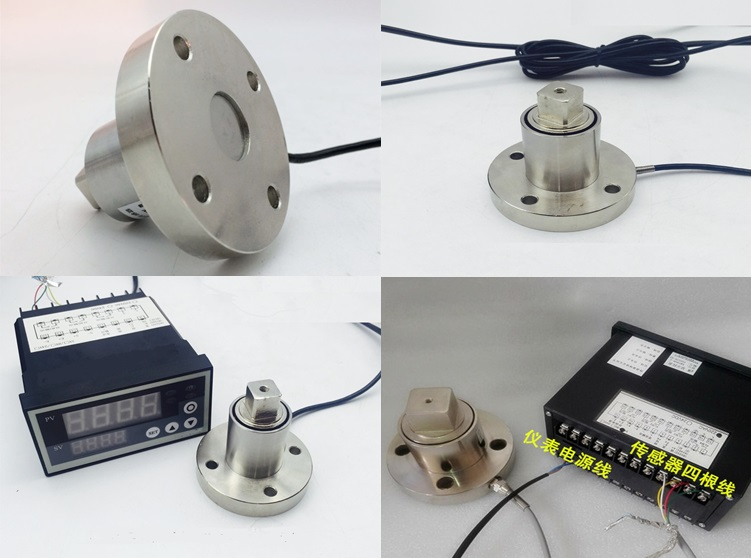

图片3图片4



Product name LCT301 Torque Sensors & Torque Transducers Reaction Static And Rotary Torque
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
