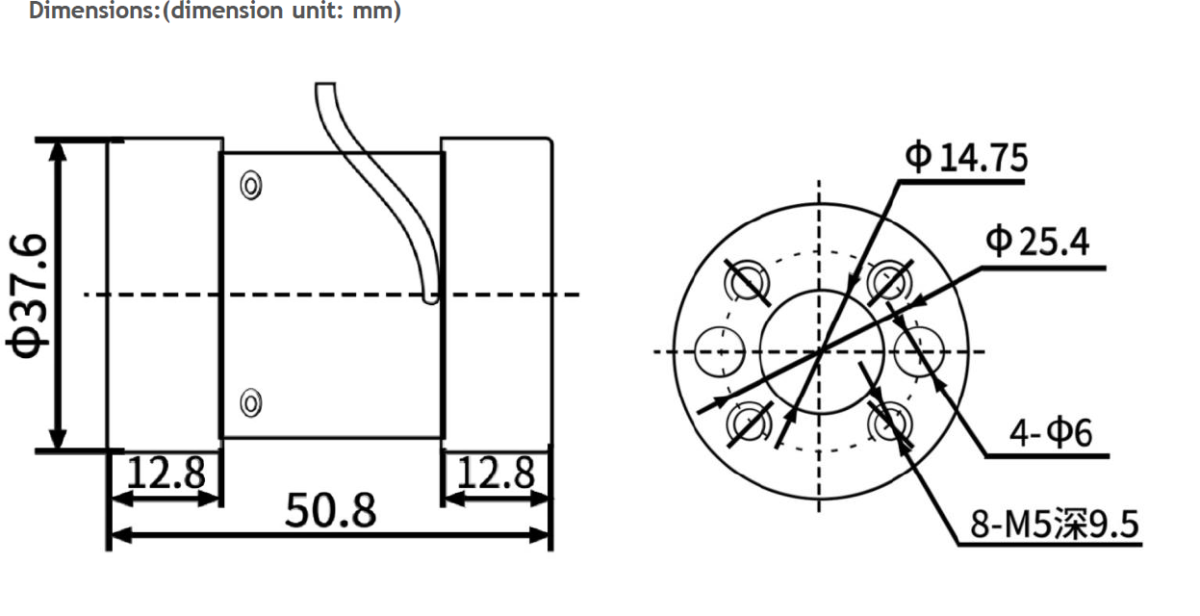

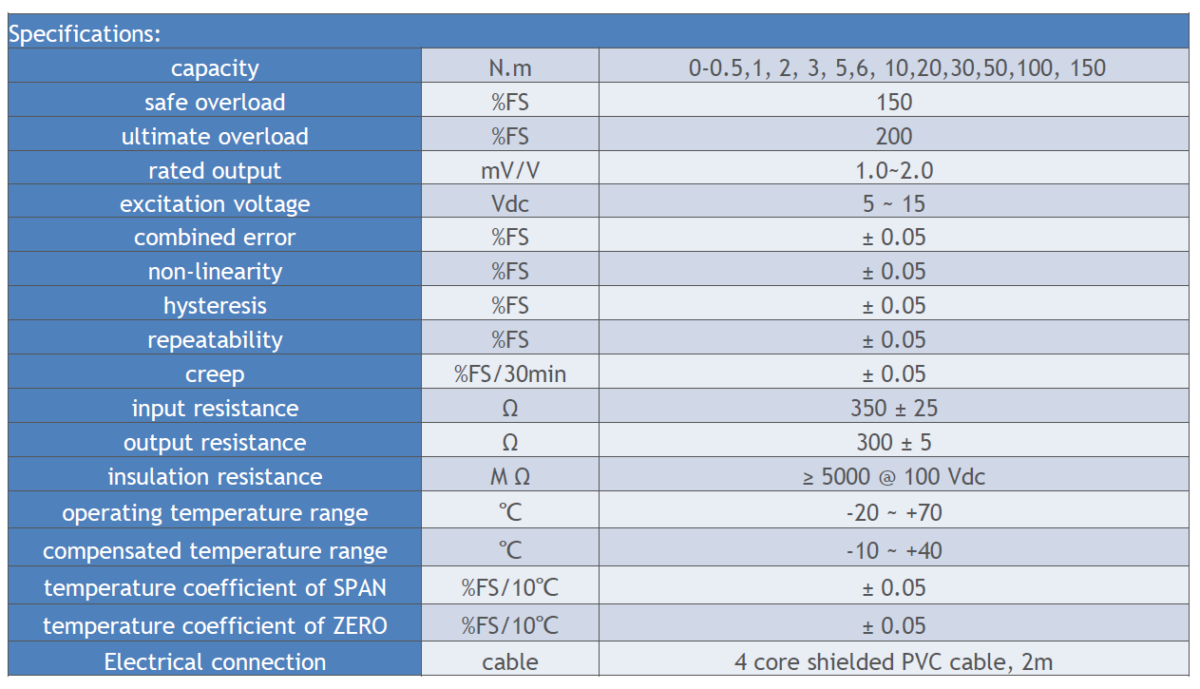

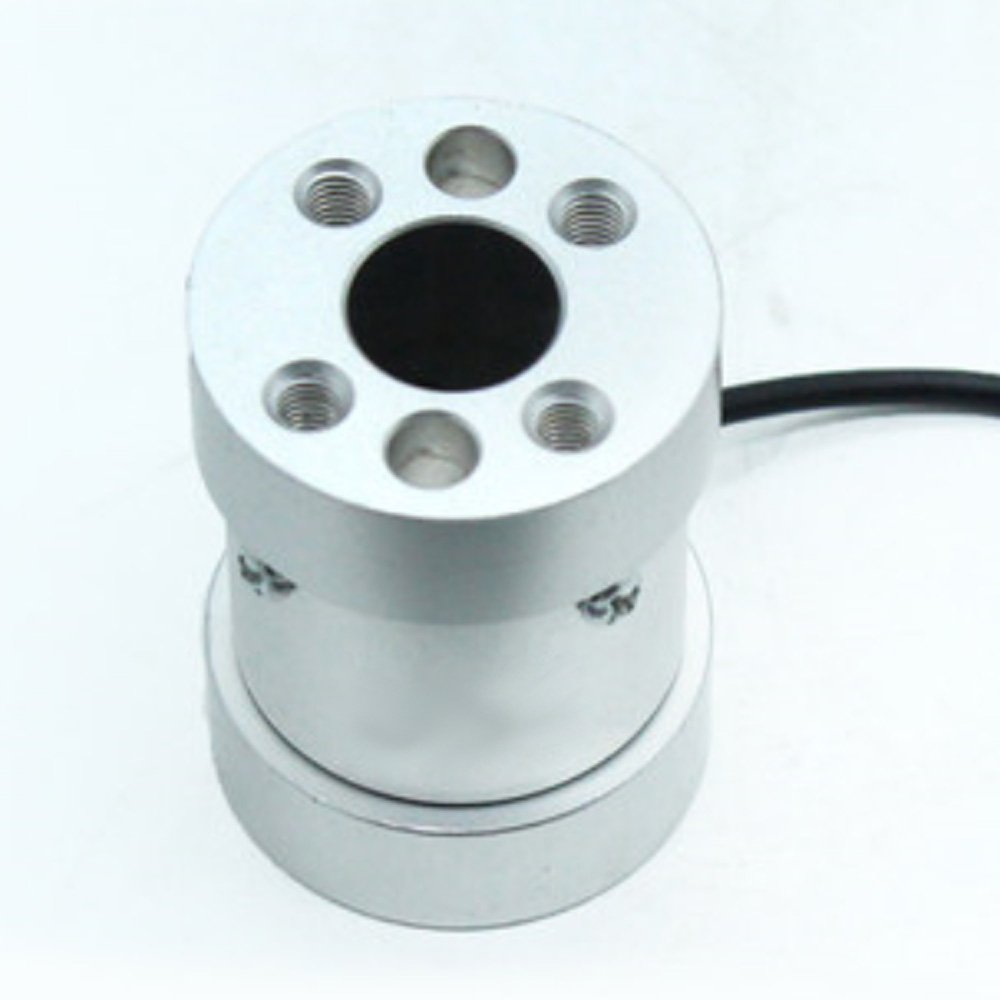

TAT20D Micro Type Static Torque Sensor
INTRODUCTION:
● High precision tension load cell
● Equivalent to OIML R60 C3 regulations up to 3000d for scales class III
● Protection to IP66
piezoresistive pressure sensor
MEMS technology
pressure range: 0~10kPa…2MPa
gas or dilute liquid compatible with 316LSS
1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Low profile、small、Low Deflection.
The ZMSGA provides good restraint to possible movement of the automation and in many cases. The load cell has overload preventer which can protect sensor under extrem overloding situtation. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSGA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 0.5kg-200kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
Product description:Feature: Capacity:5kg~500kg Material: stainless steel IP: 67
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
The ZMME is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMME is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Features:
Capacity 5kg-300kg
Both compression and tension
Compact size
Stainless steel
Optional features:
Hermetically sealed available
Product description:
Capacity ：1~5Kg
Material: aluminum-alloy
Type: Parallel beam type
Defend grade: IP65
Application : Palm scale, electronic jewelry scales and other electronic weighing devices.
◆ Capacity ：3~5000kg
◆ Material: stainless steel
◆ Defend grade: IP67
◆ Low profile and compact structure
The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
Micro Compression Force Sensor
D 35mm*H 15mm
Capacity: 100,200,300,500,1000,2000kg
Category: Miniature Button Compression Force Sensor
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
