• Boot 5 minutes into the working status, not need preheating course.
• high accuracy, good stability and anti-jamming.
• Do not need repeated zero setting can measure positive and negative torque.
• Small volume, light weight, easy to install.
• The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
• proportional to the torque.

• Range: 0~20KN m
• Output: 0~±5/10V, 4~20mA optional
• Accuracy: ≤±0.2%F.S
• Maximum output: 12000 r/min

Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance The maximum speed does not exceed 4000 rpm

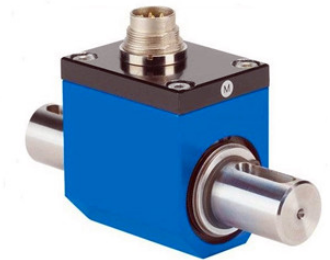

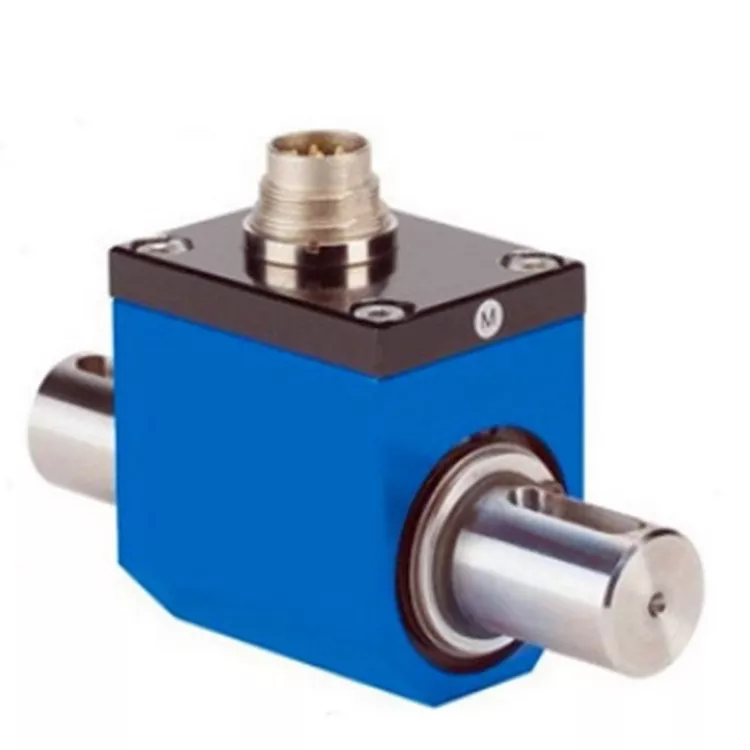

Product description:
 Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 16000 RPM.
