The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.

Nickel plated alloy steel IP67

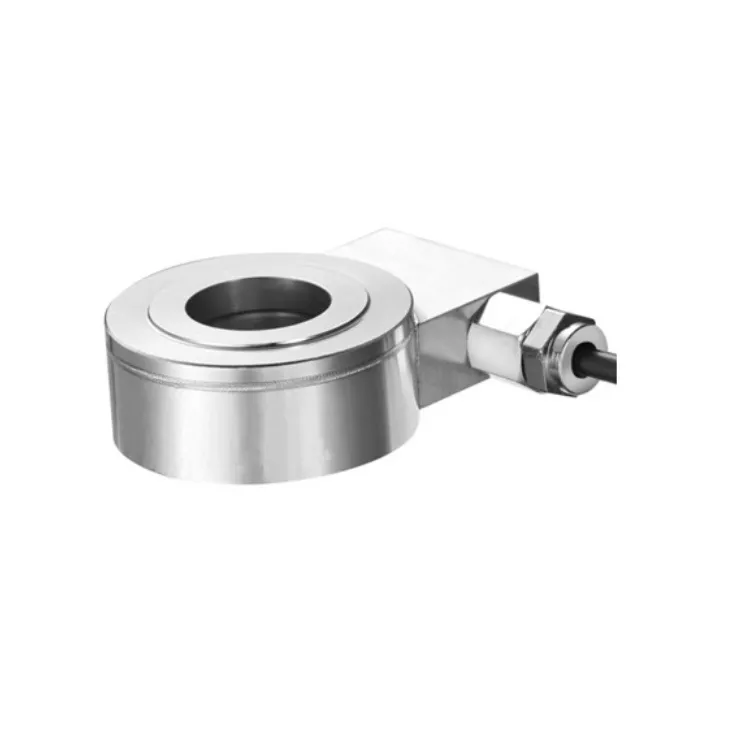

KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.

KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.

1.Alloy steel;

2.Low height, good rigidity, high precision, load-deflection resistance is strong;

3.Suitable for electronic belt scale, hopper scale, storage scale, tank scales, mechanics of materials testing machine, etc. weighing devices.

Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.

Material: stainless steel

Size: Spoke type

Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields

KWT1D60 is a kind of high accuracy and overload capacity load cell. The product has a built-in embedded circuit for real-time data accquisition and calculation, and can measure the value of force fastly. This series can also match the measuring requirements of multiple range.

• NS-TH3 series spoke type load cell structure;
• Simple, robust and resistant to lateral forces and eccentric loads
• Low center of gravity and easy installation;
• It is widely used in automatic control systems as automatic control components such as weighing and force measurement.

KWT1D75H series is a kind of bilayer through-hole struture load cell,it is a improved version based on KWT1D55H series to meet more measurement application scene. It adopts the multi-strain gauge bridge design, which can significantly optimize the performance and reduce the influence of external load on the sensor performance. This series has a low structure, and its very suitable for applications in environments with limited vertical space. This is a load cell that can handle eccentric loads and still maintain high accuracy and reliability.
