NS-TH1 Series Load Cells

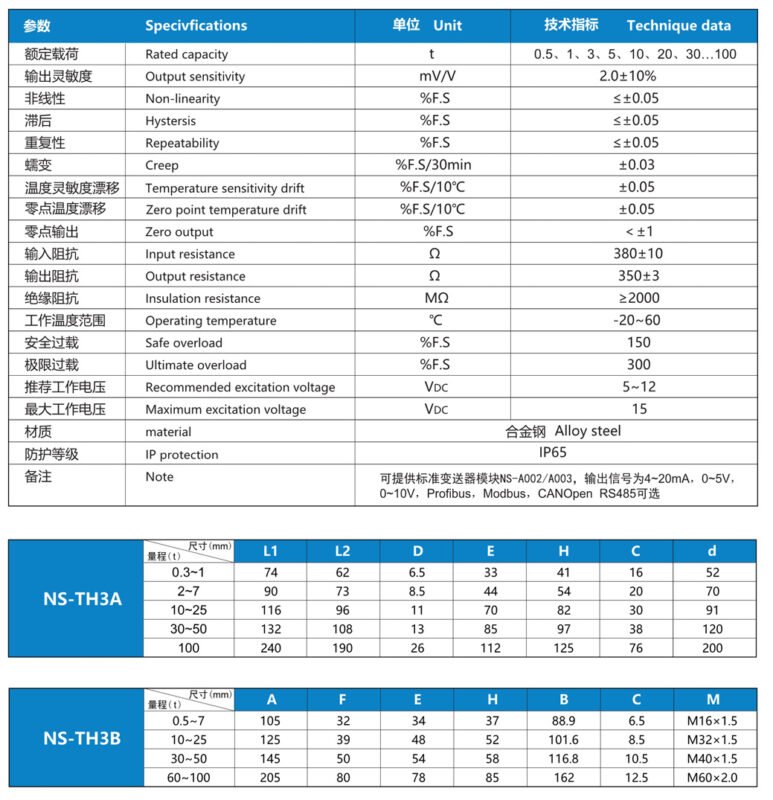

Parameter
Dimensions

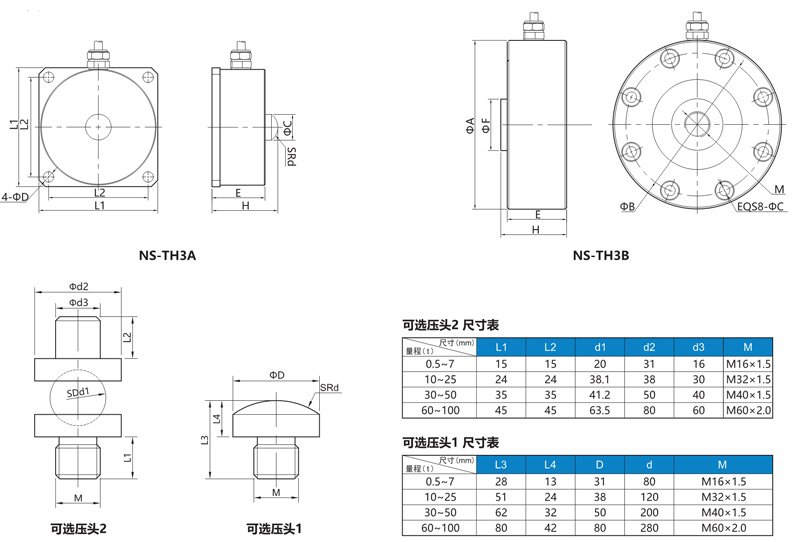

Wiring Definition
Selection table
NS / NS-TH3 Series Load Cells

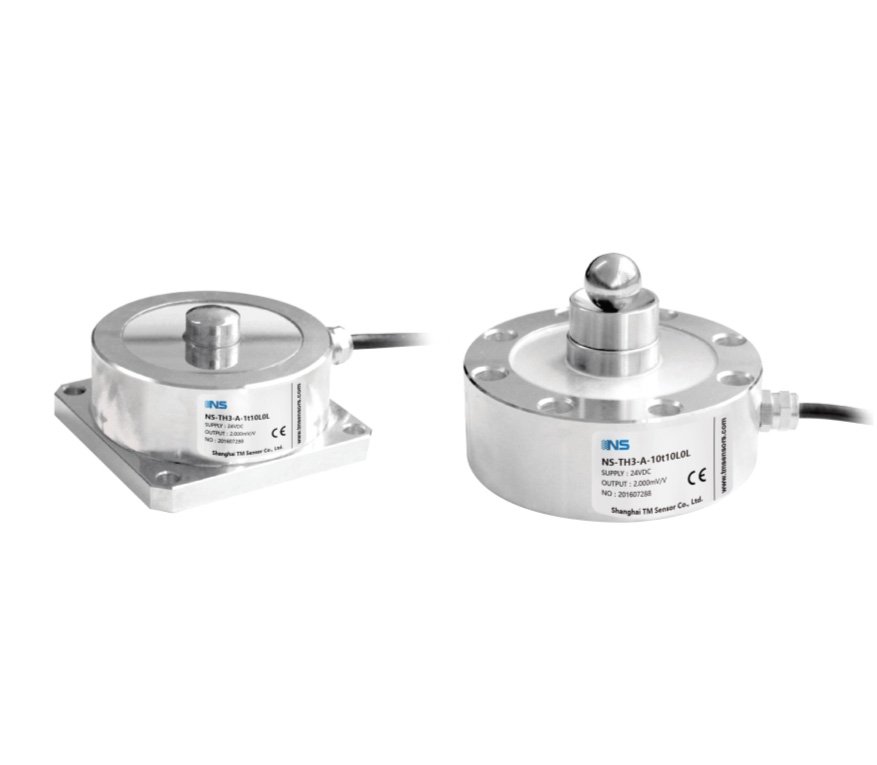

- NS-TH3 series spoke type load cell structure;
- Simple, robust and resistant to lateral forces and eccentric loads
- Low center of gravity and easy installation;
- It is widely used in automatic control systems as automatic control components such as weighing and force measurement.
KWT1D100H is a kind of ring symmetric force sensor, which adopts a hollow ring double-spoke structure. It is based on strain principle with an excellent and sensititive internal strain area to distritube the strain guege. It can provide high-precision measurement results and better protect the strain gauge. Also realizing bending moment compensation and lateral force compensation for sensors through special structural design and circuit design. It will improve the production efficiency with easy and fast installation.
High stability and reliability.
Applicable to: measurement and control system of testing machine and other force value.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
- Rail-type installation is convenient
- Input reverse polarity protection and output protection
- Through 4000V EMC. Strong anti-interference ability
- Long-term stability and high precision
- Can be equipped with various strain gauge sensors
- digital smart amplifier
It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.
Material: stainless steel, alloy steel
Size: Large range Other ranges can be customized
- NS-TH1 series load cell is composed of combined S-beam structure and metal foil strain gauge, with overload protection device;
- It has the advantages of high measurement accuracy, good temperature characteristics and stable operation;
- It is widely used in dynamic and static measurement of various structures and primary instruments of various electronic scales.
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
Product description:Features:
Capacity ：0.5~50Ton
42CrMoA alloy steel
Compact structure
Nickel plating on surface
Suitable for material testing machine, packaging scale, belt scale, hopper scale and other force testing instrument as well as automation equipment and testing filed.
- NS-TH18 series load cells are compact in structure, low in height, and have good eccentric load resistance
- It is an upgraded product of TH17 series
- Used in automotive press-fitting, automation equipment and other fields
The sensor can meet the test requirements of a wide range of sensors, with a range of 100kN~200kN.
KWT1D65 series is a kind of high-accuracy and multi-functions spoke type sensor. It has a unique integral multi-beam shear design that can withstand high external load, which makes the load cell with good stiffness and excellent dynamic response ability.
