• Capacity: 0-500kg
• Sensitivity:1.0±20%mV/V
• Non-linearity 1% F.S.
• Repeatability 0.5% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 0-500kg
• Sensitivity:1.0- 1.5±10%mV/V
• Non-linearity 0.3% F.S.
• Repeatability 0.1% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 1-200kg
• Sensitivity:1.0- 1.5mV/V
• Non-linearity 0.3% F.S.
• Repeatability 0.1% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

Stainless steel construction

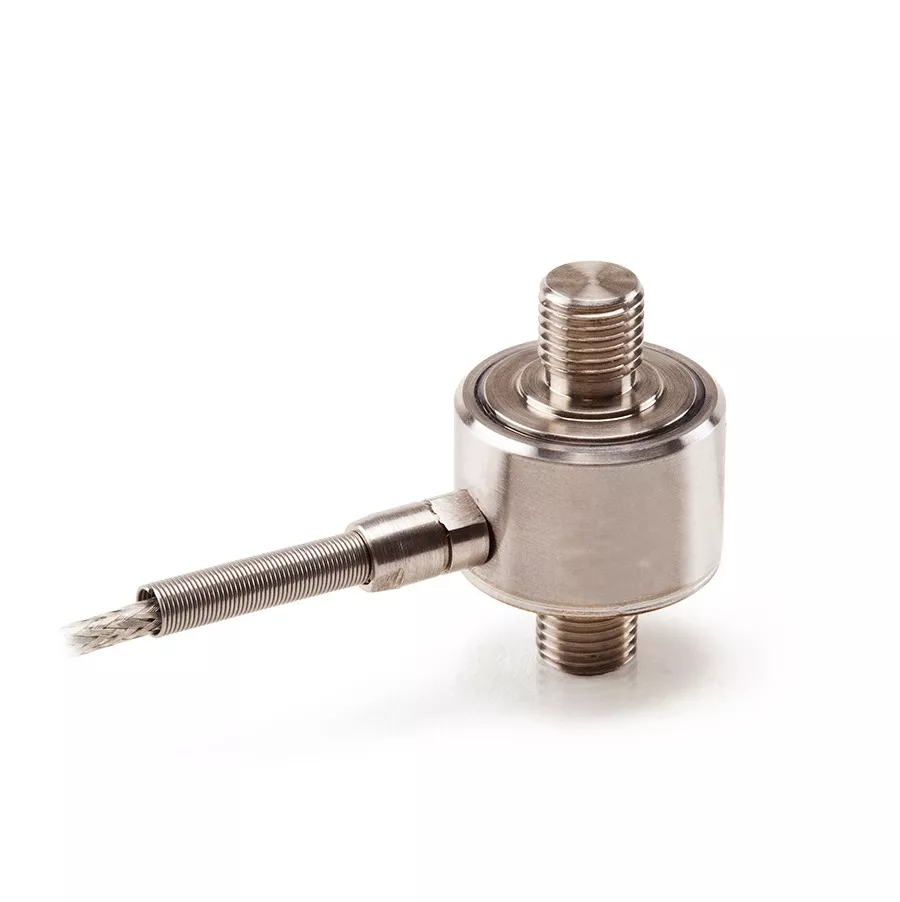

The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.

Stainless steel construction

• Capacity: 0-20KN
• Sensitivity:1.5- 2.0mV/V
• Non-linearity 0.5% F.S.
• Repeatability 0.5% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics, mold assembly;
And other industrial test, measurement and control systems.

Material: 17-4PH stainless steel

Size: High speed, low deflection

• Capacity: 0-2T
• Sensitivity:1.0- 2.0±0.05mV/V
• Non-linearity 0.5% F.S.
• Repeatability 0.3% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized
