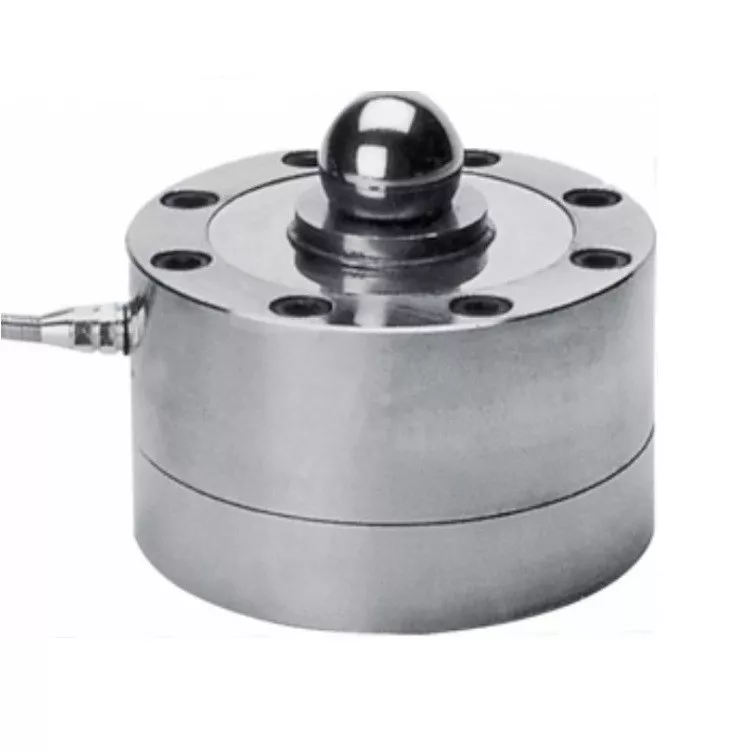

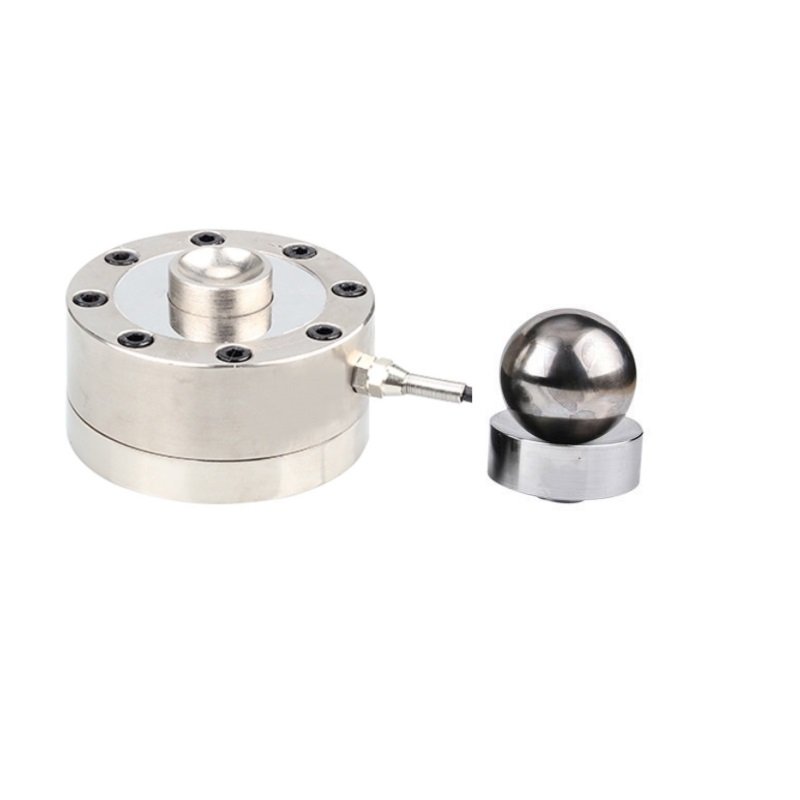

LC506 Torsional Ring Load Cell Compression Button Type Load Cell
Dimension Unit: mm
Technical Parameter:
The ZMLB is spoke type load cell designed for both tension and compression force measurement. Nickel plated alloy steel can make protection class achieve IP67. The shear beam structure gives load cell high performance of linearity. Zhimin offers ODM&OEM service.
Features:
Capacity 200kg-60t
High accuracy
Low profile
Nickel plated alloy steel IP67
Optional features:
Hermetically sealed available
KWT1D63 sensor is a tensile and compressive force transducers with good performance and great overload capacity, it has high-precision embedded integrated circuit, when the load on the force sensor can be collected and solved in real time.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robotics, mold assembly;And other industrial test, measurement and control systems.
Material: stainless steel
Size: Spoke type
Product description:
Capacity ：10kg~50Ton
Alloy Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
Widely used in electronic truck scales hopper scales, automotive testing equipment other electronic weighing or force measuring fields
KWT1D60 is a kind of high accuracy and overload capacity load cell. The product has a built-in embedded circuit for real-time data accquisition and calculation, and can measure the value of force fastly. This series can also match the measuring requirements of multiple range.
- NS-TH3 series spoke type load cell structure;
- Simple, robust and resistant to lateral forces and eccentric loads
- Low center of gravity and easy installation;
- It is widely used in automatic control systems as automatic control components such as weighing and force measurement.
- NS-TH17 series load cells are compact and low in height
- Two forms of rubber seal and welded seal can be selected, all stainless steel material, anti-corrosion;
- It is suitable for platform scales, truck scales, rail scales and automatic measurement and control fields.
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
It can be applied to testing machines, truck scales, hopper scales, various industrial weighing systems, etc.
Material: stainless steel, alloy steel
Size: Large range Other ranges can be customized
- NS-TH18 series load cells are compact in structure, low in height, and have good eccentric load resistance
- It is an upgraded product of TH17 series
- Used in automotive press-fitting, automation equipment and other fields
