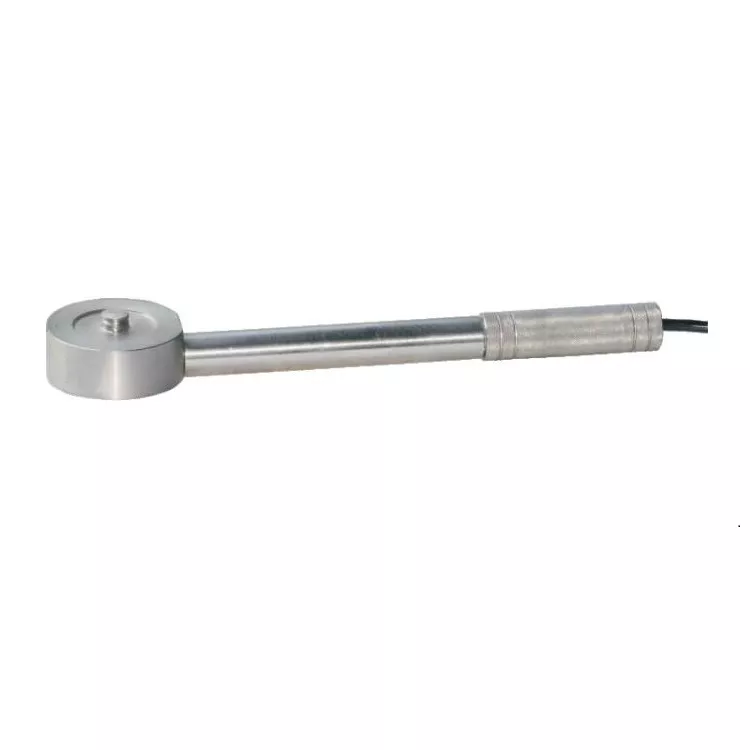

LC5019 Best Load Cells Miniature Load Cell Buttons Pressure Sensor
Application:
Portable small space compression devices;

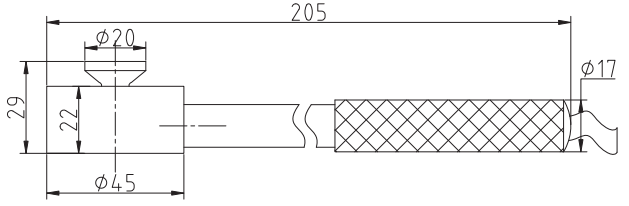

Dimension:
Technical Data:
Button load cell is a compression load cell with a diameter 10mm. It has capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell can be used for 3C product testing, medical testing, automated equipment testing, etc. It can also be customized for the high-temperature working condition.
Subminiature load cell is a button type load cell with a diameter only 8mm. It is made of stainless steel, with protection class IP66, Φ2*2m cable. Subminiature load cell can be used for keyboard button hand-feeling test, force tester, automated assembly of new energy products and automotive products. It can be customized for the high-temperature working condition such as injection moulding, extrusion and other manufacturing processes.
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAA-ADA-A current is 3kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy of aviation standard.
LAA-ADA-A load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
SC201은 고압축 응용 분야에 적합하도록 설계된 원형 버튼형 로드셀입니다. 합금강으로 제작된 SC201은 견고하며, 방수 커넥터로 밀봉되어 혹독한 환경에도 설치 가능합니다. 슬림한 바디로 뛰어난 신뢰성과 일관된 정확도를 제공합니다.
The SC201 is a round button load cell designed for heavy compressive applications. Made of alloy steel, the SC201 is rugged and sealed with a water proof connector for installation in harsh environments. It provides great reliability and consistent accuracy is a low profile body.
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C3/LTU-C3 start from 5kg to 50kg.The measuring accuracy is 0.2%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C3/LTU-C3 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
SC201GCL은 공간이 제한된 압축 계량 분야에서 널리 사용되는 원형 버튼 로드셀입니다. 독특하고 컴팩트한 디자인으로 최대 IP67 등급의 혹독한 환경에서도 측정이 가능합니다. 부식성 환경에 대한 내구성을 높이기 위해 스테인리스 스틸 소재로도 제작됩니다.
The SC201GCL is a round button load cell popular is compression weighing applications where space is limited. Its unique and compact design allow for measurements is harsh environments with ratings up to IP67. It is also available in stainless steel for added resistance to corrosive environments.
