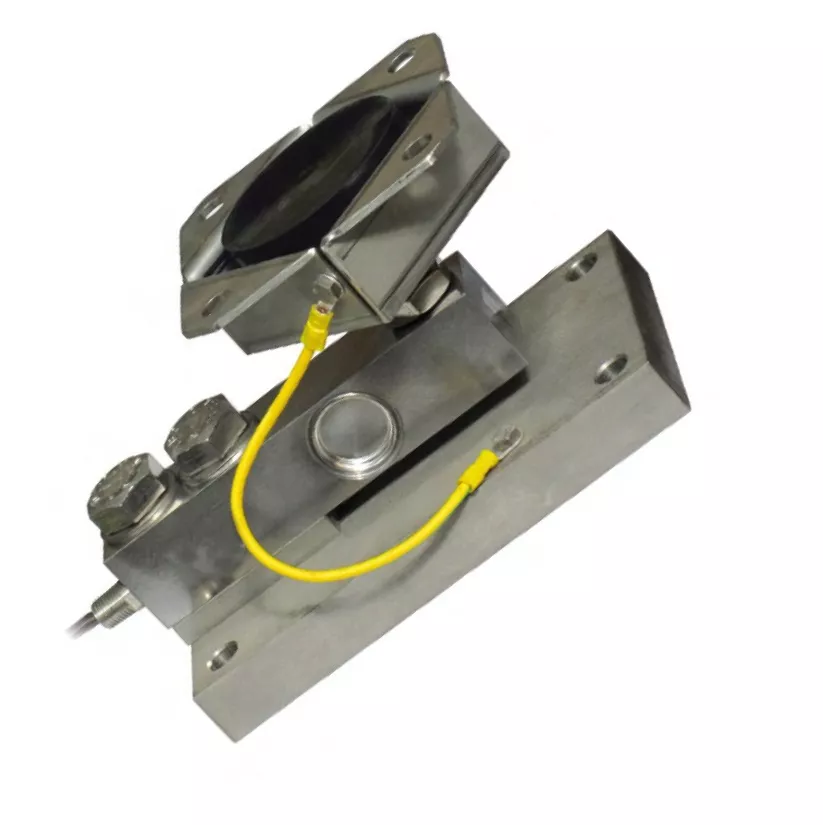

LC348M2 13ton Sqb-a Heave Duty Single Ended Shear Beam Load Cell for Scale Systems

Product Description

LC348M2-2

Features & Applications:

◎During the transport and installation the lock (*) must touch under the load cell. After installation, move the lock away from the load cell;

◎Interconnect the plates to the earthing;

◎In case of structure with four-point support, if one-point does not touch the compression joint, you must proceed to insert a shim before fixing the bolts;

Technical Parameter:

Capacity: 0.5/1/2/3/5t Temp. effect on output: ≤±0.1%F·S/10℃
Rated output: 1.0~2.0±0.05mV/V Operation temp. range: -20℃～+80℃
Non-linearity: ≤±0.3%F·S Input impedance: 350±50Ω
Hysteresis: ≤±0.3%F·S Output impedance: 350±5Ω
Repeatability: ≤±0.3%F·S Safe overload: ≤150%F·S
Creep(30min): ≤±0.1%F·S Insulation: ≥2000MΩ(50VDC)
Zero balance: ≤±1%F·S Recommended excitation: 10V-15V
Temp. effect on zero: ≤±0.1%F·S/10℃ Protection Class: IP67
Net Weight: 7kg

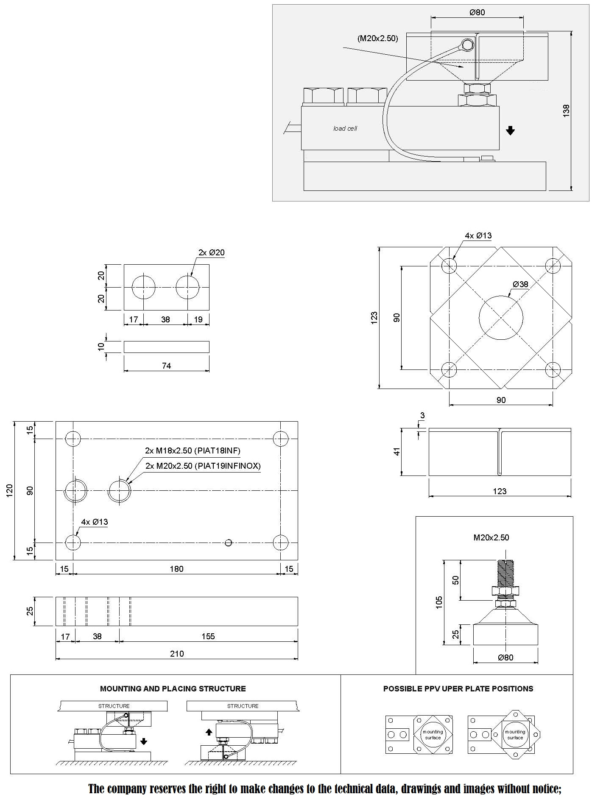

Dimension:LC348M2



Product name LC348M2 13ton Sqb-a  Heave Duty Single Ended Shear Beam Load Cell  for Scale Systems
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
