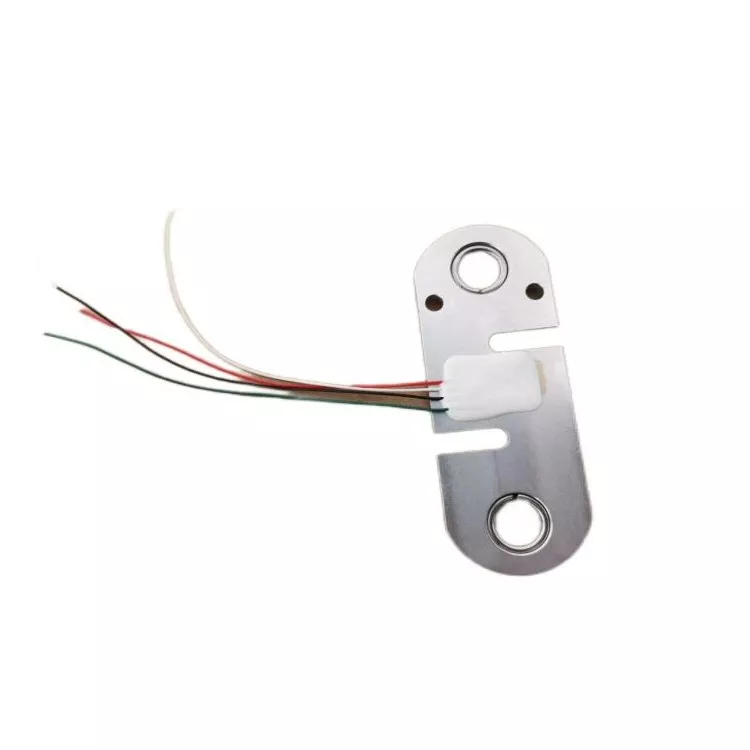

LC2423 Compression Load Cell Tension Load Cells for Crane Scale

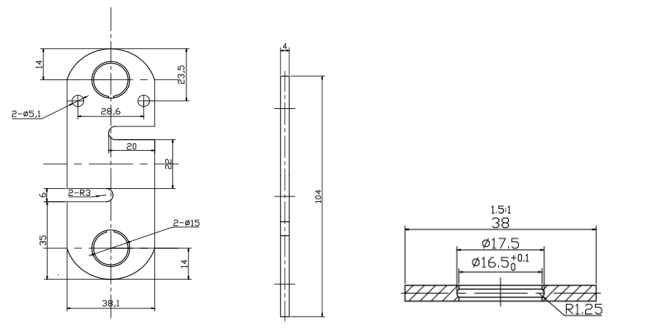

Dimension Unit: mmm
Technical Parameter:
- Capacity: 50kg-7T
- Sensitivity: 2.0~3.0±10% mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-1.5t
- Sensitivity: 2.0 mV/V
- Non-linearity 0.031% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.1% F.S.
- Repeatability 0.05% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
SC301A는 축방향 하중 측정을 위해 설계된 소형 S형 인장 및 압축 로드셀입니다. 다른 S형 로드셀과 마찬가지로, SC301A는 상단과 하단에 장착 지점이 있어 공간이 제한된 설비에도 쉽게 설치할 수 있습니다.
The SC301A is a compact S-type tension and compression load cell built to measure axial loads. Like other S-type load cells, the SC301A has mounting point on the top and bottom for easy installation in installations with limited space.
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.05% F.S.
- Repeatability 0.03% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-50kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
