Dimension
Parameters
Features and Applications

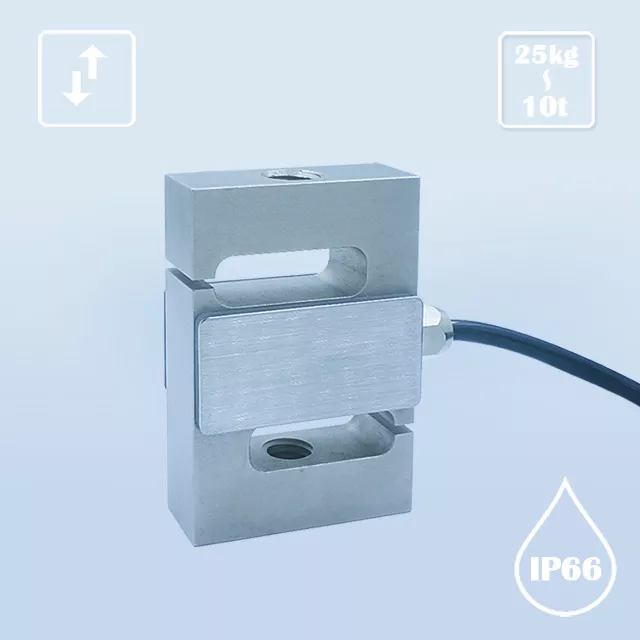

S-type sensor with high accuracy;
Easy to install;
Tension and compression
Mainly used for pushing, pulling force gauge, hopper scale, various industrial weighing systems, etc.
Load Direction
Wiring Code
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.
3t Alloy Steel Tension Compression Force Sensor FA904 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA904 can be used to measure force of tension and compression 3t capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min) and Repeatability both ≤0.1%F.S., its Non-linearity and Hysteresis both ≤0.2%F.S..
100~150T The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA120D which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120D can be used to measure load 150T capacity, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.1%F.S..
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
5-100kN Stainless Steel Tension Compression Force Sensor FA411 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA411 can be used to measure tension and compression force 5kN,10kN,20kN,50kN and 100kN capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min),Non-linearity and Hysteresis all ≤0.2%F.S., its Repeatability ≤0.1%F.S..
50kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 50kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.05%F.S., and its Hysteresis ≤0.05%F.S..
50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
