Dimension
Parameters

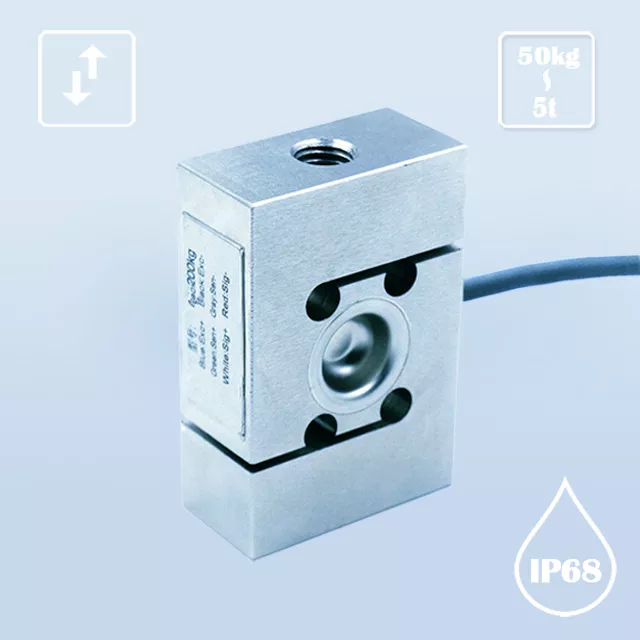

Features and Applications
Low height, small deformation and high protection level;
stainless steel material;
Tension and compression
Protection grade IP68 can be used in harsh environments;
Mainly used in push and pull gauges, hopper scales, various industrial weighing systems.
Load Direction
Wiring Code
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
5-100kN Stainless Steel Tension Compression Force Sensor FA411 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA411 can be used to measure tension and compression force 5kN,10kN,20kN,50kN and 100kN capacity, its Rated output range is 1.0±10%mV/V, its Creep(30min),Non-linearity and Hysteresis all ≤0.2%F.S., its Repeatability ≤0.1%F.S..
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
1-20kg Stainless steel Tension Compression Force Sensor FA401 is a model of Tension Compression Force Sensor, it belongs to our brand FIBOS FA4-Series, FA401 can be used to measure load 1kg, 2kg, 5kg, 10kg and 20kg capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S., its Cable size is ⌀2x3000mm.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
50,100,200,300,500kg Or Customized Tension Compression Force Sensor FA130A belongs to FA130 which is in Tension Compression Force Sensor category in our brand FIBOS FA1-Series, FA130A can be used to measure tension and compression force ranges from 50kg,100kg,200kg,300kg up to 500kg or customized capacity.
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
| Model Number: | BHC | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3-50t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
