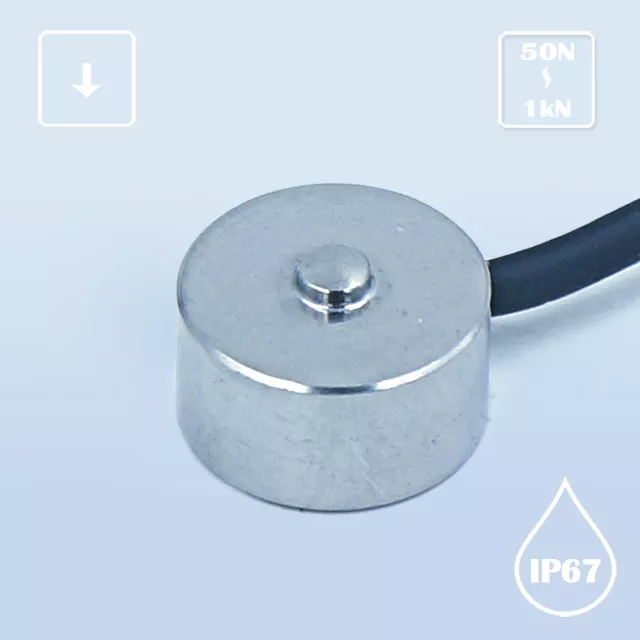

T103 Compression Load Cell

● Features and Applications

Low height, small deformation, small size;

Stainless steel material, protection grade: IP67, customizable IP68;

High temperature performance can be customized for injection molding, extrusion and other manufacturing processes;

Automotive press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing,

In the field of robots, mold assembly and other industrial test, measurement and control systems;

High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

● Dimension

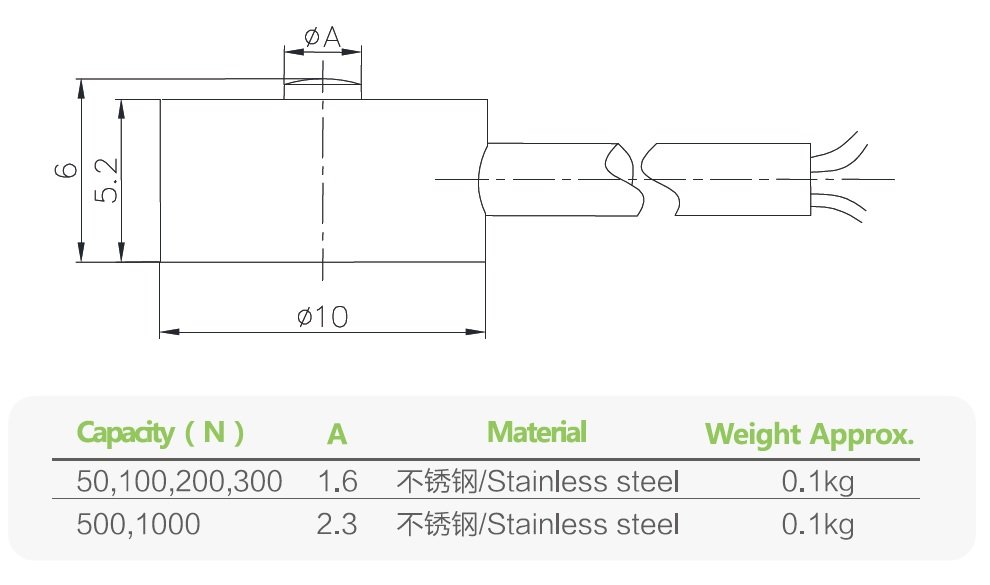

T103 installation dimensions





● Parameter

Capacity 50,100,200,300,500,1000 N
Sensitivity 1.0 ± 20 ％ mV / V
Zero Balance ± 2% F.S.
Non-linearity 0.5% F.S.
Hysteresis Error 0.2% F.S.
Repetition 0.2% F.S.
Creep (30 min) 0.2% F.S.
Temp. Effect on sensitivity (TKc) 0.05% F.S./10℃
Temp. Effect on zero balance (TKo) 0.05% F.S./10℃
Input Resistance 800 ~ 1100 Ω
Output Resistance 800 ~ 1100Ω
Insulating Resistance ≥5000MΩ / 100VDC
Excitation Voltage 5 ~ 12 V
Max. Excitation Voltage 15 V
Compensation Range -10 ~ 60 ℃
Service Temperature Range -20 ~ 80 ℃
Limit load (EL) 150% F.S.
Breaking load (Ed) 200% F.S.
Cable Size φ2 × 4000 mm
Material (Measuring element) Stainless steel
Weight (G), approx. 28g
IP Class IP 67 (customizable)

● Load Direction      ● Wiring Code

T101-2

Wiring 1
