Widely used in medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
It is also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales and so on.
Material: stainless steel, alloy steel
Size: Flanged, Range can be customized
Dimension
Parameters
Features and Applications

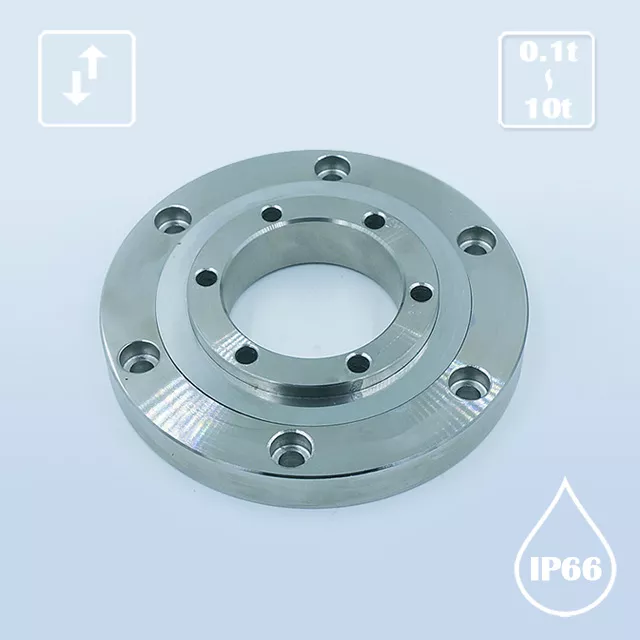

Flange sensor;
Stainless steel / alloy steel material;
Tension and compression bidirectional, range can be customized;
Medical testing, robotics, mold assembly and other industrial test, measurement and control systems;
Also suitable for various industrial weighing systems such as testing machines, truck scales, hopper scales, etc .;
Load Direction
Wiring Code
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
100-250t Spoke Type Load Cell FA120D belongs to FA120 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, FA120D can be used to measure load 100t,150t,200t and 250t capacity, its Input impedance range is 780±20Ω and its Output impedance range is 700±10Ω, its Zero Balance range is ±1%F.S..
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
10,20,50,100,200kg Or Customized Tension Compression Force Sensor FA401A is a model of Tension Compression Force Sensor, it belongs to FA401 in our brand FIBOS FA4-Series, it can be used to measure load 10kg, 20kg, 50kg, 100kg and 200kg or customized capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.1%F.S. or can be customized.
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..
500N 1000N 1500N 2500N 5000N Brake Pressure Measuring Tension Compression Force Sensor FA901 is a model of our brand FIBOS FA9-Series, Tension Compression Force Sensor FA901 can be used to measure force ranges from 500N,1000N,1500N,2500N up to 5000N capacity, its Rated output range is 1.5±10%mV/V, its Zero Balance range is ±0.02mV/V.
50,100,500,1000,5000kg Or Customized Tension Compression Force Sensor FA130C belongs to FA130 which is in Tension Compression Force Sensor category of our brand FIBOS FA1-Series. FA130C can be used to measure tension&compression force ranges from 50kg,100kg,500kg,1000kg and 5000kg or customized capacity.
