NS-NJ12 series static torque sensor

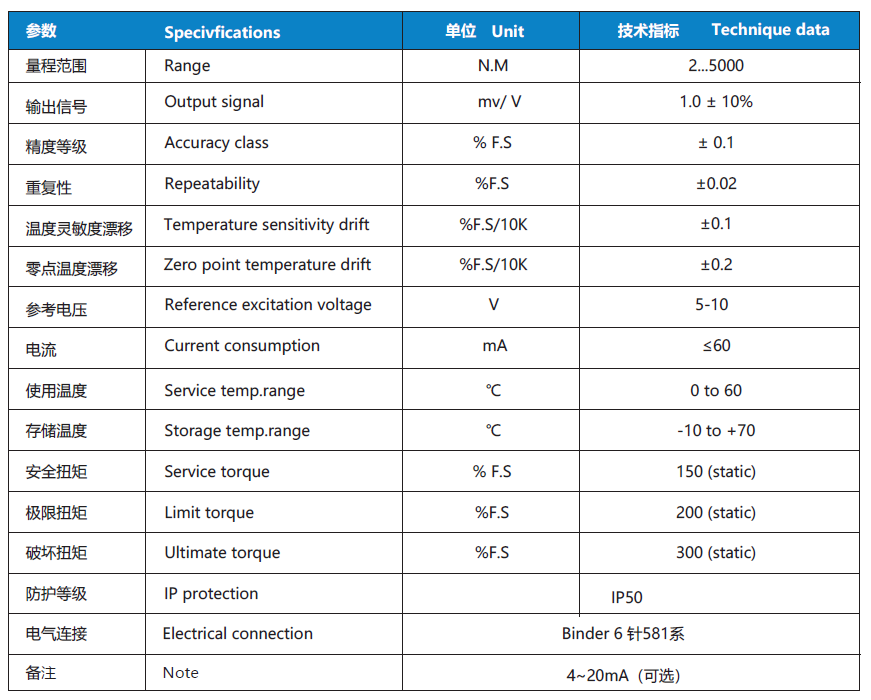

Parameter
Dimensions
Wiring Definition
Selection table
With the characteristics of double flange connection, the TJN-3 static torque measurement sensor is easy to install. Suitable for the measurement and control of static and discontinuous rotation torque.
- 3 components / 6 components
- Range: Fxyz 1~10kN; 1~10kN; 5~50kN;
- Output: 0~5/10V, 4~20mA optional
- Accuracy: 0.5%F.S
Widely used for torque value measurement of static and discontinuous rotation, professional screwdriver, screw tightening, etc .; Compact structure for easy installation;
Material: Alloy steel
Features: Strong bending moment Long frequency life
Static Torque Sensor
D 41.2mm*H 25mm
Capacity: 1,2,3,5,10,20,30, 50,100N.m
Category: Static Reaction Torque Sensor
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.
Product description:
Capacity ：0-10N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP65.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Suitable for the measurement and control of static and discontinuous rotation torque.
Product description:
Capacity ：5-50~5000N.m
Defend grade: IP67.
Type: torque type
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.

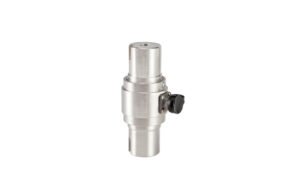

Static Torque Sensor
D 37.6mm*H 50.8mm
Capacity: 1,2,3,5,6,10,20,30,50,100,150N.m
Category: Static Reaction Torque Sensor
Product description:
Capacity ：1~10000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Suitable for measuring the torque of static and discontinuous rotation.
