Pull pressure threaded in line force sensor NF205
Features
Pull pressure threaded in line force sensor NF205 is a tension and compression type load cell. The threaded in line force sensor has various practical range : 0-0.5KN,0-1KN,0-1.5KN,0-2KN,0-3KN,0-5KN. Users can choose the appropriate pull pressure sensor range according to the actual situation.
- Small deformation
- Good long-term stability
- Stainless steel
Applications
- Automatic assembly
- 3C product testing
- New energy product assembly
Mounting Dimension

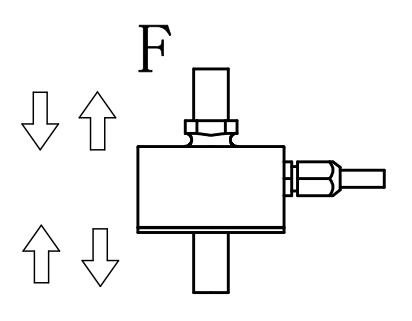

Load Direction

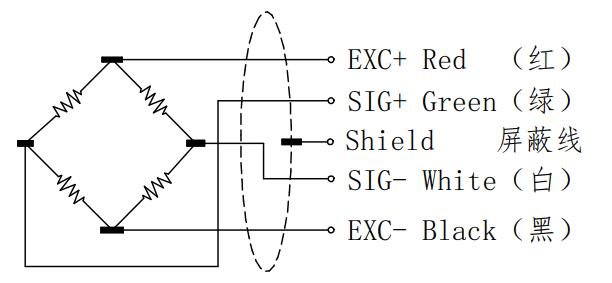

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 0.5,1,1.5,2,3,5kN |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.20%F.S. |
| Hysteresis | 0.10%F.S. |
| Repeatability | 0.10%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 700±10Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ4×3000mm |
