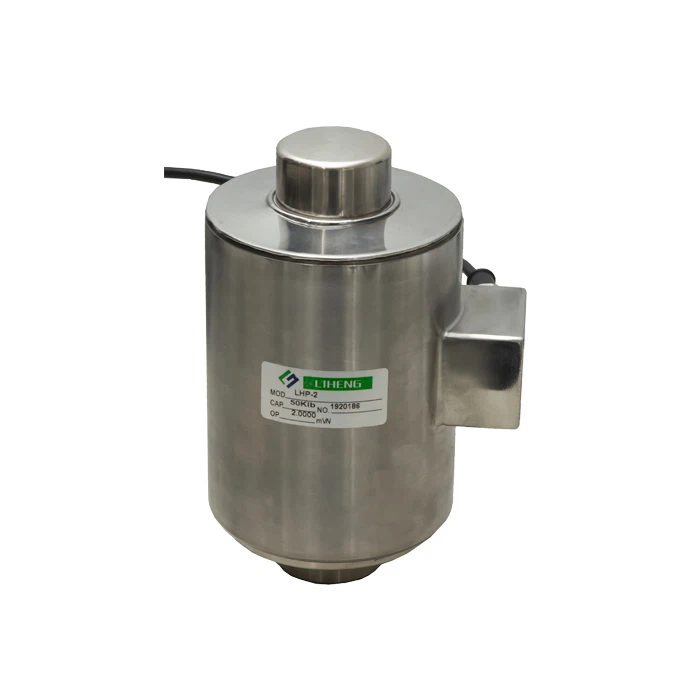

LHP-1 Compression Load Cell
Product Introduction
| Material: | Alloy, Stainless |
| Capacity: | 20t-45t |
| Rated Output: | 2mV/V |
| Non Linearity: | ±0.02%F.S. |
| Hysteresis: | ±0.02%F.S. |
| Repeatability: | ±0.01%F.S. |
| Creep (30min): | ±0.02%F.S. |
| Zero Balance: | ±1.00%F.S. |
| Tem.Effect on Zero: | ±0.02%F.S./10℃ |
| Tem.Effect on Output: | ±0.02%F.S./10℃ |
| Input Impendance : | 1150±15Ω |
| Out Impendance: | 1050±5Ω |
| Insulation Impendance: | ≥5000MΩ |
| Excitation Voltage: | 10V (DC/AC) |
| Compensated Tem.Range: | -10℃~+50℃ |
| Service Tem.Range: | -20℃~+60℃ |
| Safe Overload Range: | 120%F.S. |
| Protection Class: | IP68 |
| Cable length: | 12m |
| Wire Code: | Red(Ex+) Black(Ex-) Green(Sig+) White(Sig-) |
| Capacity | Size (mm) | N.W. | |
| t | Klb | SR | kg |
| 20 | 50 | 250.0 | 8.0 |
| 45 | 100 | 355.6 | 8.3 |
