TAS514 Micro S Type Load cell
INTRODUCTION:
- Capacity: 1-100kg
- Sensitivity: 1.0-2.0mV/V
- Non-linearity 0.5% F.S.
- Repeatability 0.3% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
The ZMME is constructed from stainless steel and protected from moisture with an epoxy bonded cover. ZMME is configured for both of compression and tension force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles.
Features:
Capacity 5kg-300kg
Both compression and tension
Compact size
Stainless steel
Optional features:
Hermetically sealed available

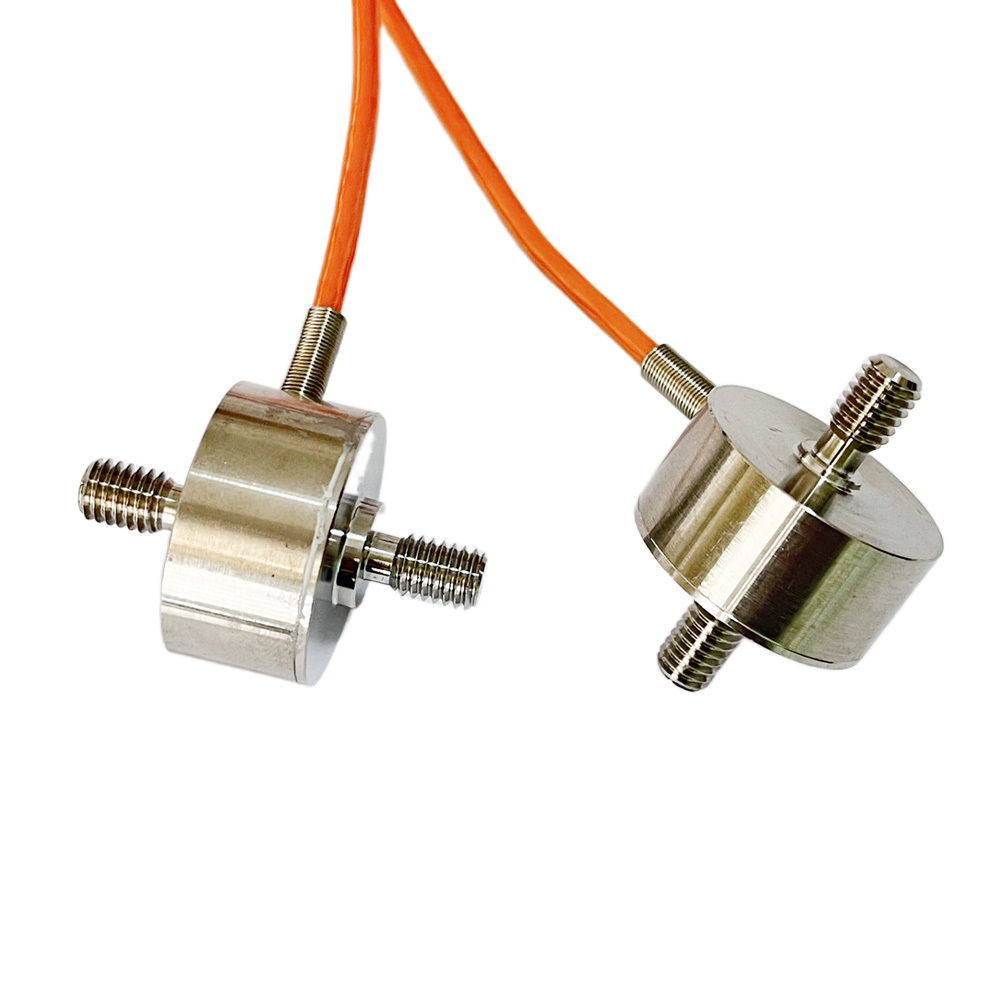

The ZMME-S is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control. The threaded construction enables the ZMME-S to be easily assembled into equipment under test where both tension and compression forces require monitoring.
Features:
Capacity 10kg-500kg
In-line threaded
Micro size
Stainless steel construction
Optional features:
Optional output(4-20mA, 0-5V)
SC913A는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC913A는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 직사각형 프레임과 로드셀 본체에 미리 설치된 받침대가 있어 설치가 간편합니다. 특수 고객 설치를 위해 받침대 없이도 SC913A를 제공합니다.
***SC913에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다***
The SC913A is a half-bridge micro load cell ideal for body scales or low profile applications. The SC913A is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has rectangular frame and feet pre-installed to the load cell body to simplify installation. SC913A is also available without feet for specialized customer installations.
***Mounting assembly/module may be necessary as the SC913 has no mounting holes***
SC929C는 체중계에 적합한 하프 브리지 마이크로 로드셀입니다. SC929C는 최대 50kg의 고용량 제품이지만, 10kg에서 20kg까지 다양한 용량으로 제공되어 특정 사용 사례에 맞게 조정할 수 있습니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편하며, 다른 하프 브리지 마이크로 로드셀과 달리 본체에 장착 구멍이 있어 직접 설치할 수 있습니다.
The SC929C is a half-bridge micro load cell ideal for body scales. The SC929C is high capacity with a maximum of only 50kg but it is also available in a range from 10kg and 20kg so it can be adapted to specific use cases. It also has feet pre-installed to the load cell body to simplify installation and, unlike other half-bridge micro load cells, the SC929C has mounting holes on its body so it can be installed directly.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications.
Advantages of LCT Single Point Load Cells/Miniature Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.These load cells are moment insensitive.
Model LAA-H1/H3 load cells are designed to this “single point/miniature”type and manufactured from high quality aluminum alloy of aviation standard. LAA-H1/H3 oad cells can be used to measure loads range from 150g to 750g with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output)
LAA-H1/H3 load cells are mainly used for pocket scales,kitchen scales,postage scales,portable scales,jewellery scales,small balances,other platform scales and coffee machine weighing systems.
SC635는 SC133의 소형 버전입니다. SC133과 동일한 마이크로 빔 전단 프로파일을 사용하며, 용량도 동일하지만, 소형 적용 분야에 적합하도록 길이가 더 짧습니다. SC635의 단점 중 하나는 각 측면에 장착 구멍이 하나만 있어 설치 시 특별한 고려 사항이 필요할 수 있다는 점입니다.
The SC635 is the smaller variant of the SC133. It is the same micro beam shear profile as the SC133 and also the same capacity but is shorter in length for compact applications. Note that one trade-off of the SC635 is that there is only one mounting hole on each of the sides and may require special consideration when installing.
The S beam load cell provides good restraint to possible movement of the automation and in many cases. The small size gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application. ZMSA is contructed of stainless steel and is potted to IP67 providing excellent protection against moisture and humidity.
Features:
Capacity 1kg-100kg
Both tension and compression
Rational outputs
Stainless steel
Optional features:
Hermetically sealed available
SC928NB는 체중계 또는 저평형 어플리케이션에 적합한 하프 브리지 마이크로 로드셀입니다. SC928NB는 최대 5kg의 저용량으로 주방이나 데스크톱 어플리케이션에 적합합니다. 또한, 로드셀 본체에 받침대가 미리 설치되어 있어 설치가 간편합니다. ***SC928NB에는 장착 구멍이 없으므로 장착 어셈블리/모듈이 필요할 수 있습니다.***
The SC928NB is a half-bridge micro load cell ideal for body scales or low profile applications. The SC928NB is low capacity with a maximum of only 5kg so it is best for kitchen or desktop applications. It also has feet pre-installed to the load cell body to simplify installation.
***Mounting assembly/module may be necessary as the SC928NB has no mounting holes***
SC611CD는 SC133 및 SC635와 유사한 소형 로드셀입니다. SC133보다 작고, 빔 프로파일은 동일하지만 길이가 더 짧아 공간 제약이 있는 어플리케이션에 적합합니다. 또한, SC133과 동일한 용량으로 제공되며 최대 50kg까지 측정 가능합니다.
The SC611CD is a miniature load cell that is similar to the SC133 and SC635. It smaller than SC133, it has the same beam profile but is also shorter making it ideal for the space constrained applications. It is also available in the the same capacities as the SC133 with a maximum of 50kg.
SC902는 전자 저울 및 기타 고정밀 전자 계량 장치에 적합한 소형 체중계용 로드셀입니다. SC902는 뛰어난 신뢰성을 위해 합금강 로드셀로 제작되었으며, 컴팩트한 디자인으로 손이 닿기 어려운 곳에도 설치가 가능합니다. 또한, 간편한 설치를 위해 받침대가 미리 설치되어 있습니다.
This SC902 is a body scale weight miniature load cell ideal for electronic scale and other high accuracy electronic weighing devices. SC902 is made of alloy steel load cell for great reliability and can be installed in hard to reach area because of its compact form factor. The SC902 also has foot pre-installed for simplified installation.
SC639M은 저용량에 적합한 소형 로드셀입니다. 특수한 뼈대 구조를 갖추고 있어 소규모 응용 분야에서 더 작은 용량을 처리할 수 있습니다. 특수 구조로 인해 최대 용량은 2kg에 불과합니다.
The SC639M is a miniature load cell that is ideal for low capacity. It has a special bone structure that allows it handle smaller capacities for small applications. Note that because of its special structure, its maximum capacity is only 2KG
